Wiring Quick Start

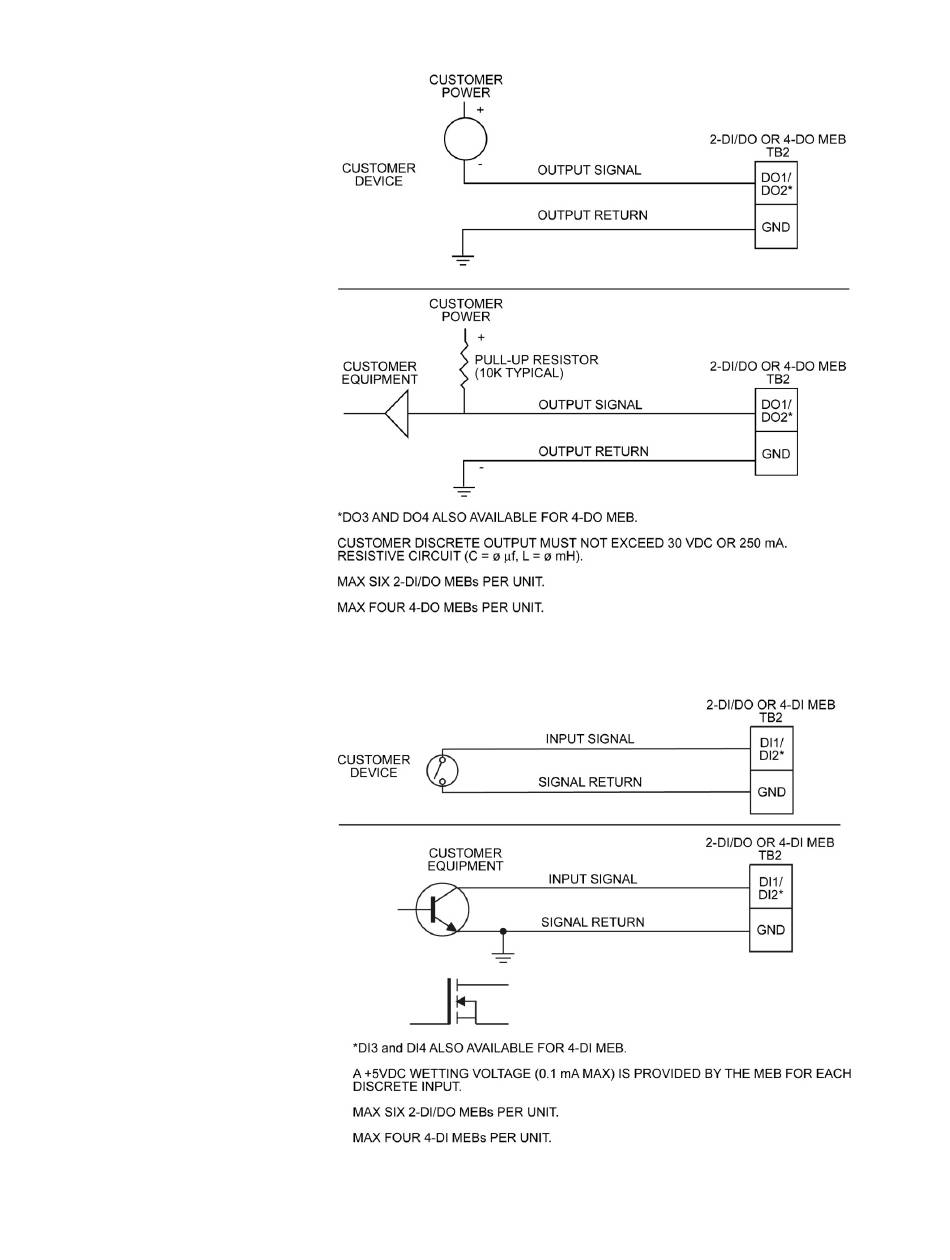

Figure D–31. Typical discrete output wiring for 2-DI/DO or 4-DO MEB
Figure D–32. Typical discrete input wiring for 2-DI/DO or 4-DI MEB
Thermo Fisher Scientific
AutoPILOT PRO Flow Computer User Guide D-27
