Thermo Scientific Orion Star A223 Instruction Sheet

English
RDO /
DO

Preparation

Power Source
1. Power adapter (sold separately)
a. Select the appropriate wall socket plug plate.
b Slide off the clear plastic cover from the plug plate.
c. Slide the plug plate into the groove on the back of the
power adapter.
d. Connect the power adapter to the meter and power
outlet.
2. Batteries (included with meter)
a. Select four AA alkaline batteries.
b. Confirm that the meter is powered off.

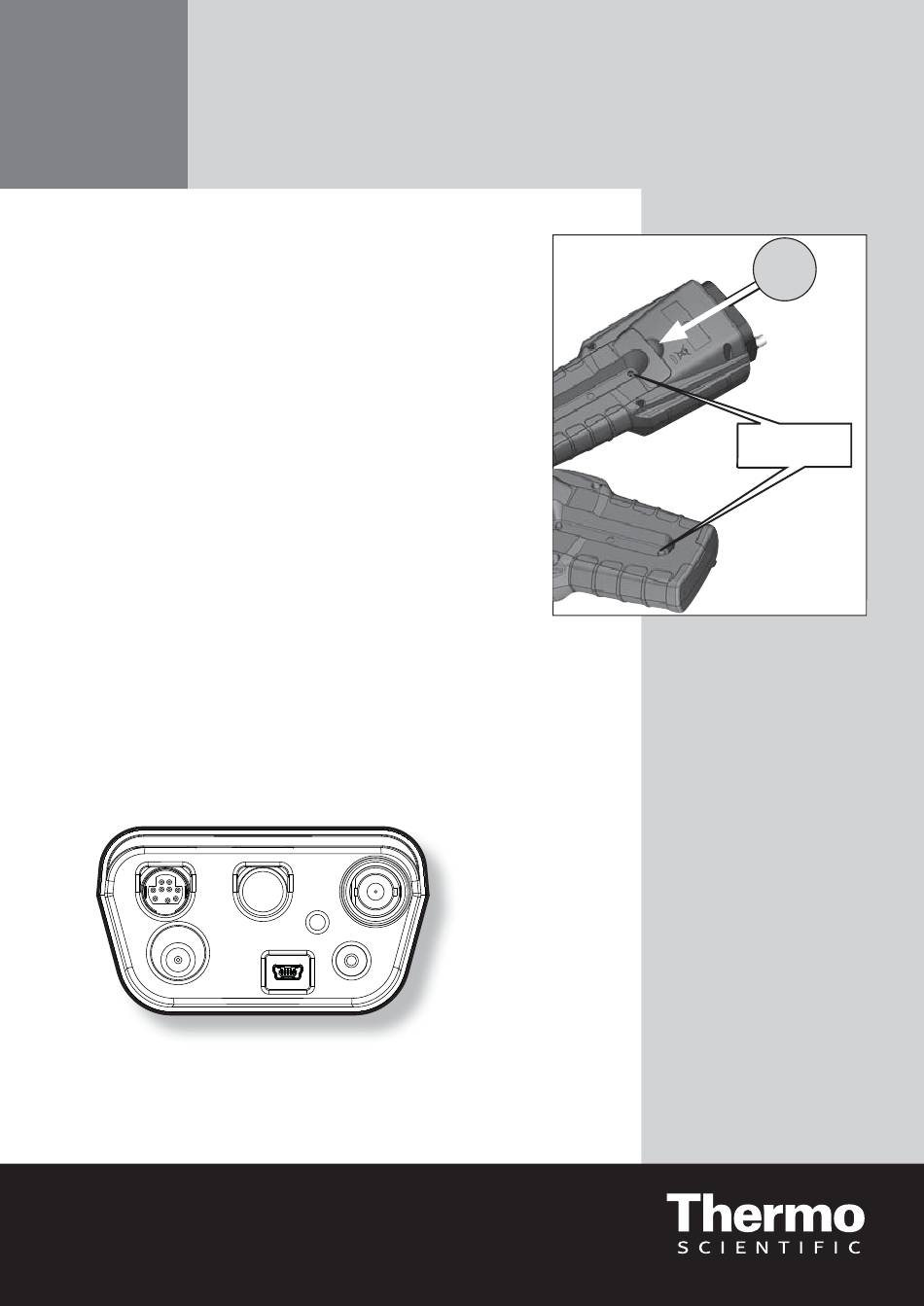

c. Remove the battery compartment cover – loosen the
screws holding the battery cover, release the top portion
of the battery cover from the meter (use a coin or your
finger) and release the bottom portion of the battery cover.
d. Orientate the batteries as shown in the battery
compartment housing and insert batteries.
e. Replace the battery compartment cover and screws.

Electrodes and Other Connections

1. Prepare the RDO optical dissolved oxygen probe or polarographic dissolved
oxygen probe and any other applicable electrodes according to the directions in
the probe user guide.
2. Connect the appropriate items as labeled on the meter and
as shown in the figure below:
DO/
RDO
POWER
For additional information on meter setup and operation, refer to the reference guide.
The reference guide is on the included CD and available at
www.thermoscientific.com/water.
Thermo Scientific Orion Star A223 and
Star A323 Portable RDO/DO Meter
Instruction Sheet
ATC/
COND
REF
USB
RS232
Orion Star A223 &
Star A323 Portable
Use coin
or finger
to lift.
Remove screws
