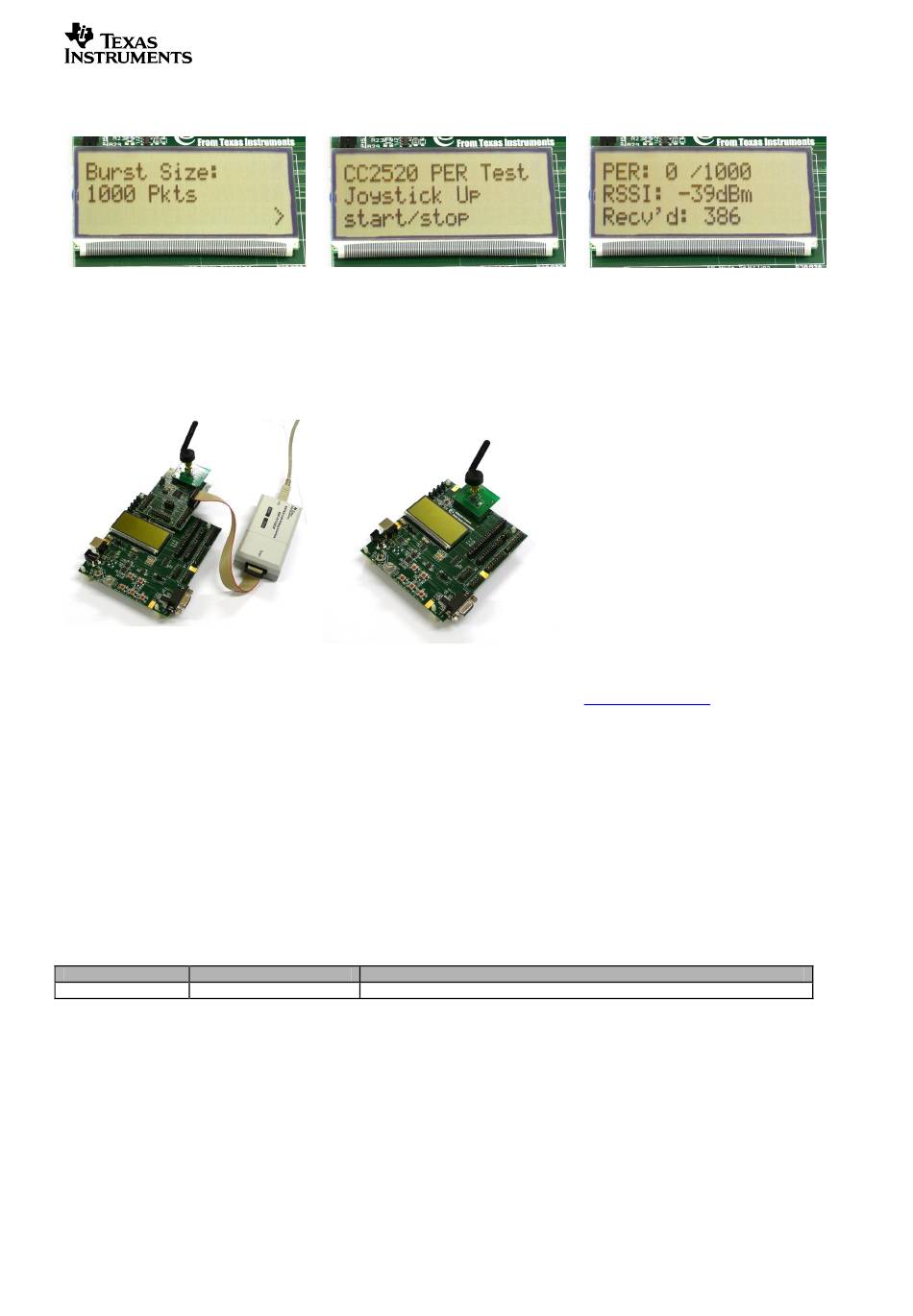

8. Select Burst Size
Select burst size by navigating the
joystick, either 1000, 10K, 100K or 1M
packets. Confirm the selection with
Button 1.
11. Download your own SW
In order to program the MSP430 MCU on
the CCMSP-EM430F2618 board the
MSP430 Debug Interface is needed.
Connect the MSP430 debug interface to
JTAG connector P12 on the CCMSP-
EM430F2618. Connect the debug
interface to the PC with a USB cable.
Document History
Revision
Date
-
2007-12-14
9. PER test transmitter
The transmitter is now configured for the
PER test. The PER test is started by
moving the joystick UP. The transmitter
will display the number of packets sent
during the PER test. The PER test is
stopped by moving the joystick UP again.
12. SmartRF Studio
In order to use the SmartRF Studio the
CC2520EM is connected directly to the
SmartRf05EB.
SmartRF Studio can be downloaded from
the kit's website (See the next section).
After downloading install the program.
Connect the EB to the PC with a USB
cable.
Description/Changes
Initial release
page 2
10. PER test receiver
The PER test receiver will display the
total PER (calculated based on the
received sequence numbers), and
moving average RSSI value on the
display. It will also display the number of
packets received during the PER test.
13. Documentation
Hardware
A comprehensive description of the
hardware included in the CC2520
Development kit is found in the
CC2520DK_Users_Manual.
Software
The PER tester and other software
examples are documented in the
CC2520_Software_Examples_Users_Gui
de document. This document also
describes how to download the
application to the MSP microcontroller on
the CCMSP-EM430F2618.
Kit website
The user manuals are found on the
CC2520DK website:
www.ti.com/cc2520dk
SWRU139
