System Menue (SYS)

The system menue contains the following items:
Display Designation
Information
Reset
Return
6.6.1 Information (inFo)
The following device information is available in the system menue.
Display Designation
Hardware version 1 (HW1)
Hardware version 2 (HW2)
Software version 1 (SW1)
Software version 2 (SW2)
Return
Due to the limited number of alphanumerical segments on the display, hardware and soft-
ware versions are split into two separate items, and serial number into four items.
6.6.2 Reset to factory settings (rES)
You can reset the device to the configuration as delivered with the menue item "Reset"
(rES). When the menue item is selected the entry points to "-rEt-". To trigger the func-
tion go to "YES" with one of the arrow buttons and confirm with the middle button. This ex-
tra step prevents any unintentional reset while navigating the menue.
"donE" appears on the display to confirm that the device has been reset to factory settings
and the device switches back to the menue item "Reset" (rES). The factory reset does not
affect the zero point adjustment.
Display Designation
Return
Confirm (yes)
Table 16: Parameter list for resetting the device to factory settings
BA_060 Rev 1B6 Pressure transmitter PASCAL CS
Description
Display of Hardware and software version, serial number
Reset
Return to "SYS"

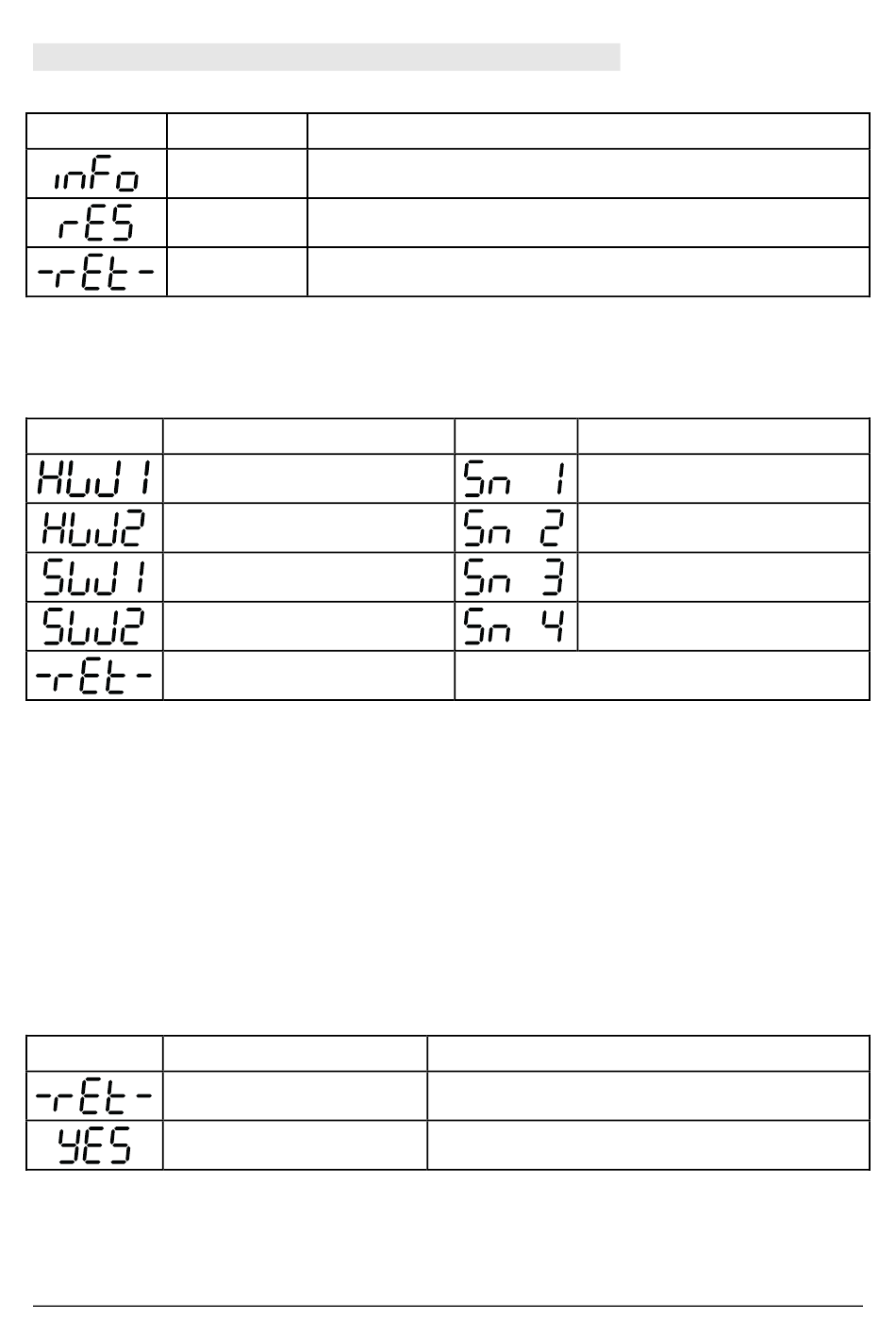

Table 14: The items in the system menue
Table 15: Menue items in the information menue
Display Designation
Serial number 1 (Sn 1)
Serial number 2 (Sn 2)
Serial number 3 (Sn 3)
Serial number 4 (Sn 4)
Return to "inFo"
Description
Return to "rES"
Resetting the device to factory settings
