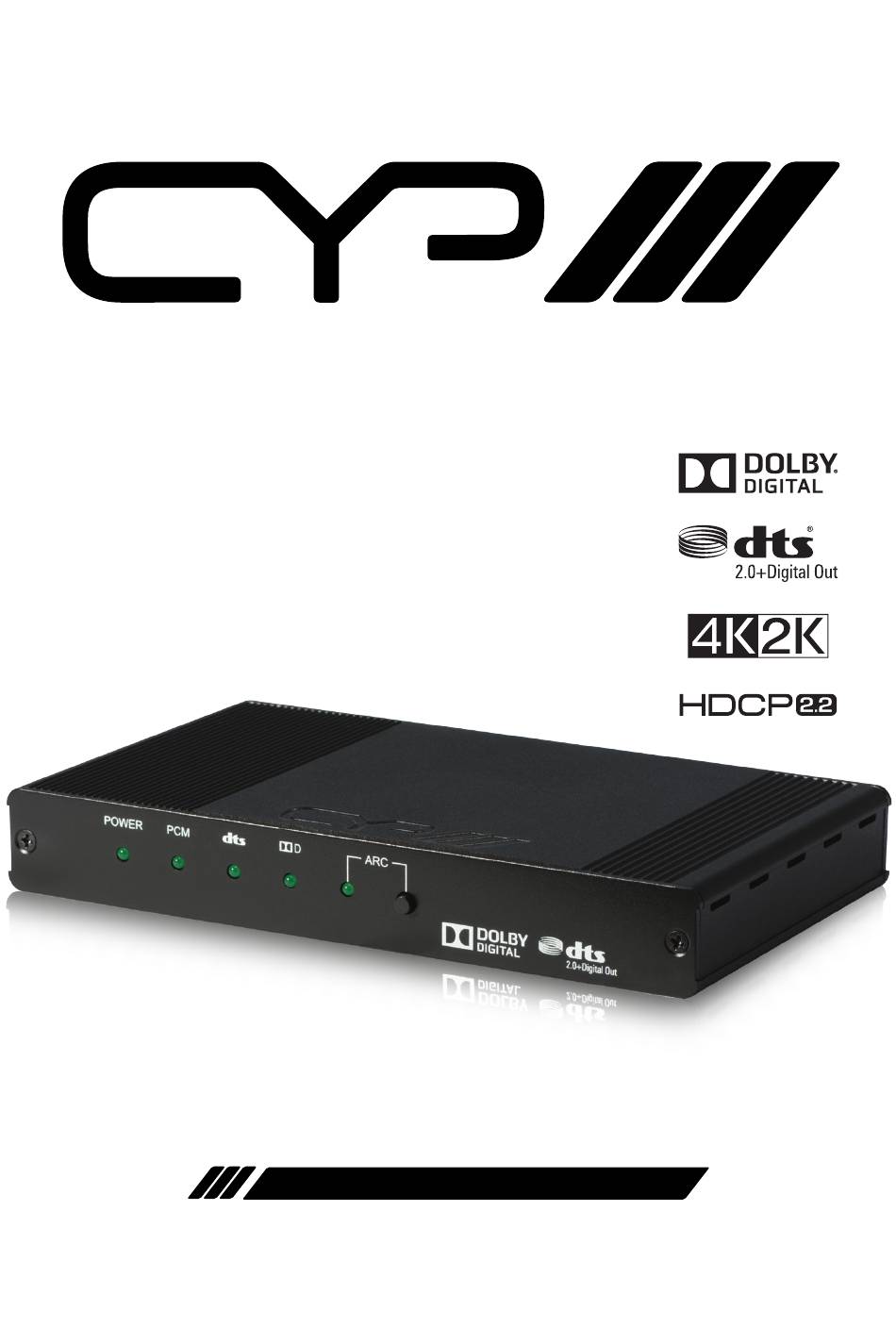

- Page 1 AU-1H1DD-4K22 HDMI Audio De-Embedder with Dolby Digital & DTS Decoder (4K,HDCP2.2, HDMI2.0) OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 8 7. Connection Diagram ......10 8. Specifications ........11 8.1 Technical Specifications ......11 8.2 Video Resolutions ........12 8.3 Audio Support Specification ....13... -
Page 6: Introduction

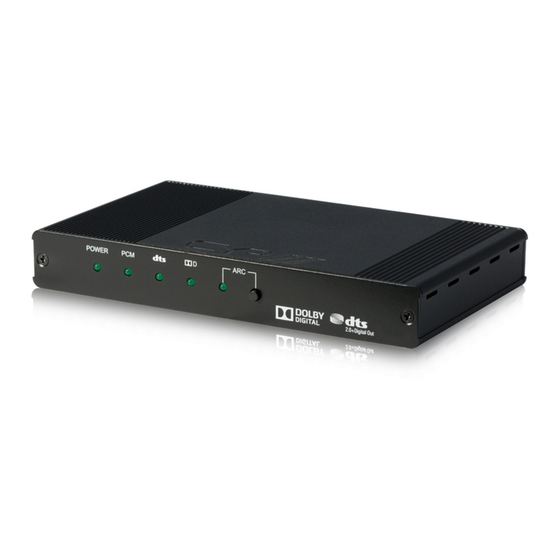

1. INTRODUCTION The AU-1H1DD-4K22 is an advanced solution for de-embedding and down-mixing audio signals from the HDMI input (up to Dolby® Digital and DTS® 2.0+Digital Out). Connect the AU-1H1DD between the source and your display via HDMI, and select 2CH LPCM or bypass. -
Page 7: Features
5. FEATURES HDCP 2.2, HDMI2.0, and DVI compatible Built-in Dolby Digital Decoder Built-in DTS 2.0+Digital Out Decoder Integrated digital interpolator filter and Digital-to-Analog Converter (DAC) Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 4096×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@50/60 (YUV444) Supports simultaneous audio outputs on HDMI, analogue L/R, Coaxial and Optical Supports Dolby Digital sampling rates up to 48kHz Supports DTS sampling rates up to 96kHz... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER POWER: This LED will illuminate when the unit is connected to an active power supply. PCM LED: This LED will illuminate when the audio source is encoded in LPCM 2CH audio format. DTS LED: This LED will illuminate when the audio source is encoded in DTS 2.0+Digital Out audio format. - Page 9 L/R OUTPUT: Connect to the analogue line level input of an amplifier or active speakers. COAX OUTPUT: Connect to the digital optical input of an AV receiver. OPTICAL OUTPUT: Connect to the digital coaxial input of an AV receiver. HDMI AUDIO BYPASS/2CH: Use this switch to select the audio format of the HDMI output.
-
Page 10: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply AUDIO OUT HDMI IN HDMI OUT HDMI SPDIF EDID SERVICE AUDIO DC 5V COAX BYPASS/ BYPASS/ STD/ OPTICAL HDMI Bypass Analogue Stereo Coaxial Digital Optical Digital Output Audio Output Audio Output Active Speakers AV Receiver... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 600 MHz/6 Gbps Input Ports 1×HDMI, 1×USB (Service only) Output Ports 1×HDMI, 1×Coaxial, 1×Optical, 1×L/R (2 RCA) HDMI Cable Length Input: 10m@1080p, 3m@4K2K Output: 10m@1080p, 3m@4K2K Power Supply 5 V/2.6 A DC(US/EU standards, CE/FCC/UL certified) ESD Protection Human body model:... -
Page 12: Video Resolutions
8.2 Video Resolutions HDMI/DVI RESOLUTIONS INPUT OUTPUT 640×480@60/72/75/85 720×400@85 800×600@56/60/72/75/85 1024×768@60/70/75/85 1280×720@60 1280×768@60/75/85 1280×800@60 1360×768@60 1440×900@60 1600×900@60 1600×1200@60 1920×1080@60 ... -
Page 13: Audio Support Specification
8.3 Audio Support Specification Output Level Crosstalk Input Level/ Frequency Freq. Output Vrms/db±10% THD+N Response SNR >90db <-90dB Analog 2 Vrms < 0.01% ±1 dBFS >104dB <-110dB HDMI Coaxial 0 dB < 0.00001% ±1 dBFS >141dB <-164dB 0dB/1kHz Optical 0 dB <... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protectionl HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 16 CIE-Group Ltd. 3 Widdowson Close, Blenheim Industrial Estate, Bulwell, Nottingham, NG6 8WB Tel: +44 (0) 115 977 0075 | Fax: +44 (0) 115 977 0081 Email: info@cie-group.com www.cie-group.com v1.00...
