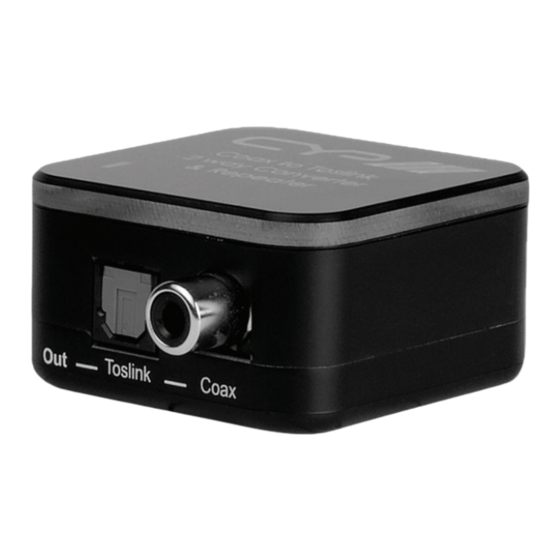

Digital co-ax to optical converter
Hide thumbs Also See for AU-D2:
Table of Contents

Advertisement

Quick Links

Download this manual
AU-D2
Digital Co-ax to Optical Converter
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AU-D2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP AU-D2

Summary of Contents for CYP AU-D2

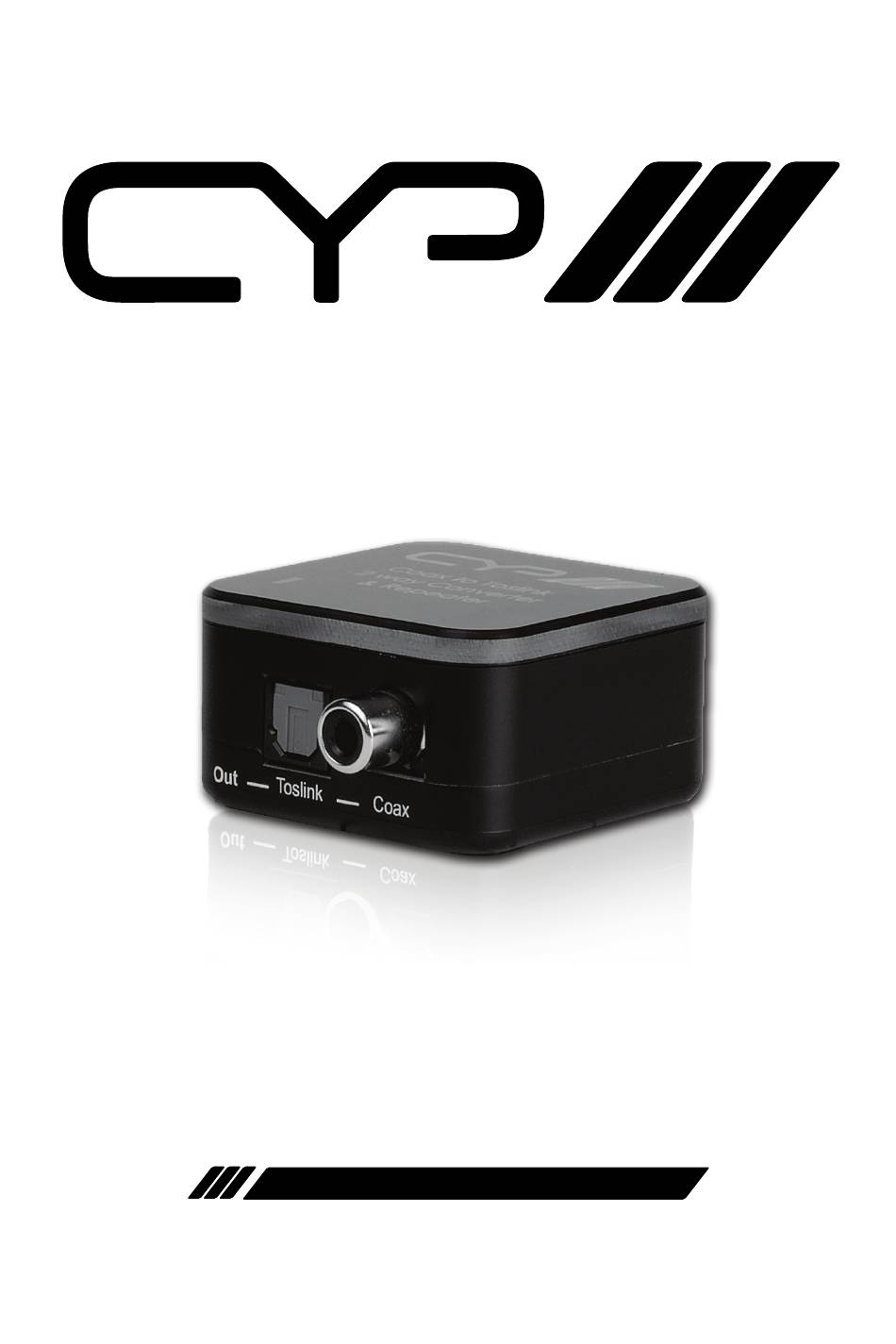

  • Page 1 AU-D2 Digital Co-ax to Optical Converter OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........6 6. Operation Controls and Functions ..7 6.1 Front Panel ........... 7 6.2 Rear Panel ............. 7 6.3 Left Panel ............8 6.4 Top Panel ............8 7.

  • Page 6: Introduction

    1. INTRODUCTION The Digital Audio Converter with Dual Outputs will convert between Coaxial and Optical digital audio formats. This compact and convenient unit accepts a stereo or surround (up to 5.1 channels) audio signal through either Coaxial cable or Optical cable, and passes the unchanged signal to both its Coaxial and Optical output ports.

  • Page 7: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel Coax Toslink Coaxial In: Connect to the output of an S/PDIF digital audio source device such as DVD player or set-top box, using Coaxial cable. Toslink In: Connect to the output of an S/PDIF digital audio source device such as CD player or Media Streamer, using Optical cable.

  • Page 8: Left Panel

    6.3 Left Panel Coaxial DC 5V Tos/Coaxial: Selects the current audio source, either optical or coaxial. DC 5V: Connect the 5V DC power supply to the unit and plug the adaptor into an AC wall outlet. 6.4 Top Panel POWER LED: The LED will illuminate when the power is connected.

  • Page 9: Connection Diagram

    7. CONNECTION DIAGRAM Set-top Box DVD Player Digital Audio Input Digital Audio Input (Optical) (Coaxial) Power Supply Digital Audio Output Digital Audio Output (Optical) (Coaxial) AV Receiver AV Receiver...

  • Page 10: Specifications

    8. SPECIFICATIONS Input Ports 1×Coaxial (RCA connector) 1×Optical Fiber (TOSLINK connector) Input Format LPCM 2 CH, Compressed audio Dolby Digital 2/5.1 CH & DTS 2/5.1 CH Output Ports 1×Coaxial (RCA connector) 1×Optical Fiber (TOSLINK connector) Power Supply 5 V/1.2 A switching power adaptor (with universal plug, CE/FCC/UL certified) Dimensions 58 mm (W)×46 mm (D)×24 mm (H)

  • Page 11: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Analogue to Digital Converter COAX Coaxial S/PDIF Sony/Philips Digital Interconnect Format TOSLINK Toshiba Link...
  • Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
