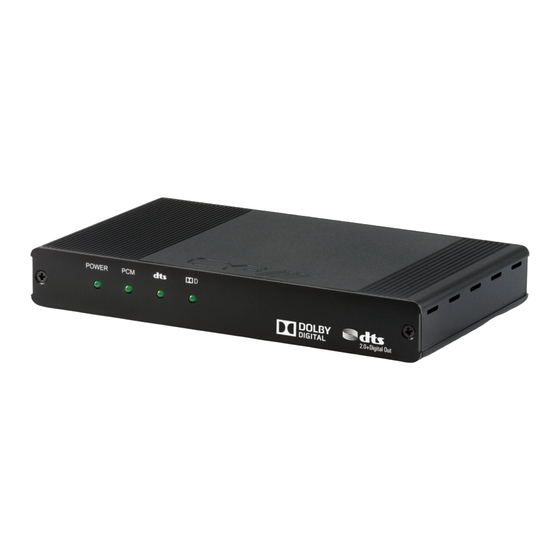

AU-1H1DD
HDMI Audio Converter with Dolby® Digital/DTS® Decoder
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AU-1H1DD and is the answer not in the manual?

Questions and answers

Related Manuals for CYP AU-1H1DD

Summary of Contents for CYP AU-1H1DD

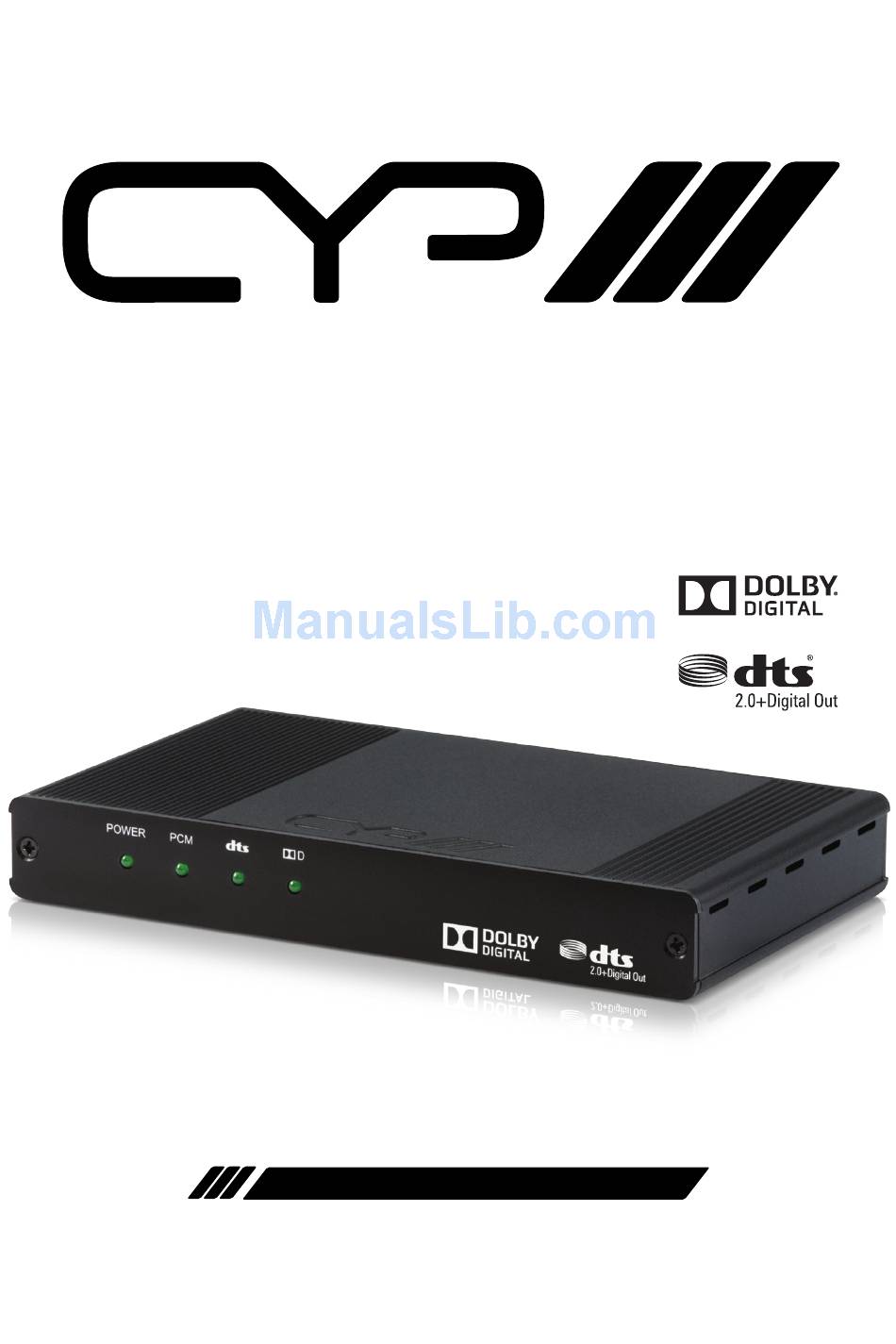

  • Page 1 AU-1H1DD HDMI Audio Converter with Dolby® Digital/DTS® Decoder OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 7. Connection Diagram ......10 8. Specifications ........11 8.1 Technical Specifications ......11 8.2 Supported Video Resolutions .....12 8.3 Audio Specifications .......13...

  • Page 6: Introduction

    1. INTRODUCTION The AU-1H1DD is an advanced solution for de-embedding and down- mixing an audio signal from the HDMI input (up to Dolby® Digital and DTS® 2.0+Digital Out). Connect the AU-1H1DD between the source and your display via HDMI, and select 2CH LPCM or bypass. The digital audio outputs can be set to either 2CH LPCM or bypass.

  • Page 7: Features

    5. FEATURES HDCP 1.4 compliant Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings Supports simultaneous audio outputs on HDMI, analog R/L, Coaxial and Optical Choose between HDMI bypass and 2 Channel audio using the HDMI output switch...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER POWER: This LED will illuminate when the device is connected to an active power supply. PCM LED: This LED will illuminate when the input audio source is PCM format. DTS LED: This LED will illuminate when the input audio source is DTS 2.0+Digital Out encoded.

  • Page 9: Rear Panel

    6.2 Rear Panel OUTPUT HDMI IN HDMI HDMI SPDIF BYPASS/ BYPASS/ SERVICE DC 5V COAX OPTICAL HDMI IN: Connect to an HDMI source device such as a Blu-ray player, Set-top Box or any HDMI equipped source device. HDMI OUTPUT: Connect to an HDMI equipped TV/display or AV receiver for video or audio output.

  • Page 10: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply OUTPUT HDMI IN HDMI HDMI SPDIF BYPASS/ BYPASS/ SERVICE DC 5V COAX OPTICAL HDMI Bypass Analogue Stereo Coaxial Digital Optical Digital Output Output Output Active Speakers AV Receiver HDTV...

  • Page 11: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 300MHz/9Gbps Input Ports 1× HDMI, 1× USB (Service Only) Output Ports 1× HDMI, 1× R/L, 1× Coaxial, 1× Optical HDMI Cable Length Input: 10m@1080p, 5m@4K2K Output: 10m@1080p, 5m@4K2K Power Supply DC 5V/2.6A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model:...

  • Page 12: Supported Video Resolutions

    8.2 Supported Video Resolutions DVI and HDMI Supported Resolutions Input Output 640×480@60/72/75/85   720×480@60   720×576p@50   800×600@56/60/72/75/85   1024×768@60/70/75/85   1280×720@50/60   1280×720p@60   1280×768@60/70/75/85   1280×800@60   1280×1024@60  ...

  • Page 13: Audio Specifications

    8.3 Audio Specifications Output T.H.D+N Frequency Output Crosstalk Level (A-Weight) Response HDMI 0 dBFS <0.00001% ±1dBFS >140dB <-160dB HDMI Optical 0 dBFS <0.00001% ±1dBFS >140dB <-160dB Coaxial 0 dBFS <0.00001% ±1dBFS >140dB <-160dB 0dBFS Line-Out 2Vrms +-0.1 <0.006% ±1dB >100dB <-110dB 8.4 Input Audio to Output Audio Chart Audio Output...

  • Page 14: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protectionl HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.01...
