CYP AU-11HB Operation Manual

Audio only source to hdmi bridge
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AU-11HB
Audio Only Source to HDMI Bridge
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AU-11HB and is the answer not in the manual?

Questions and answers

Related Manuals for CYP AU-11HB

Summary of Contents for CYP AU-11HB

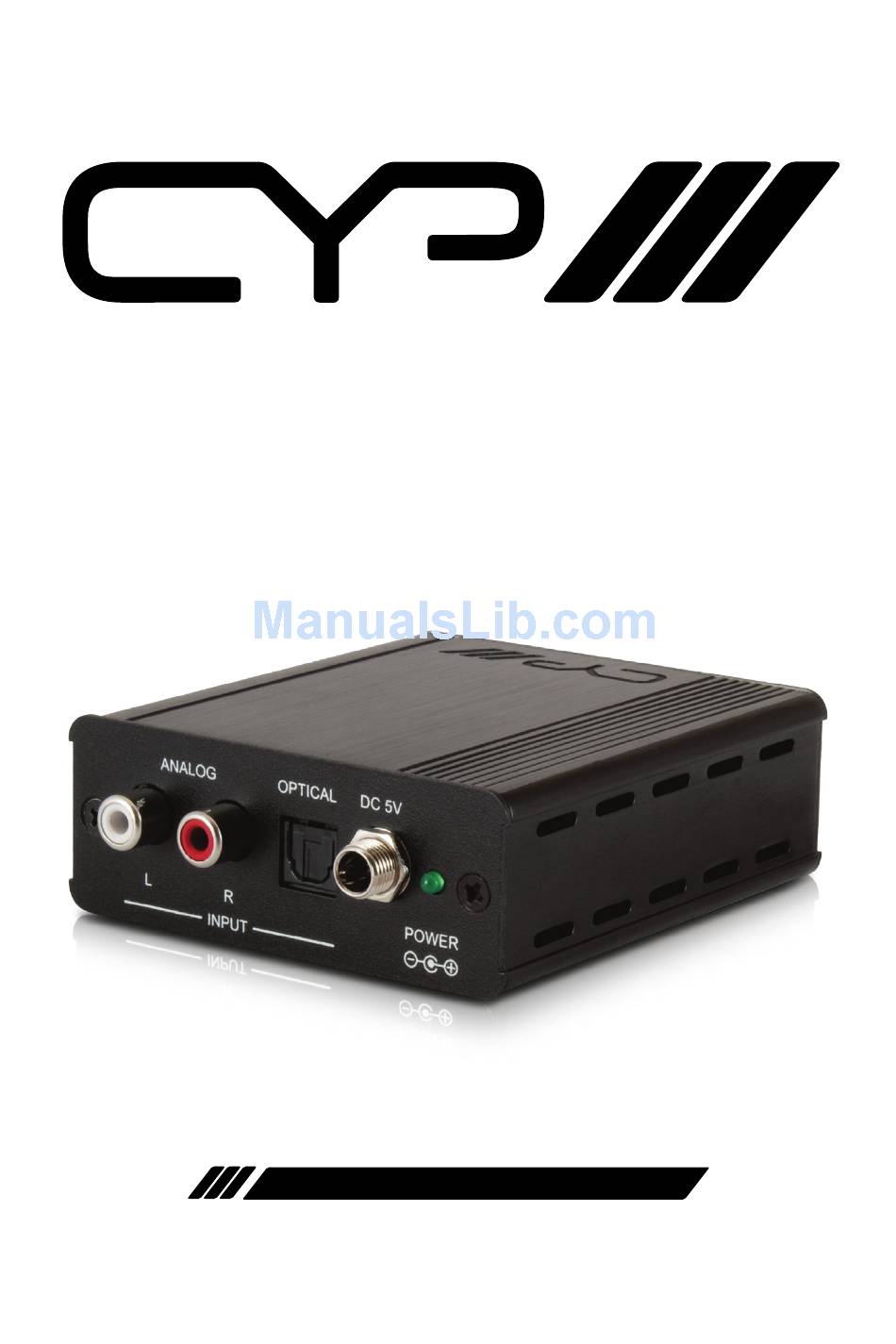

  • Page 1 AU-11HB Audio Only Source to HDMI Bridge OPERATION MANUAL...
  • Page 2 DISclAIMerS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 3: Safety Precautions

    SAfety precAutIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 4: Table Of Contents

    cONteNtS 1. Introduction ...........6 2. Applications ...........6 3. package contents ........6 4. System requirements ......6 5. features ..........6 6. Operation controls and functions ..7 6.1 Front Panel ........... 7 6.2 Rear Panel ............. 8 7. connection Diagram ......9 8. Specifications ........10 9.

  • Page 5: Introduction

    1. INtrODuctION The AU-11HB Audio Source to HDMI Bridge is designed integrate audio only sources into video distribution systems. It will accept digital (optical) or analogue (L/R Stereo) audio signals and output them over HDMI. This clever device also adds a 'blue-screen' video feed into the HDMI signal path so that any HDMI AV receiver or display will accept the audio signal for sound reproduction.

  • Page 6: Operation Controls And Functions

    6. OperAtION cONtrOlS AND fuNctIONS 6.1 front panel ANALOG OPTICAL DC 5V POWER INPUT ANAlOgue l/r INput Connect to an audio source with analogue (L/R) output with RCA cables. OptIcAl INput Connect from audio source equipment with optical output with an optical cable.

  • Page 7: Rear Panel

    6.2 rear panel 720P SERVICE 50 60 OPTICAL ANALOG HDMI OUT ServIce Reserved for manufacturer use only. OptIcAl/ANAlOgue Switch Switch to select between Optical or Analogue L/R inputs. 720p 50/60 Switch Switch to display the 'blue screen' image at 720p/50 or 720p/60. HDMI Out Connect to an HDMI equipped device such as an HDMI matrix, switcher or HDTV/display.

  • Page 8: Connection Diagram

    7. cONNectION DIAgrAM DAB radio SONOS or other Media player Analogue Stereo Optical Input Digital Input ANALOG OPTICAL DC 5V POWER INPUT power 720P SERVICE 50 60 OPTICAL ANALOG HDMI OUT Supply HDMI Output MENU POWER LOCK HDMI Matrix HDtv...

  • Page 9: Specifications

    8. SpecIfIcAtIONS 1×L/R (Analogue Stereo 2RCA), 1×Optical Input port 1×HDMI Output port 32~192 kHz (Optical) Input Audio Sampling rate 48 kHz (Analogue Stereo) Output Audio Sampling rate 32~192 kHz (Optical) Human body model: eSD protection ±8 kV (air-gap discharge) ±4 kV (contact discharge) 5 V/2.6 A DC (US/EU standards, CE/FCC/UL power Supply certified)

  • Page 10: Acronyms

    9. AcrONyMS AcrONyM cOMplete terM HDcp High-bandwidth Digital content protection HDMI High Definition Multimedia Interface...
