AU-D9
Bi-Directional Digital/Analogue Audio Converter (DAC)
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AU-D9 and is the answer not in the manual?

Questions and answers

Related Manuals for CYP AU-D9

Summary of Contents for CYP AU-D9

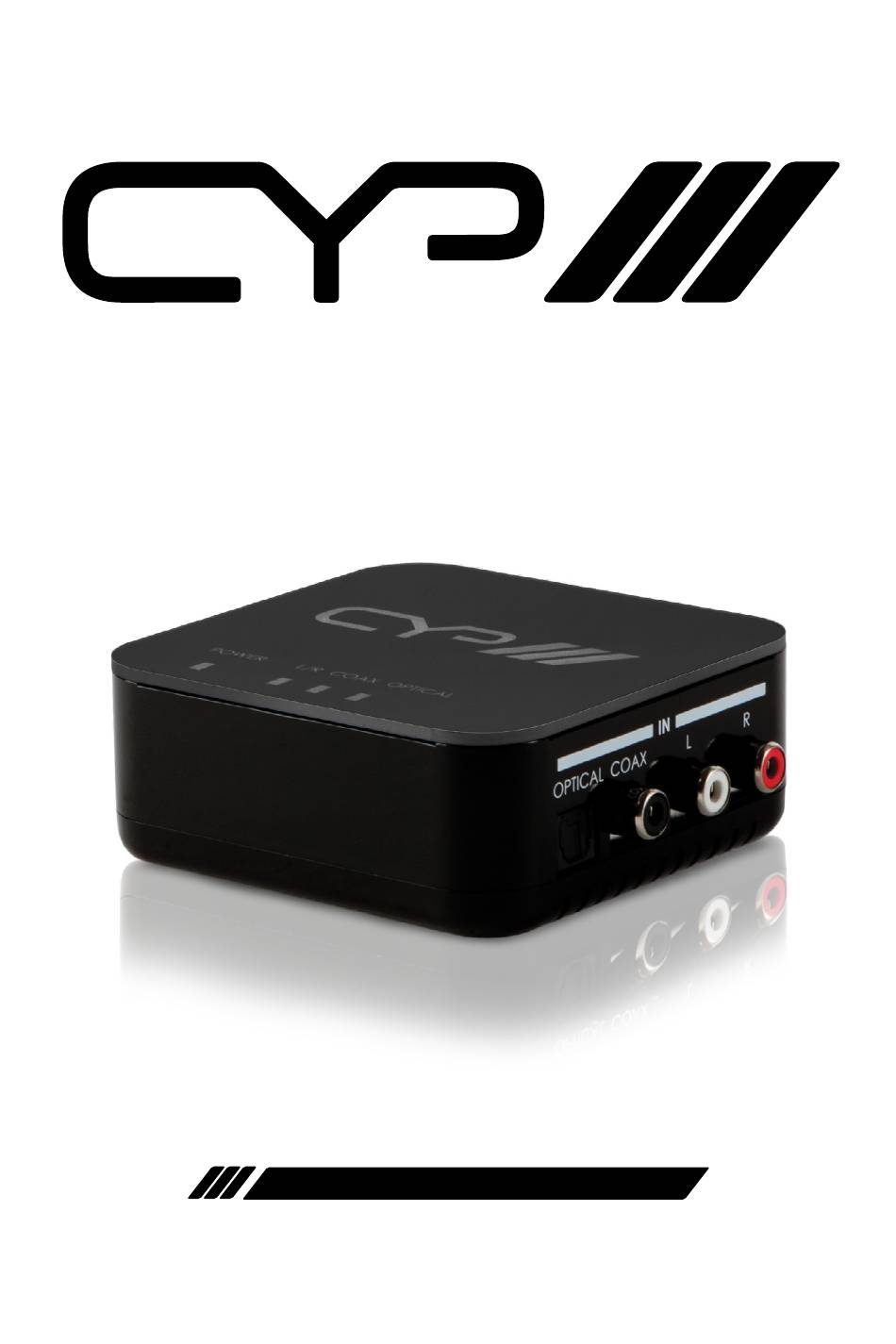

  • Page 1 AU-D9 Bi-Directional Digital/Analogue Audio Converter (DAC) OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Top Panel ............8 6.2 Right Panel ........... 9 6.3 Left Panel ............9 6.4 Rear Panel ...........10 7.

  • Page 6: Introduction

    1. INTRODUCTION The Universal Digital/Analogue Audio Converter allows users to convert Optical, Coaxial and Analogue audio signals. The unit can convert between analogue and digital formats and vice versa and can output simultaneously to all outputs (depending on the audio format) allowing it to act as an audio distributor.

  • Page 7: Features

    5. FEATURES  Integrated digital interpolator filter and Digital-to-Analogue Converter (DAC)  Integrated Analogue-to-Digital Converter (ADC)  Supports sampling rates of 32, 44.1, 48 or 96 kHz  Provides electromagnetic-noise-free transmission  Easy to install and operate  Compact and elegant design...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel POWER L/R COAX OPTICAL POWER LED Indicator The LED will illuminate in green when the power is connected and in red when switched off. L/R IN LED Indicator Will illuminate in blue when the unit is switched to the analogue L/R input.

  • Page 9: Right Panel

    6.2 Right Panel OPTICAL IN Connect to the audio source's optical output. COAX IN Connect to the audio source's coaxial output. L/R IN Connect to the analogue audio source with an stereo RCA cable. 6.3 Left Panel L/R OUT Connect to a compatible audio equipment, such as a TV or amplifier with an stereo RCA cable.

  • Page 10: Rear Panel

    6.4 Rear Panel DC 5V Connect the 5 V/1 A DC power supply to the unit and plug the adaptor into an AC wall outlet. INPUT SELECT Selects the current audio source, either optical, coaxial or L/R (Analogue). POWER Push the button to turn the unit on or off.

  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM Set-top Box DVD Player Games Console Analogue Digital Digital Stereo Coaxial Optical Input Input Input Power Supply POWER L/R COAX OPTICAL Analogue Digital Digital Stereo Coaxial Optical Output Output Output Active Speakers AV Receiver AV Receiver...

  • Page 12: Specifications

    8. SPECIFICATIONS Input Ports 1×Optical, 1×Coaxial, 1×Analogue Stereo (L/R) Input Format TOSLINK, S/PDIF & LPCM 2CH Sample Rates 32/44.1/48/96 kHz Output Ports 1×Optical, 1×Coaxial, 1×Analogue Stereo (L/R) L/R Input Impedance 47KΩ L/R Output Impedance 600Ω ESD Protection Human body model: ±10 kV (air-gap discharge) ±6 kV (contact discharge) Power Supply...
  • Page 13 Audio Specifications: Input Output Reference Level/ Interface Reference T.H.D+N Signal to Frequency Level Noise 1 Vrms±0.05 0.01%  > 90dB 2Vrms/1 kHz COAX 0 dB~-0.35dB 0.01%  > 90dB OPTICAL 0 dB~-0.35dB 0.01%  > 90dB COAX 1 Vrms±0.05 0.01%  > 90dB 0dBFS/1 kHz COAX 0 dB±0.05...
  • Page 14 Comparison between Input and Output Audio Format: Input Output Output Format Note Interface Interface Analog 2CH Analogue COAX LPCM 2CH (48 kHz) OPTICAL LPCM 2CH (48 kHz) OPTICAL Analogue 2CH Odd sound may appear when the input is of Dolby/DTS format COAX LPCM 2CH/Dolby/DTS...

  • Page 15: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Ω Analogue to Digital Converter COAX Coaxial Digital to Analogue Converter Audio Connector (Radio Corporation of America) S/PDIF Sony/Philips Digital Interconnect Format TOSLINK Toshiba Link...
  • Page 16 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
