Technical Information; Specifications; Setting Pts; Troubleshooting & Diagnostics - Command access MLRK1 Instructions Manual

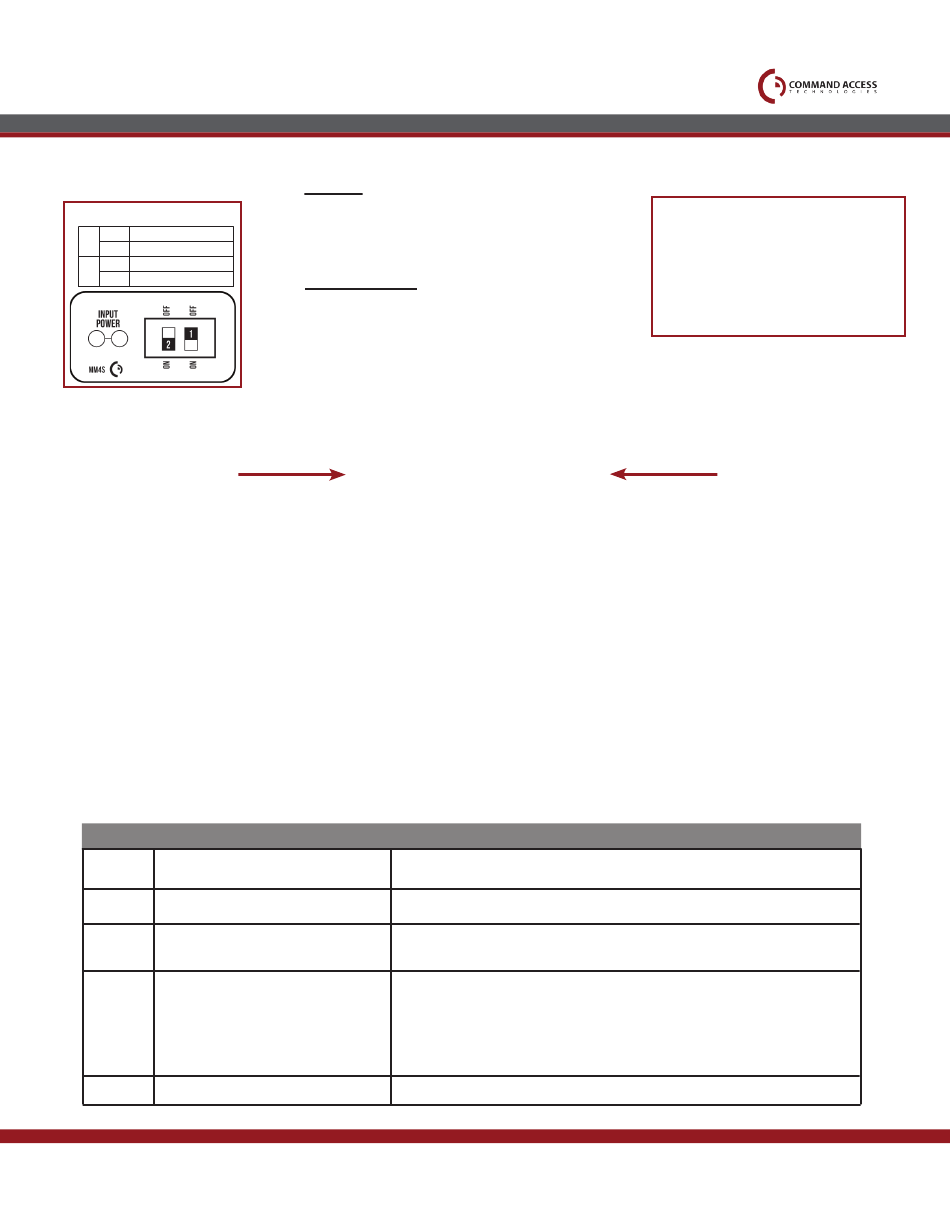

MM4 SWITCHES
OFF
1
STANDARD TORQUE
ON
HIGH TORQUE
ON
2 PTS PROGRAMMING ON
OFF
PTS PROGRAMMING OFF
Make sure to set PTS before finishing installation
Step 1-
Select your preferred torque mode (ships in standard torque) Press the device push pad to the
desired setting. (Recommend to fully depress and release 5%, giving the device room for changing
door conditions.)
Step 2-
While depressing the push pad, apply power. (i.e. presenting the credential to the reader).
Step 3-
Continue to keep pad depressed, the device will beep 6 times. After the beeps have stopped, release
the pad and now the adjustment is complete. If not to your liking repeat the 3 steps.
Step 4-
Once you found the correct location, turn PTS switch to OFF position.
Troubleshooting & Diagnostics
Beeps Explanation
2 Beeps Over Voltage
Under Voltage
3 Beeps
4 Beeps Failed Sensor
5 Beeps Retraction or dogging failure
PUSH TO SET
6 Beeps
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2

Technical Information

SPECIFICATIONS

POWER
• Input Voltage: 24VDC +/- 10%
• Wire gauge: Minimum 18 gauge
• Direct wire run - no relays or access control units in-
between power supply & module
Request to Exit
• Single Pole - Double Throw (SPDT)
• Rating: .5A @24VAC
• Configuration:
Green - Common (C)
Blue - Normally Open (NO)
Gray - Normally Closed (NC)

Setting PTS

**Important Info**
> 30V unit will shut down. Check voltage & adjust to 24 V.
< 20V unit will shut down. Check voltage & adjust to 24 V.
Verify all 3 sensor wires are installed correctly. Replace sensor if problem
After 1st fail: 5 beeps then immediately attempts to retract again.
After 2nd fail: 5 beeps with pause in-between for 30 seconds then device
attempts to retract again.
After 3rd fail: 5 beeps every 7 minutes, device will not attempt to retract.
To Reset: Depress bar for 5 seconds at any time.
Device is recording it's new position and power mode after the 6th beep.
Standard Torque Mode
Average Latch Retraction Current: 1.3 A
Average Holding Current: 215 mA
High Torque Mode
Average Latch Retraction Current: 2 Amp
Average Holding Current: 250 mA
Solution
persists by contacting office.
