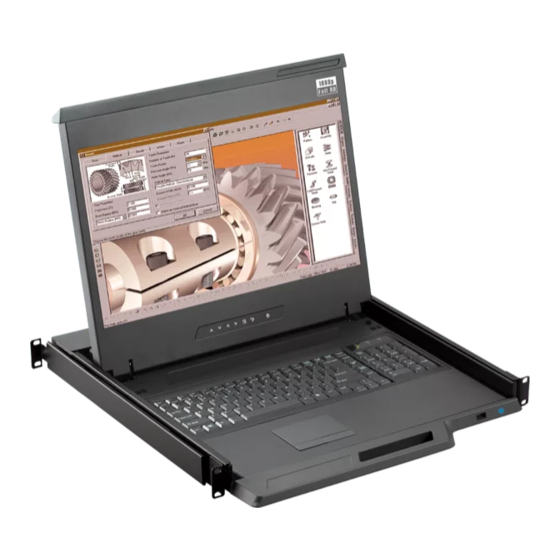

- Page 1 KVM switch and rackmount screen technology User Manual 17” High Brightness FHD LCD 1000 cd/m² HF117 1U LCD Console Drawer Options : - SDI - HDMI - DC power Designed and manufactured by Austin Hughes UM-CV-751-HF117-Q419V2 www.austin-hughes.com...
-
Page 2: Legal Information
Legal Information First English printing, December 2019 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Table Of Contents
Contents < Part. 1 > HF117 Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations / OSD Product Specifi cations Keyboard / Mouse Specifi cations P.10 On-screen Display Operation ( OSD ) P.13 < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.15... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Hf117
< Part 1 > < 1.1 > Package Content HF117 HF117 unit X 1 - CX-6A 6ft DVI-D console cable X 1 ( Alternative : CB-6A 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 < 1.2 > Dimension Front View Rear View DVI-D AC Input 100~240V Power UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 480 x 44 mm 590 x 808 x 140 mm...
-
Page 7: Installation
< 1.3 > Installation - Installation Slides HF117 Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■... - Page 8 < 1.3 > Installation - ORB-2.1 2-Post Rack Mounting Brackets ( Option ) Step Right bracket ■ Before apply 2-post rack brackets, please release front mounting ears and rear mounting wheels. fl at head screw 6#32*4.5mm x 3 ■ Attach left and right mounting brackets to the drawer with the screws below : Left bracket 6#32*3.5 mm screw x 8 ( only for front )
- Page 9 < 1.3 > Installation- How to use the drawer HF117 ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-751-HF117-Q419V2 www.austin-hughes.com...
-
Page 10: Connection
< 1.4 > Connection to USB Server via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D console cable USB server DVI-D < 1.4 > Connection to external KVM via CX-6A cable LCD Console Drawer DVI-D AC Input 100~240V POWER CX-6A DVI-D... - Page 11 < 1.4 > Connection to USB Server via CB-6A cable HF117 LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable USB server < 1.4 > Connection to external KVM via CB-6A cable LCD Console Drawer POWER AC Input 100~240V CB-6A VGA console cable...
-
Page 12: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) 1000 Contrast Ratio ( typ. ) 600:1 Color 16.7 M... - Page 13 HF117 Physical Product ( W x D x H ) 441.6 x 480 x 44 mm Specifi cation 17.4 x 18.9 x 1.73 inch Packing ( W x D x H ) 590 x 808 x 140 mm 23.2 x 31.8 x 5.5 inch Net Weight 10.8 kg / 23.8 lb Gross Weight...
-
Page 14: Keyboard / Mouse Specifi Cations
< 2.2 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts America United States... - Page 15 < 2.2 > MAC Keyboard / Mouse Options HF117 MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume...
- Page 16 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose S keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 17: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) HF117 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 18 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 19 < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input HF117 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input...
-
Page 20: Options
< 3.2 > Options : - HDMI ( HDMI 1.4, CEA-861-E ) ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi... - Page 21 < 3.3 > Options : DC Power HF117 Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
-
Page 22: Kvm Integration
< Part. 4 > KVM Integration www.austin-hughes.com/support/usermanual/cyberview/UM-CV-2KKVM-KIT.pdf Local Remote 8-port -801D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf DVI-D Local Remote 12-port -1201D www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Matrix -MUIP1613 -MUIP3213 -MUIP1624 -MUIP3224 -MU1602 -MU3202 -MU1603 -MU3203 -MU1604 -MU3204 www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf Cat6 Local Remote 8-port 16-port 32-port Combo... - Page 23 Intentionally Left Blank UM-CV-751-HF117-Q419V2 www.austin-hughes.com...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2019 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-HF117-Q419V2 P.20...
