Cree LXB Series Installation Instructions

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER
- Risk of shock- Disconnect power before installation.
DANGER
- RISQUE DE CHOC - COUPER L'ALIMENTATION
AVANT L'INSTALLATION
2. CAUTION
– Installation and servicing should be performed by
qualified personnel only. De-energize before opening.
ATTENTION
– L'installation et l'entretien doivent être effectués
par du personnel qualifié seulement. Mettre hors tension avant
l'ouverture
3. To reduce the risk of electric shock, disconnect both standard and emergency power supplies and converter connector of the
emergency driver before servicing.
Pour réduire le risque de décharge électrique, vous devez déconnecter à la fois le disjoncteur divisionnaire ou les fusibles et les
alimentations d'urgence avant l'entretien.
4. Do not use outdoors.
Ne pas utiliser à l'extérieur.
5. Do not let power supply cords touch hot surfaces.
Ne laissez pas les cordons d'alimentation toucher les surfaces chaudes.
6. Do not mount near gas or electric heaters.
Ne montez PAS près des appareils de chauffage de gaz ou électriques.
7. Do not use this equipment for other than intended use.
8. Equipment should be mounted in locations and heights where it will not readily be subjected to tampering by unauthorized
personnel.
L'équipement doit être monté dans des endroits et à des hauteurs où il ne sera pas soumis à des altérations par des personnes
non autorisées.
9. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
L'utilisation d'accessoires non recommandés par le fabricant peut causer une situation dangereuse.
10. Max. mounting height: 20 ft.
Hauteur de montage max.: 10.
11. Do not handle energized module with wet hands or when standing on wet or damp surfaces, or in water.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
NOTES:
• DO NOT handle the Luminaire by the light bars. See Figure 7 on the back page for required handling locations.
• Products with the -EB suffix are provided with a factory-installed emergency lighting LED battery pack and are eligible to serve as part of a
facility's emergency lighting system in accordance with ANSI/NFPA 101 and Article 700 of ANSI/NFPA 70.
• When mounted at or below 20ft, -EB products will provide the required 1 foot-candle of illuminance on the floor.
Max Rated Ambient
Fixture Size Suspended 18"
18L
24L
1 of 4
Surface Mount
55C 45°C
55C 45°C

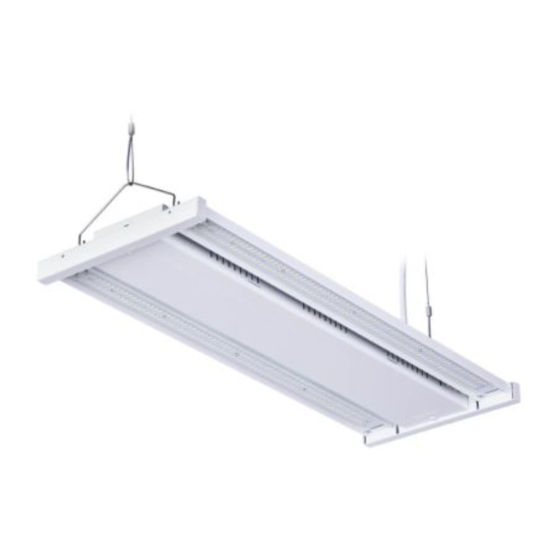

LED Linear High Bay with Emergency Driver
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
LXB Series
LPN00599X0002A0_A
