Mounting the Vesta Building Controller
There are two ways to fix the Vesta Building Controller to the wall. The first is fixing it directly to the wall using

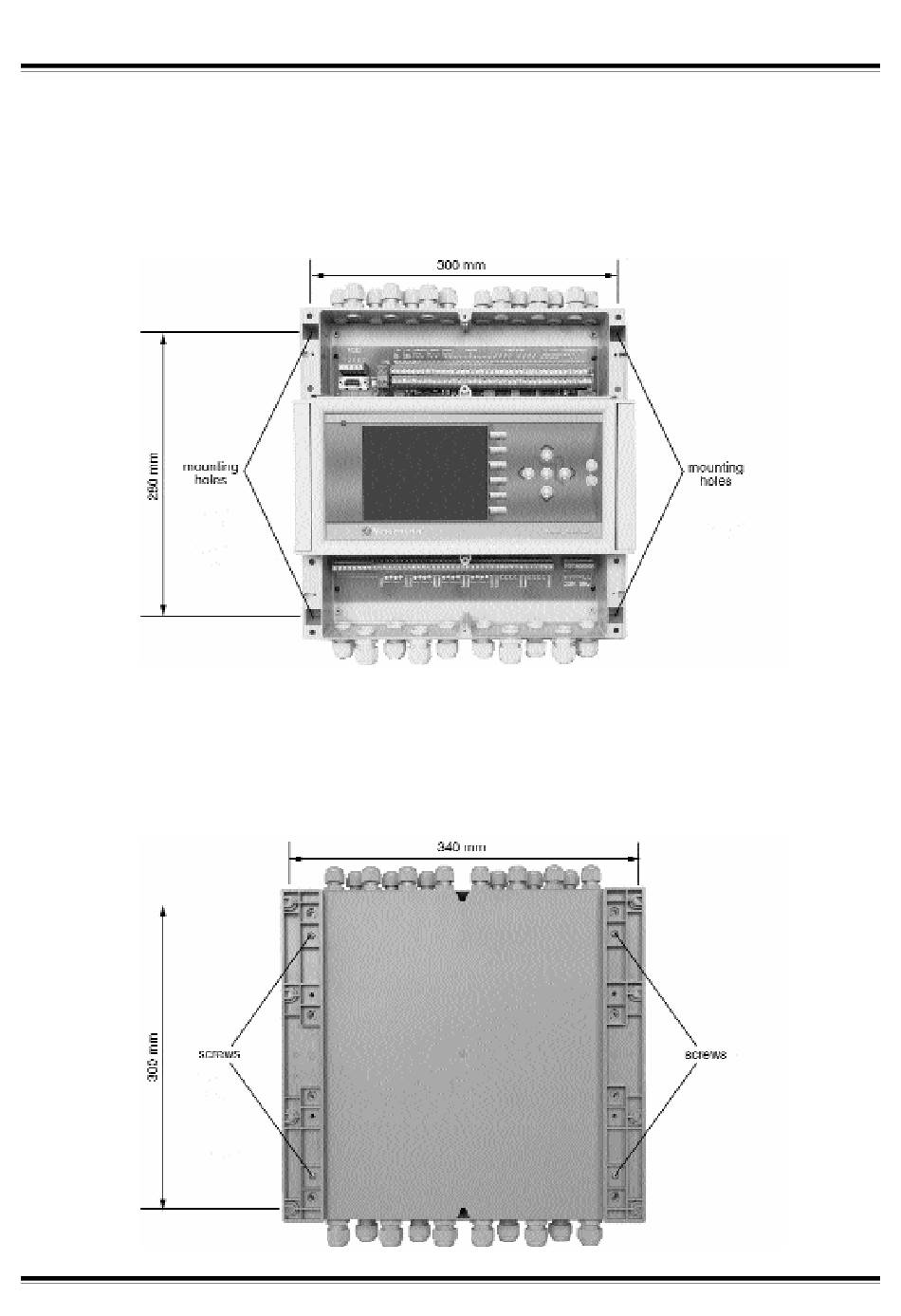

the 4 mounting holes on the inside of the box (see picture 1). Remove the 2 covers on the top and bottom and
fix the device to the wall with 4 screws. The drill distances are shown below.
The second option is to use the 2 spacers. These can be used to create a distance of 11 mm between the wall
and the Vesta Building Controller. This allows cables to be guided behind the device, or fixing it on an uneven
wall.
Attach the spacers on the back of the device as shown in picture 2 with the 4 screws which are included. Then
fix the device to the wall using the holes on the corners. The drill distances are shown below.
