Intelligent motor control for 8 smi lovo motors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Option of connecting up to 8 SMI LoVo 24VDC motors to
control interior blinds and interior motors
Compatible with KNX BUS system
Programmable button and LED for addressing indication on the device
KNX objects, Up/Down, Step/Stop, shading position, automatic
Shutter height %, slat %, shutter height status %, slat status %
Store/Call up scene 1 + 2, drive status
Individual and group control via KNX output devices
(conform EIS7 Standard or DPT 1.007 and 1.008 described in KNX
System Specifications Interworking Datapoint Types)
Fully synchronised operation of shades also possible in parallel
connection
Supply voltage:
Housing:
Interface for BUS system:
Interface for motor:
Communication projects:
Max. number of group addresses:
Max. assignment of group addresses: 162
Operating temperature:
Software class:
IP class:
Degree of contamination:
Dimensions (L × W × D):
Mark of conformity:
© by Vestamatic GmbH
IF SMI KNX
24VDC
Art.-no.:
01092510
Short description
Technical data
24VDC
REG 2TE
KNX, Medium TP1
SMI
82
114
0 °C (32 °F) to +40 °C (104 °F)
A
IP 20
2
90 × 35 × 59 mm
p

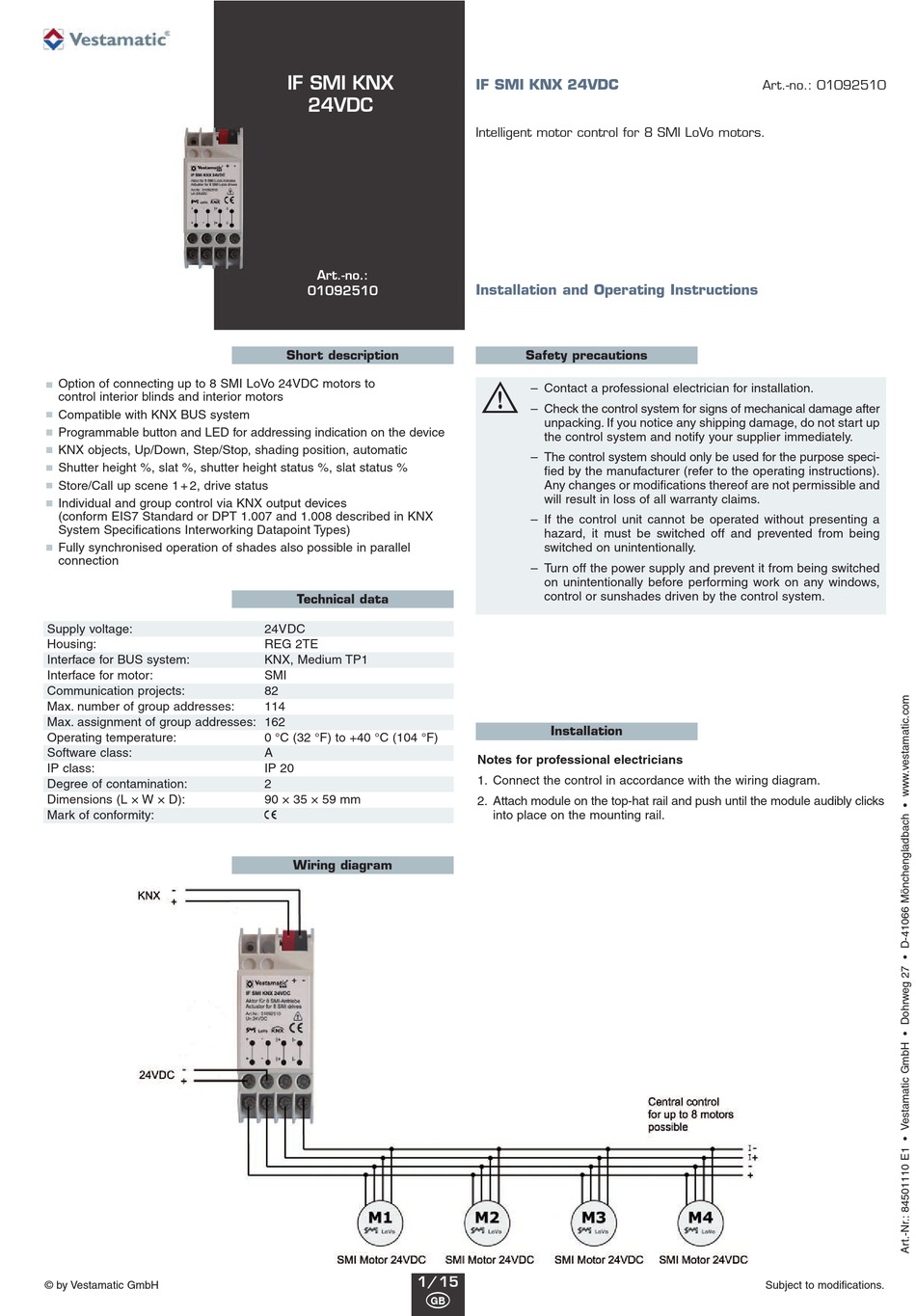

Wiring diagram
1/ 15
G
IF SMI KNX 24VDC
Intelligent motor control for 8 SMI LoVo motors.
Installation and Operating Instructions
Safety precautions
Ä
– Contact a professional electrician for installation.
– Check the control system for signs of mechanical damage after
unpacking. If you notice any shipping damage, do not start up
the control system and notify your supplier immediately.
– The control system should only be used for the purpose speci-
fied by the manufacturer (refer to the operating instructions).
Any changes or modifications thereof are not permissible and
will result in loss of all warranty claims.
– If the control unit cannot be operated without presenting a
hazard, it must be switched off and prevented from being
switched on unintentionally.
– Turn off the power supply and prevent it from being switched
on unintentionally before performing work on any windows,
control or sunshades driven by the control system.
Installation
Notes for professional electricians
1. Connect the control in accordance with the wiring diagram.
2. Attach module on the top-hat rail and push until the module audibly clicks
into place on the mounting rail.
Art.-no.: 01092510
Subject to modifications.
