Column 2: The alias of the sensor. The alias (description) of a sensor can be changed in the configuration
menu section sensors.
Column 3: The actual measured values which will be updated every second. When a sensor is temporary
disabled, the text "off" will be shown. When a sensor is defect, the text "defect" will be shown.
3.3

State of functions

3.3.1 Detailed functional description of current group

In this description the state of all functions of the current group will be shown. The header of this description
shows the group alias. The different functions are ordered by priority in two columns. The function with the
highest priority number, has the highest priority. The priority can be any number between 0 (lowest) and 255
(highest). Next to the priority, an icon is shown which represents the function. Below a description of all func-
tions with their associated icon:
Next to the function type, the state of the function will be shown. Below a description of all possible function
states:
Function is active. A function will be active when during a predefined time the active conditions stay
"true".
Function is inactive. A function will be deactivated when during a predefined time the active
conditions stay "false".
Function is asleep. The function is enabled but will not perform any action. The time function will go
to the sleep state when no timer program is stored. The sun function will go to the sleep state when
the manual operation is activated.

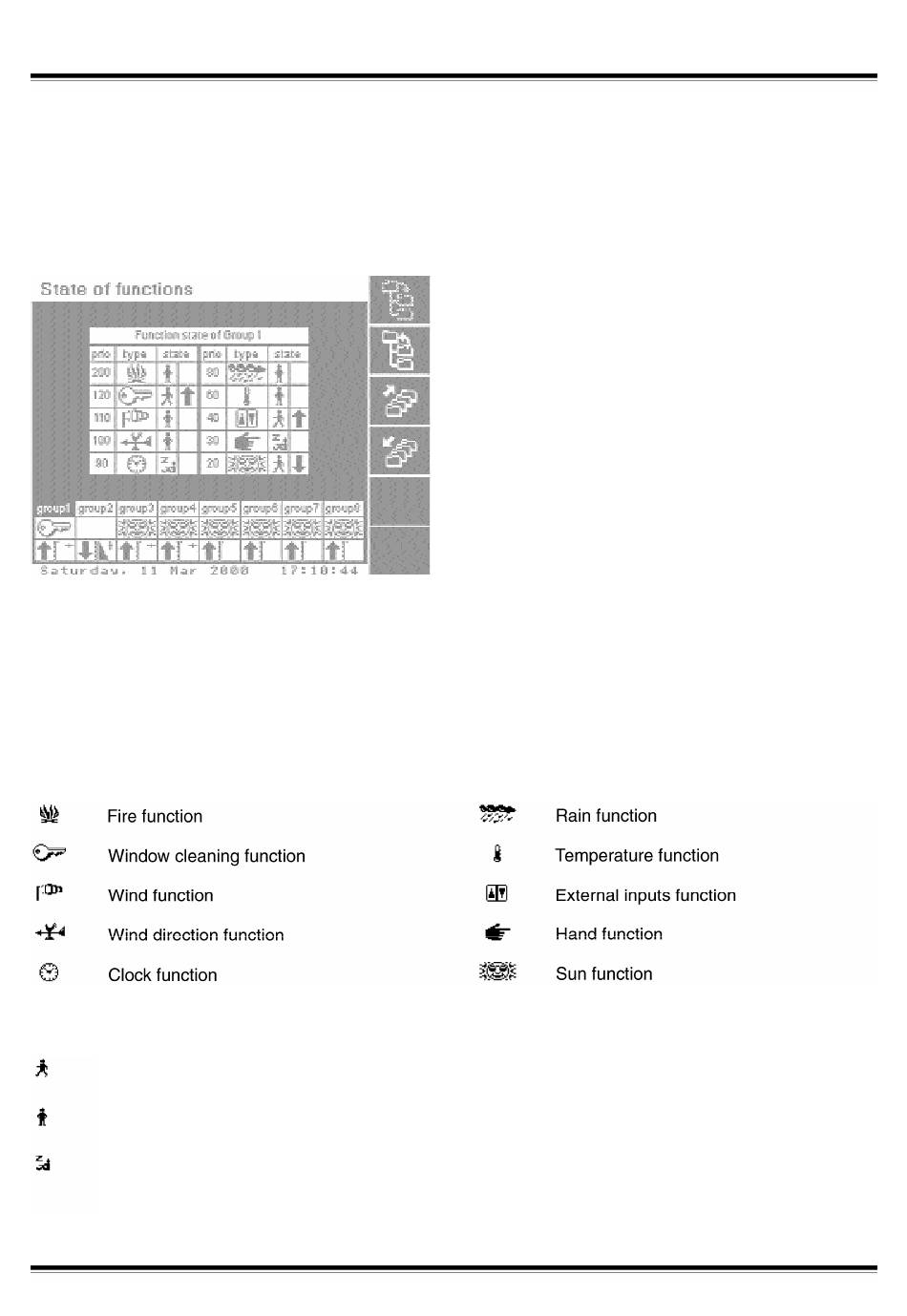

Picture 4: Menu state of functions
The state of functions menu gives an overview of
the function state. The main area can be divided into
two sections: a detailed function description of cur-
rent group and an active function overview.
