Operation

3 Operation
This chapter will explain how to use the different menus.
3.1

Main menu

3.2

Measured values

Column 1: A graphical representation of the measured value. Below a list of the possible graphical representa-
tion with their description.
The unit were in the value of a particular sensor is measured, can be changed in the configuration
menu section sensors.

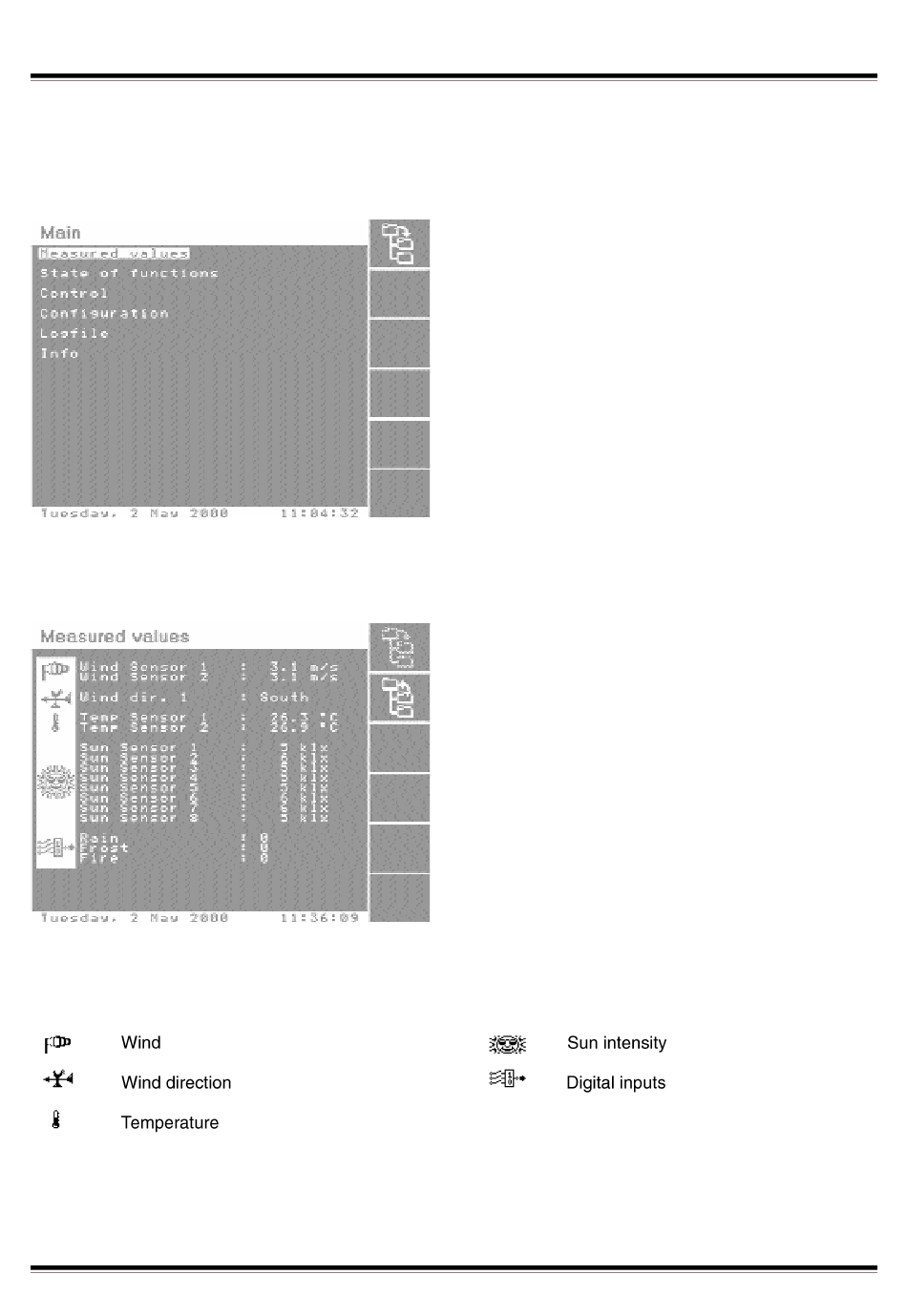

Picture 2: Menu main
The main menu is the most upper menu. From this
main menu, the user can select a number of sub-
menus. To select another sub-menu, use the cursor
control keys UP and DOWN. When the desired sub-
menu is selected, press the "enter sub-menu" func-
tion key. This is the function key with the icon left to it.
Picture 3: Menu measured values
The measured values menu displays the current
measured values. The main area can be divided into
three columns. The menu can be left by pressing the
"leave and sub-menu" function key.
