Configuration

4.7.11 Clock function

Global settings
Group
Alias
Enabled
Clock moment
Moment
Enabled
Start
Stop
Action
Type
Blocking
Tilting
In total 28 time slots can be programmed. Time slots may not overlap each other.
Group selection.
Shows the alias of the current selected group.
Enable or disable the clock function.
Select the time slot to modify.
Enable or disable the current selected time slot. When a time slot is disabled, it will not
be executed. In some cases it can be handy to temporarily disable one or more time
slots.
Set the start day and time for the current time slot.
Set the stop day and time for the current time slot. A time slot may be programmed
over one or more days.
Set the command action to perform when this time slot becomes active. The command
action can be UP or DOWN.
Set the command type: running or continuously.
Enable or disable the blocking relays. Setting the blocking is only possible when the
command type is running. When blocking is enabled, no individual control in the room
of the particular group is possible. The sunshade will be blocked.
When blocking is set to no, individual control in the room of the particular group is pos-
sible.
Set the desired tilting type for this time slot. This can be none, fixed or during the day.

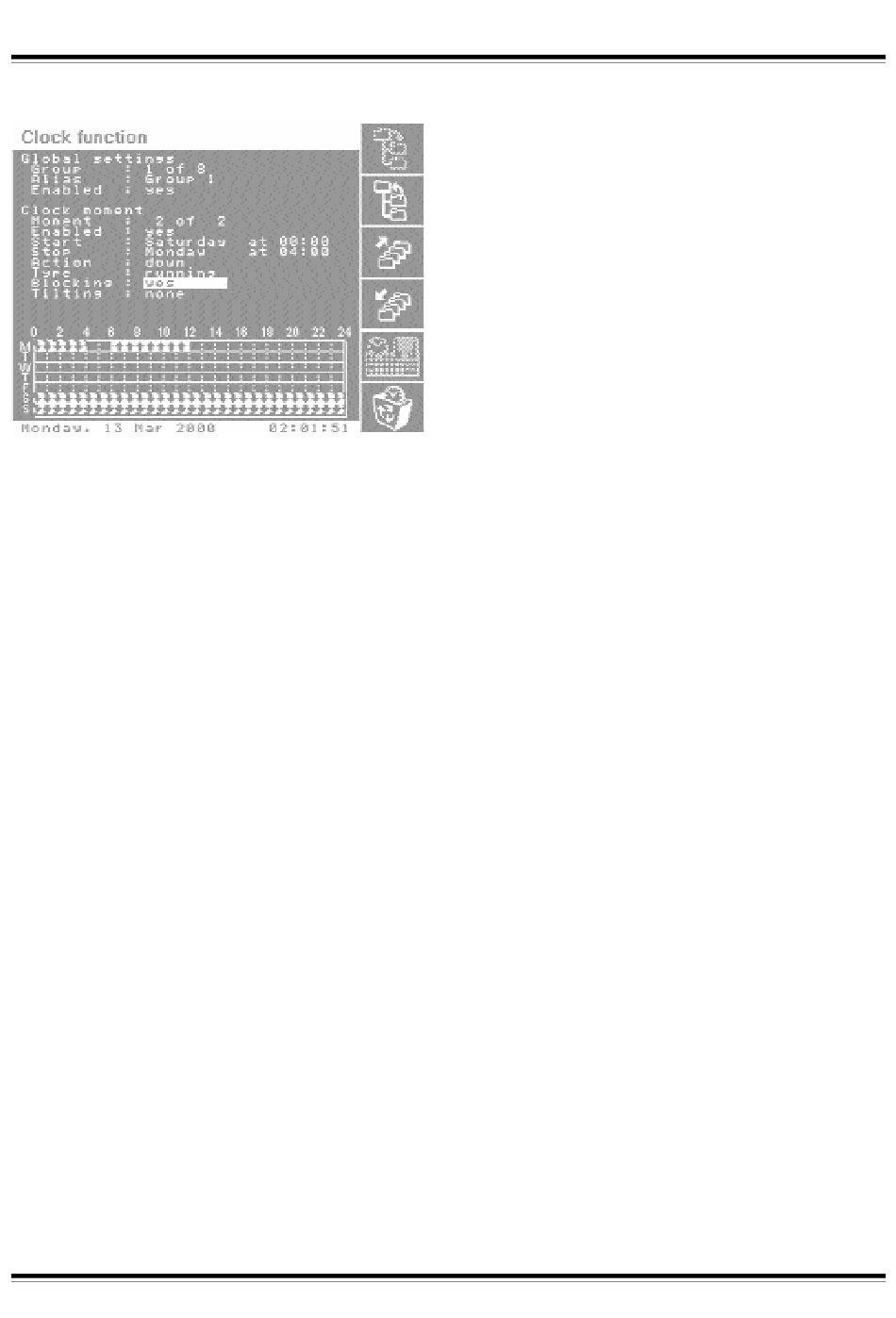

Picture 34: Menu clock function
The clock function will steer the sunshade as func-
tion of programmed time slots.
- 74 -
