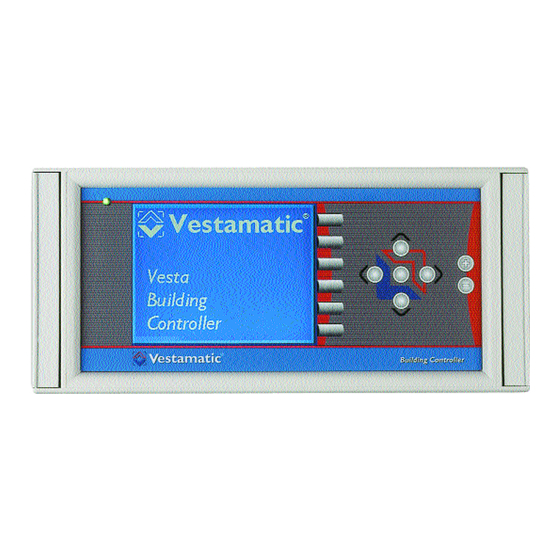

Vestamatic Vesta Building Controller Installation And Operating Instructions Manual

8-channel central control for sun protection and roller shutter systems in large buildings
Hide thumbs
Table of Contents

Advertisement

Quick Links

Vesta Building Controller
8-Channel Central Control for Sun Protection and
Roller Shutter Systems in large Buildings
Installation and Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vesta Building Controller and is the answer not in the manual?

Questions and answers

Related Manuals for Vestamatic Vesta Building Controller

Summary of Contents for Vestamatic Vesta Building Controller

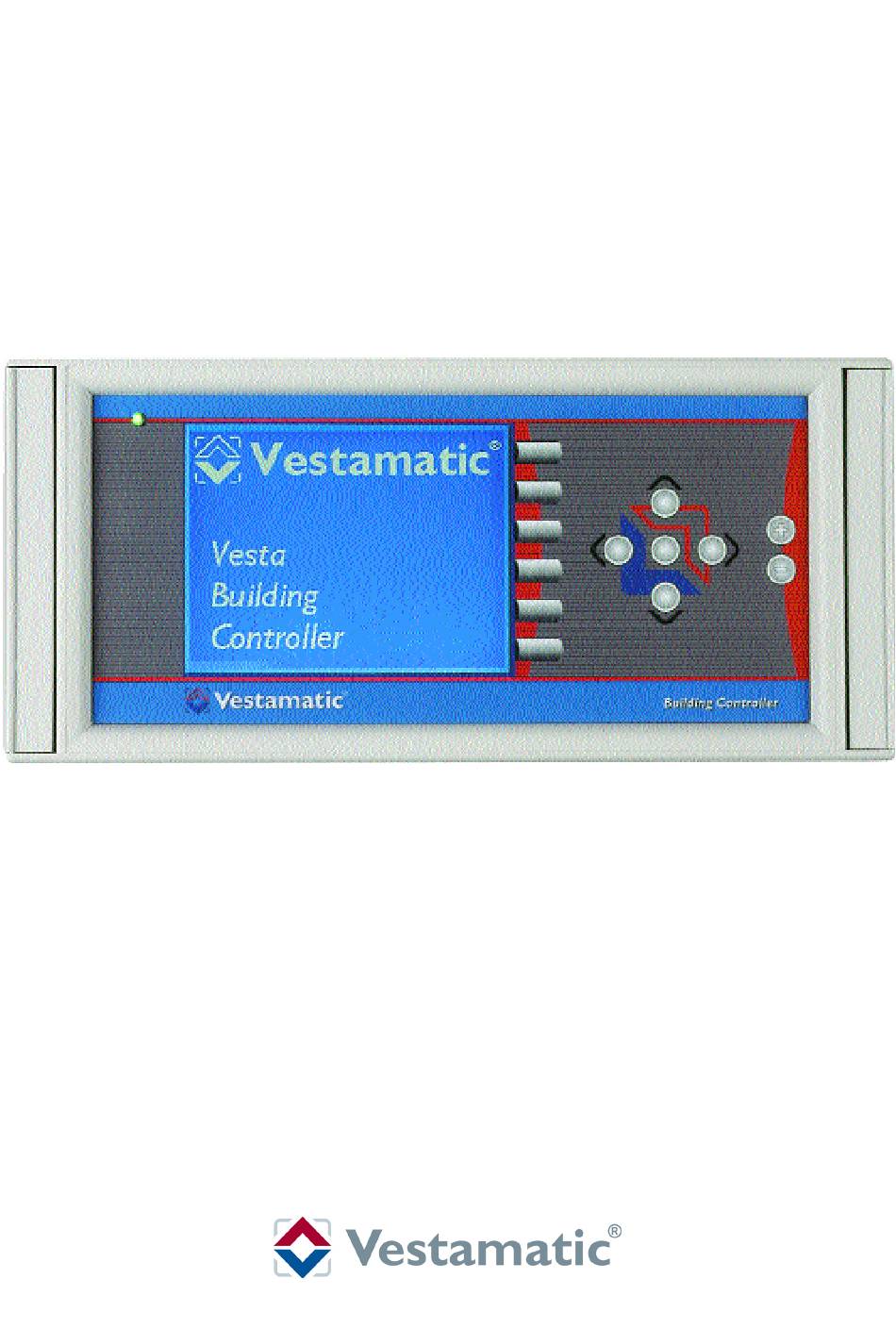

  • Page 1 Vesta Building Controller 8-Channel Central Control for Sun Protection and Roller Shutter Systems in large Buildings Installation and Operating Instructions...

  • Page 3: Table Of Contents

    Contents Introduction page 43 1 Installation instructions page 44 Mounting the Vesta Building Controller page 44 Connecting the Vesta Building Controller page 45 1.2.1 Mains power supply and relay outputs page 45 1.2.2 Sensor connections and digital inputs page 46 1.2.3...
  • Page 4 Contents 4 Configuration page 59 Password page 59 4.1.1 How to enter the password page 59 User interface page 60 Time and date page 61 4.3.1 Set time page 61 4.3.2 Set date page 61 4.3.3 Function keys page 61 Groups page 62 Change password...

  • Page 5: Introduction

    1 potential-free alarm input. The user-friendly interface of the Vesta Building Controller (further mentioned as VBC) gives access to a lot of information like the measured sensor values, state of functions and a logfile. It also gives access to a lot of control possibilities like manual operation, automatic operation and control by the sun function.

  • Page 6: Installation Instructions

    Mounting the Vesta Building Controller There are two ways to fix the Vesta Building Controller to the wall. The first is fixing it directly to the wall using the 4 mounting holes on the inside of the box (see picture 1). Remove the 2 covers on the top and bottom and fix the device to the wall with 4 screws.

  • Page 7: Connecting The Vesta Building Controller

    Connecting the Vesta Building Controller The inputs and outputs of the Vesta Building Controller are under the two covers and are split up in two parts. On the upper part all the sensors are connected. The lower part is for the relay outputs.

  • Page 8: Sensor Connections And Digital Inputs

    Installation instructions 1.2.2 Sensor connections and digital inputs All sensors are connected in the upper connection part as shown below. The next chapters will describe the connection for each sensor. 1.2.3 Wind speed sensors There can be 2 wind speed sensors connected. These can be the current type or the frequency type sensor. If the heated sensors maximum current consumption is 100 mA, the sensor can be connected directly.

  • Page 9: Wind Direction Sensor

    Installation instructions 1.2.4 Wind direction sensor There can be 1 wind direction sensor connected to the VBC. This one can be a current type or a digital sensor. If the heated sensors maximum current consumption is 100 mA, the sensor can be connected directly. An external power supply must be used, if the heated sensors current consumption is higher than 100 mA.

  • Page 10: External Up/Down Inputs

    Installation instructions 1.2.7 External up/down inputs Each group has its own external up/down input. This inputs require a poten- tial-free switch. It is possible to switch more inputs with the same switch at the same time. Connect the switch to the desired input and the common terminals (140, 149, 150 or 159).

  • Page 11: Communication Ports

    Installation instructions Communication ports The VBC has several communication ports, however not all of them are used at this moment. The next chapters will describe the functions. 1.3.1 CAN This option is not used at this moment and cannot be used. 1.3.2 SSC With the Master-Slave option this connection will be used.

  • Page 12: General

    General General This chapter describes how to control the Vesta Building Controller in general. The different function keys will be explained, the layout of the display and the buzzer functionality will be described. The picture below shows the user control of the Vesta Building Controller.

  • Page 13: Home Key

    General 2.1.3 Home key By pressing the home key, the program will return to the main menu. There is one exception, when the string edit is activated, the home key will leave the string edit mode. 2.1.4 Edit keys With the edit keys, the value of the current selected variable can be changed. When the current selection is not a variable, nothing will happen.

  • Page 14: Operation

    Operation Operation This chapter will explain how to use the different menus. Main menu Picture 2: Menu main The main menu is the most upper menu. From this main menu, the user can select a number of sub- menus. To select another sub-menu, use the cursor control keys UP and DOWN.

  • Page 15: State Of Functions

    Operation Column 2: The alias of the sensor. The alias (description) of a sensor can be changed in the configuration menu section sensors. Column 3: The actual measured values which will be updated every second. When a sensor is temporary disabled, the text “off”...

  • Page 16: Changing Current Group

    Operation Function is in safety mode. The safety mode will be entered if one of the assigned sensors to this functions is defect or disabled. Function is disabled. Next to the function state the motor action will be shown. Below a description of all possible motor actions: The motor action is up.

  • Page 17: Example

    Operation 3.3.4 Example Picture 5: Menu state of functions – example Priority Function Motor action Window cleaning External inputs DOWN Only the function with the highest priority will get the actual control. In the example for group 1 this will be the window cleaning function.

  • Page 18: Control Menu - By Hand Function

    Operation 3.4.1 Control menu – by hand function When controlling by hand function, the sun function is temporary disabled. The sunshade position can be con- trolled by hand using the following function keys: Steer the sunshade up. Stop the current motor action. When no motor action is active, nothing will happen.

  • Page 19: Configuration

    Operation Configuration Picture 8: Menu configuration – enter Within the configuration menu, a lot of settings can be made. For this reason the menu is password pro- tected. For a detailed description of the configura- tion menu, see chapter 4, Configuration. Logfile Picture 9: Menu logfile The logfile menu shows a list of all occurred errors.

  • Page 20: Info

    Vestalon-module will be shown. Version Software version Date Software release date Name Vestalon id name Neuron ID Vestalon neuron id Project Project name description. Contact info Contact information who you can call for more information about the Vesta Building Controller. - 58 -...

  • Page 21: Configuration

    Configuration Configuration Picture 12: Menu configuration – enter Within the configuration menu, a lot of settings can be made. For this reason the menu is protected by a password. Password To enter the configuration menu, a correct password must be entered. The default password is “usr” (without the quotes and in lower case).

  • Page 22: User Interface

    Configuration Picture 13: Menu configuration When changes are made in the configuration, the function key “save settings” will be enabled. Save changes made in the configuration. This function key is only activated when changes are made. Before leaving the con- figuration menu, changes must be saved, otherwise changes will be lost.

  • Page 23: Time And Date

    Configuration Time and Date Picture 15: Picture 16: Time and Date – set time Time and Date – set date In the time and date menu, time and date can be set. The following paragraphs describes how. 4.3.1 Set time The menu “set time”...

  • Page 24: Groups

    Configuration Groups Picture 17: Menu groups The groups menu let you set the following: Type Setting the type of the sunshade. You could select the typs shade, shutter, venetian blind or screen. Alias A description for the current group. Default the alias will be set to “Group n” where “n” is current group index (1...8).

  • Page 25: Sensors

    Configuration Picture 19: Change password – info Saving the configuration (press save function key) you will also save the new password. When the con- figuration will not be saved, the old password will be retained. Sensors In the sensors section of the configuration menu the following settings can be made for each sensor: Unit The unit of the measured sensor value.

  • Page 26: Temperature Sensors

    Configuration 4.6.2 Temperature sensors Picture 21: Menu temperature sensors Global settings Unit The unit of the temperature sensors can be set to °C (degrees Celsius), °F (degrees Fahrenheit) and K (Kelvin). Sensor “n” settings Enabled Enable or disable sensor “n”. Alias A description for sensor “n”.

  • Page 27: Wind Direction Sensor

    4.7.1 Tilting function Picture 24: Menu tilting function The tilting functionality is normally wanted when using venetian blinds. The Vesta Building Controller supports two tilting types: fixed tilting and tilting during day. In this menu both kinds of tilting can be configured for each group.
  • Page 28 Configuration Global settings Group Group selection. Alias Shows the alias of the current selected group. Fixed tilting settings Enabled Enable or disable fixed tilting functionality. When fixed tilting is disabled, no fixed tilting command will be executed. Fixed The fixed tilting position. This position can be set from 0% to 100%. 0% means venetian blinds fully closed, 100% means venetican blinds fully opened.

  • Page 29: Sun Function

    Configuration 4.7.2 Sun function Picture 25: Menu sun function The sun function will steer the sunshade as function of the measured sun intensity. Global settings Group Group selection. Alias Shows the alias of the current selected group. Enabled Enable or disable the sun function. Sun threshold Sun threshold low value.

  • Page 30: Temperature Function

    Configuration Function Active delay Set the function active time in minutes. When during this time the function conditions stay true (sun intensity equal or more than the sun threshold high level), the function becomes active. Inactive delay Set the function inactive time in minutes. When during this time the function conditions stay false (sun intensity below the low threshold), the function becomes inactive.

  • Page 31: Wind Function

    Configuration Function Active delay Set the function active time in minutes. When during this time the function conditions stay true, the function becomes active. Inactive delay Set the function inactive time in minutes. When during this time the function conditions stay false, the function becomes inactive.

  • Page 32: Wind Direction Function

    Configuration 4.7.5 Wind direction function Picture 28: Menu wind direction function The wind direction function will steer the sunshade as function of the wind speed in combination with the wind direction. Global settings Group Group selection. Alias Shows the alias of the current selected group. Enabled Enable or disable the wind direction function.

  • Page 33: Rain Function

    Configuration 4.7.6 Rain function Picture 29: Menu rain function The rain function will steer the sunshade as function of the rain. Global settings Group Group selection. Alias Shows the alias of the current selected group. Enabled Enable or disable the rain function. Function Active delay Set the function active time in seconds.

  • Page 34: External Inputs Function

    Configuration Inactive delay Set the function inactive time in minutes. When during this time the function conditions stay false (window cleaning input inactive), the function becomes inactive. 4.7.8 External inputs function Picture 31: Menu external inputs function The external inputs function will steer the sunshade as function of the external inputs.

  • Page 35: Fire Function

    Configuration Global settings Group Group selection. Alias Shows the alias of the current selected group. Enabled Enable or disable the hand function. Function Inactive delay Set the function inactive time in seconds. When during this time the function conditions stay false, the function becomes inactive. Tilting Set the desired tilting type for the external inputs function active state.

  • Page 36: Clock Function

    Configuration 4.7.11 Clock function Picture 34: Menu clock function The clock function will steer the sunshade as func- tion of programmed time slots. Global settings Group Group selection. Alias Shows the alias of the current selected group. Enabled Enable or disable the clock function. Clock moment Moment Select the time slot to modify.

  • Page 37: Troubleshooting

    Troubleshooting Troubleshooting Fault Possible cause Remedy The device doesn’t work at all. No power supply or defective Check if the green LED on the fuse. front is on. If not check the power supply and fuse. The display is very difficult to The backlight is off.

  • Page 38: Technical Data

    Technical data Technical data Power supply: 230 V~, 50 Hz Rated power: 30 W Fuse: 500 mAT, 5 × 20 mm Output: Relay output, potential-free 12A, 230 V~, cos ϕ ≥ 1 Maximum load:: 12A, 24 V= Switching time: 0.1s – 3600s 0.1s –...
