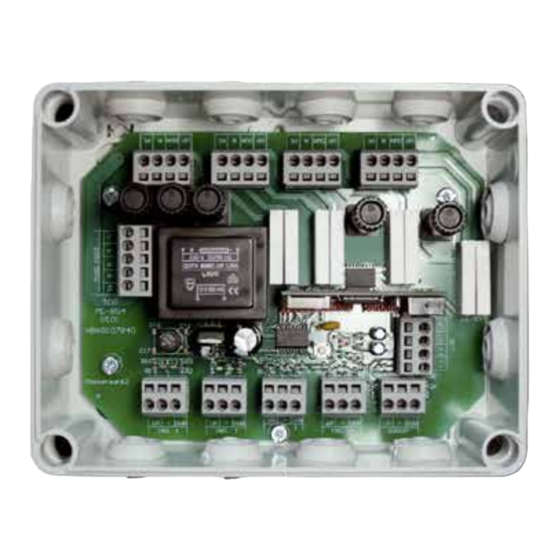

Vestamatic MC BS4 Installation And Operating Instructions

Microprocessor-powered BUS motor controller for four sunshades
Direct connection available for four 230VAC motors
Connection available for one programmable group button and four
individual buttons
Separate connection points for mains supply and central transmission
Secure connection via cage clamp connection up to 2.5 mm²
Easy to configure with BS Config PC software
Operating modes and motor run time can be individually set
Compatible with all Vestamatic BUS central controls, e.g. Vesta
Building Controller and Vesta Building Controller Compact
© Vestamatic GmbH
MC BS4
Art.-no.:
01078040

Short description

Wiring diagram

1/2
G
MC BS4
BUS motor control for controlling of 4 sunshade devices
with groups and individual operating.
Installation and Operating Instructions

Safety precautions

Ä
– Contact a professional electrician to install the control system,
because the control system requires a power supply of
230VAC, 50 Hz.
– Check the control system for signs of mechanical damage after
unpacking. If you notice any shipping damage, do not start up
the control system and notify your supplier immediately.
– The control system should only be used for the purpose
specified by the manufacturer (refer to the operating instruc-
tions). Any changes or modifications thereof are not permis-
sible and will result in loss of all warranty claims.
– If the control unit cannot be operated without presenting a
hazard, it must be switched off and prevented from being
switched on unintentionally.
– Turn off the power supply and prevent it from being switched
on unintentionally before performing work on any windows,
control or sunshades driven by the control system.
MC BS4
Art.-no.: 01078040
Subject to modifications.
