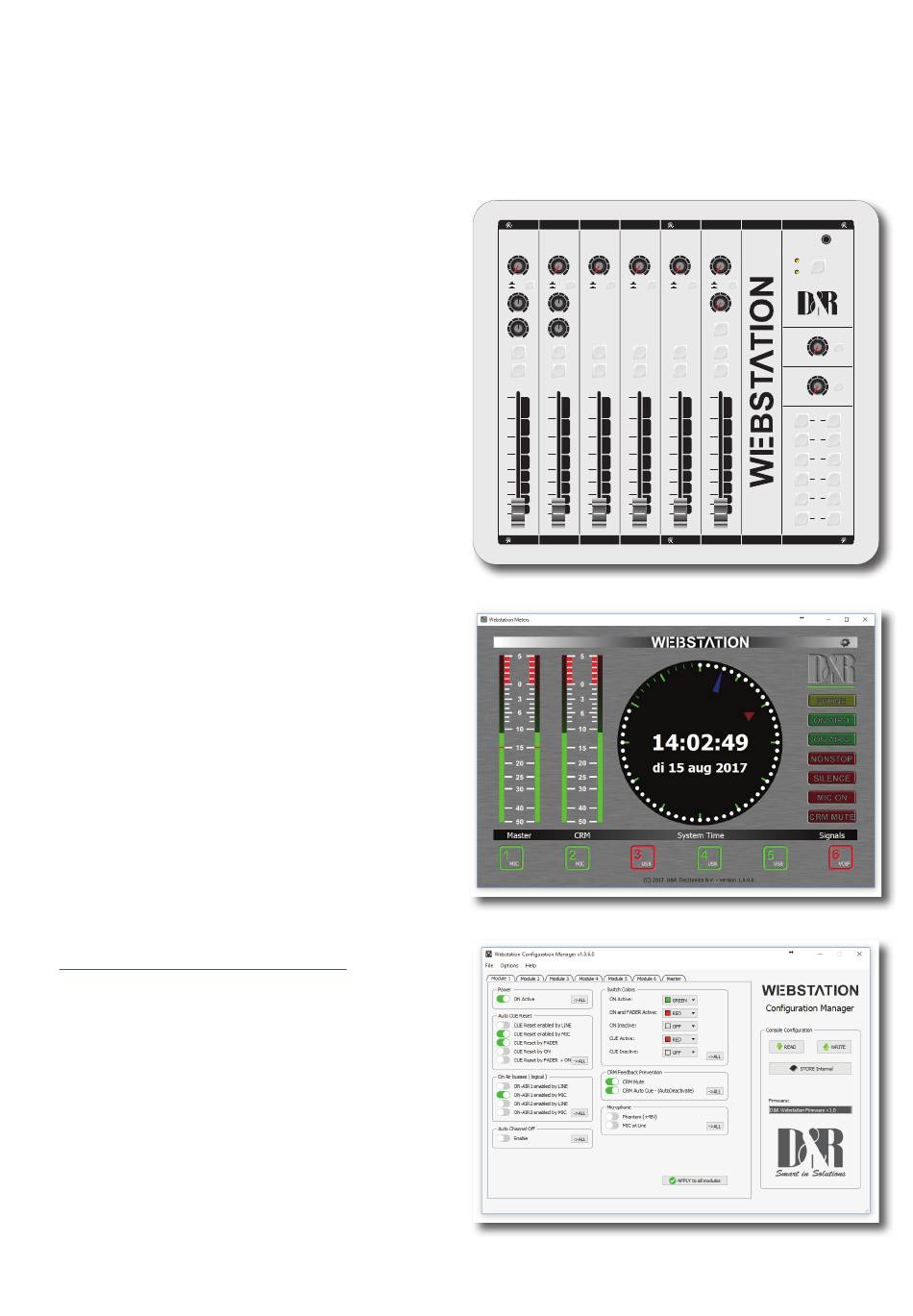

2 INTRODUCTION MIXER UNIT

The Webstation mixer is designed as an 6 channel ON-AIR/Production mixer with all features you need to make
professional radio productions.
2.1 MIC / LINE MODULES 1-2
• 2x Professional extremely low noise balanced Mic pre-amps with 48 volt phantom powering on XLR.
• Two stereo line inputs.
• Every input with insert for processors.
• Gain control to adjust the incoming mic or line level.
• Two band stereo equalizer.
• Stereo CUE switch for pre fade listening.
• ON switch. (also voicetrack buss activation)
• 100 mm professional N-Alps fader with fader start.
• Stereo VCA fader control.
2.2 USB / LINE MODULES 3-5
• Input selectable between USB or stereo Line.
• Gain control for incoming signals.
• Stereo CUE switch for pre fade listening.
• ON switch.
• 100 mm professional N-Alps fader with fader start.
• Stereo VCA fader control.
2.3 VOIP/ LINE MODULE 6
• Input selectable between VoIP or stereo Line.
• Stereo line input can be used for external Hybrid.
• Gain control for incoming signals.
• VoIP send control for outgoing level.
• Stereo CUE switch for pre fade listening.
• ON switch.
• 100 mm professional N-Alps fader with fader start.
• Stereo VCA fader control.
2.4

MASTER SECTION

• Master controls for Phones/CRM
• CRM section with Cue Reset and Auto Cue.
• NON-STOP switch routes module 3 (USB stereo input) di-
rectly to the main program Cinch connectors.
• 12 free programmabled control switches for music play-out
systems.
• Built in Voice Tracking buss.
• Cue bus is also communication buss
2.5

SOFTWARE

• All Software is available from the D&R WIKI page:
http://www.d-r.nl/wiki/dokuwiki/index.php
• All modules individually programmable
• Many Master functions individually programmable.
• USB control section allows play-out software to be con-
trolled by the mixer.
W E B S T A T I O N M a n u a l P a g e 9
1 2 3 4 5
Gain Gain Gain Gain
0 10 0 10 0 10 0 10 0
Line Line Line Line Line
Mic Mic USB USB USB
High High
- + - +
Low Low
- + - +
Cue Cue Cue Cue
On On On On
0 0 0 0
5 5 5 5
10 10 10 10
15 15 15 15
20 20 20 20
25 25 25 25
30 30 30 30
40 40 40 40
00 00 00 00
6 Master
Phones
NonStop
! ! (USB to OnAir)
L
Gain Gain
Trim
R
10 0 10
Line
VOIP
VoIP
Send
0 10
Conn
Phones
Cue Cue
Cue Reset
0 10
On On
CRM
Auto Cue
0 10
0 0
1
5 5
10 10
2
15 15
3
20 20
4
25 25
30 30
5
40 40
00 00
6
A B
Control
