Webstation Meters

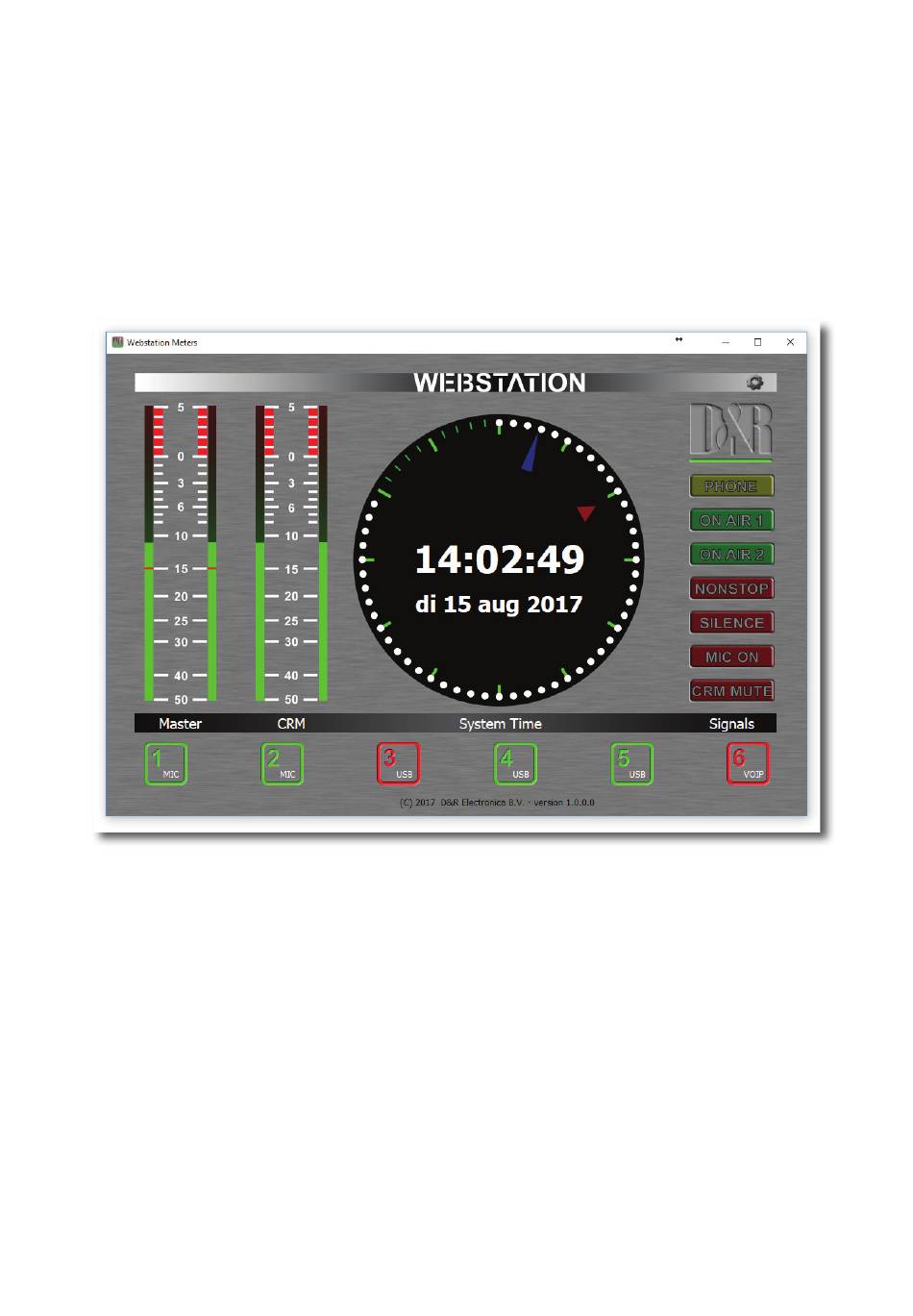

Webstation Meters is an application which shows metering levels and states of the Webstation console.
The six buttons in the lower section of the meter screen indicate which source is selected and are also functioning as the Channel
ON switch when clicked with a mouse (or touch screen) The NONSTOP indicator can also be used as remote control by clicking on
1) Double click on Webstation Meters vx.x.x.x – Setup.exe
it.
2) Follow the installation instructions on the screen
3) Double click on the icon on your desktop to run the application
4) Press the settings symbol in the upper right corner
5) Set remote host to: 127.0.0.1
6) Check the Use defaults checkbox and press [OK]
7) A green line below the D&R logo indicates the application is online (receiving data)
