DirectOut Technologies
Clock output
line inputs
usb Port
Routing Matrix
Remote Control
Power supply

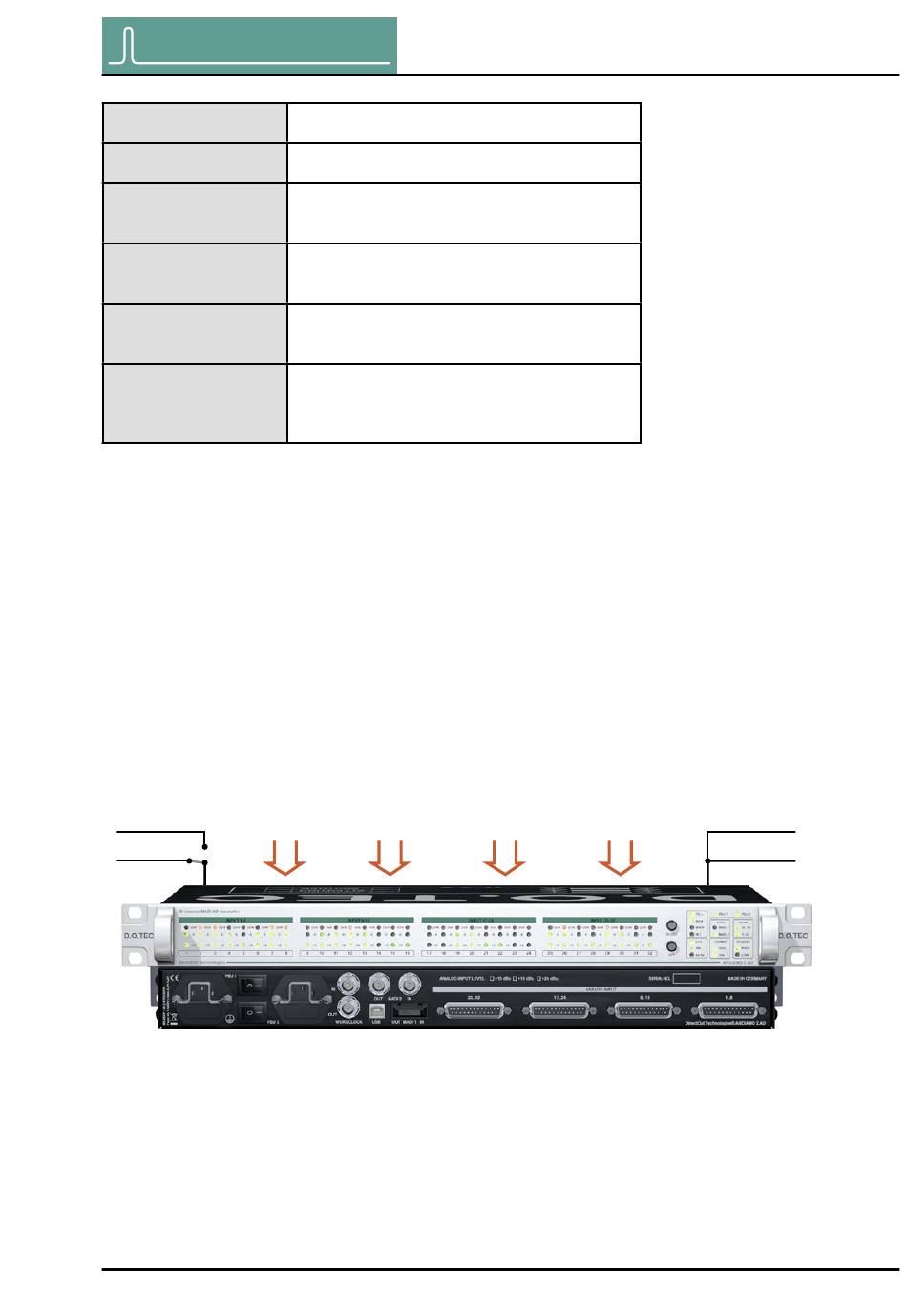

Applications

ANDIAMO 2.AD can be used for conversion and recording of analog
signals.
Typical applications include:
• recording line signals
• conversion of a high number of channels from analog to digital
• redundant recording using both MADI I/Os
• format conversion of MADI signals
• ...
MADI In
MADI In
© 2013 DirectOut GmbH
®
1 x Word clock coaxial BNC
4 x DSUB-25 (8 channels each)
USB 2.0 port for firmware
updates and remote control.
Signal routing on a per channel
basis - 96 x 64 routing matrix.
Software Remote control via USB,
Serial over MADI or MIDI over MADI
This device is equipped with two wide
range power supplies (84 V to 264 V
AC / 47 Hz to 63 Hz / safety class 1).
analog in - 4 x 8 channels
®
D.O.TEC ANDIAMO 2.AD Hardware Guide - Version 1.0
CHAPTER 1: Overview
MADI Out
MADI Out
page 7 of 44
