Menu Control

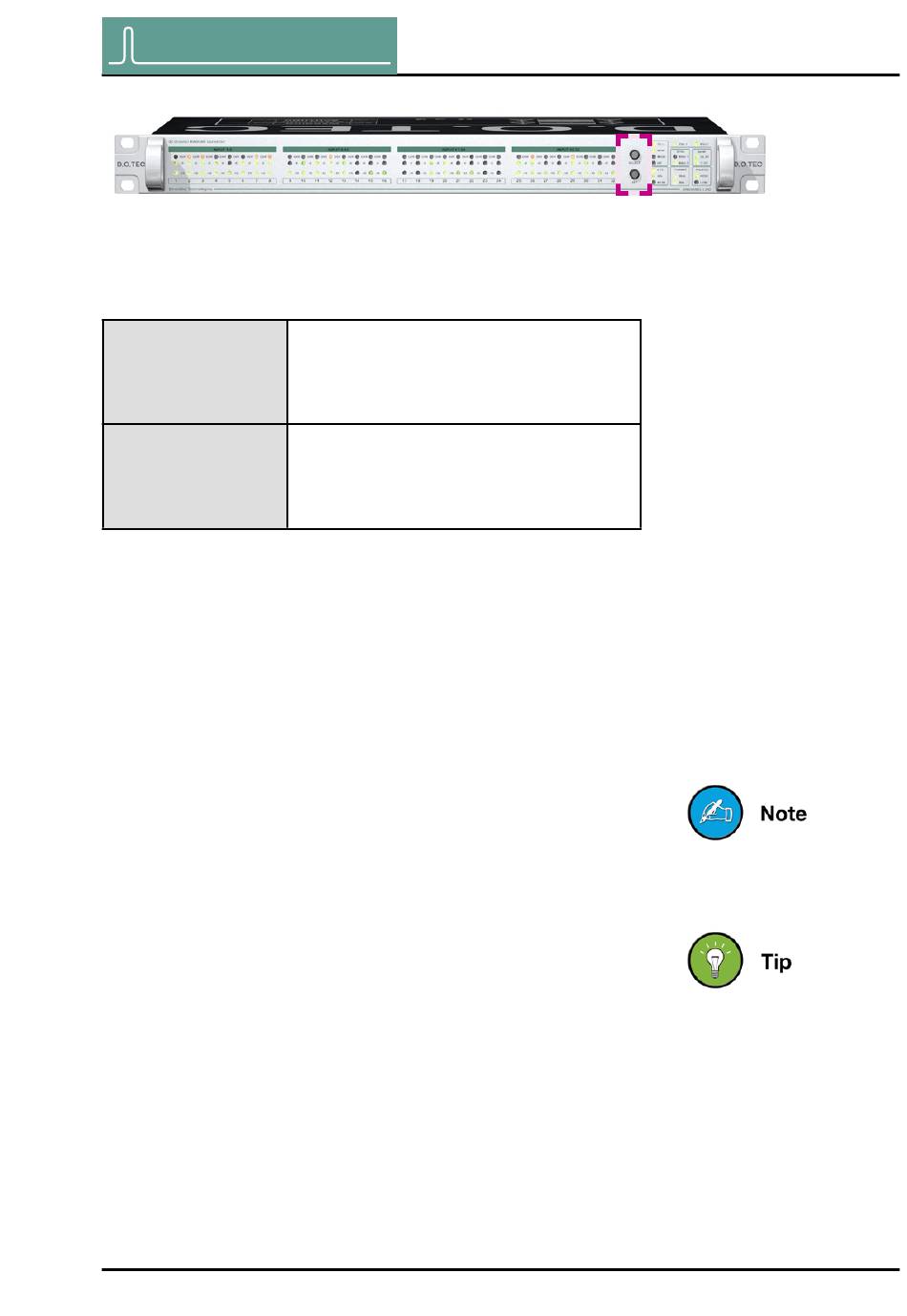

All functions of the converter can be accessed using a simple menu.
Two push buttons are used for navigation and settings.
sElECt
sEt
When the menu mode is active a LED will blink in one of the sec-
tions while the remaining LEDs of this section are glowing weak.
This indicates:
• a setting can be adjusted in this section
• the blinking LED(s) is the selected option in this section
After a short period of time the menu mode is exit automatically.
See also „CHAPTER 5: Menu Navigation" on page 32.
Blinking LEDs are also used to indicate an error (e.g. missing sync).
Concentrate on the section where one LED is blinking and the re-
maining LEDs are glowing weak.
Most settings can be adjusted either locally or via the remote ap-
plication (ANDIAMO Remote).
A few settings can be accessed via the remote application only:
• Confi guration of the system fan control
• Redundancy Mode (only devices with two MADI I/Os)
• Routing Matrix
• USB Embedder
• Display Dark (only ANDIAMO.MC)
The settings are stored inside the device.
© 2013 DirectOut GmbH
®
button
Press longer than 2 seconds to
enter the menu. Press short for
navigation in menu mode.
button
Only active in menu mode. Press short
to adjust a setting. Press longer than
2 seconds to toggle the Matrix Mode.
®
