DirectOut Technologies

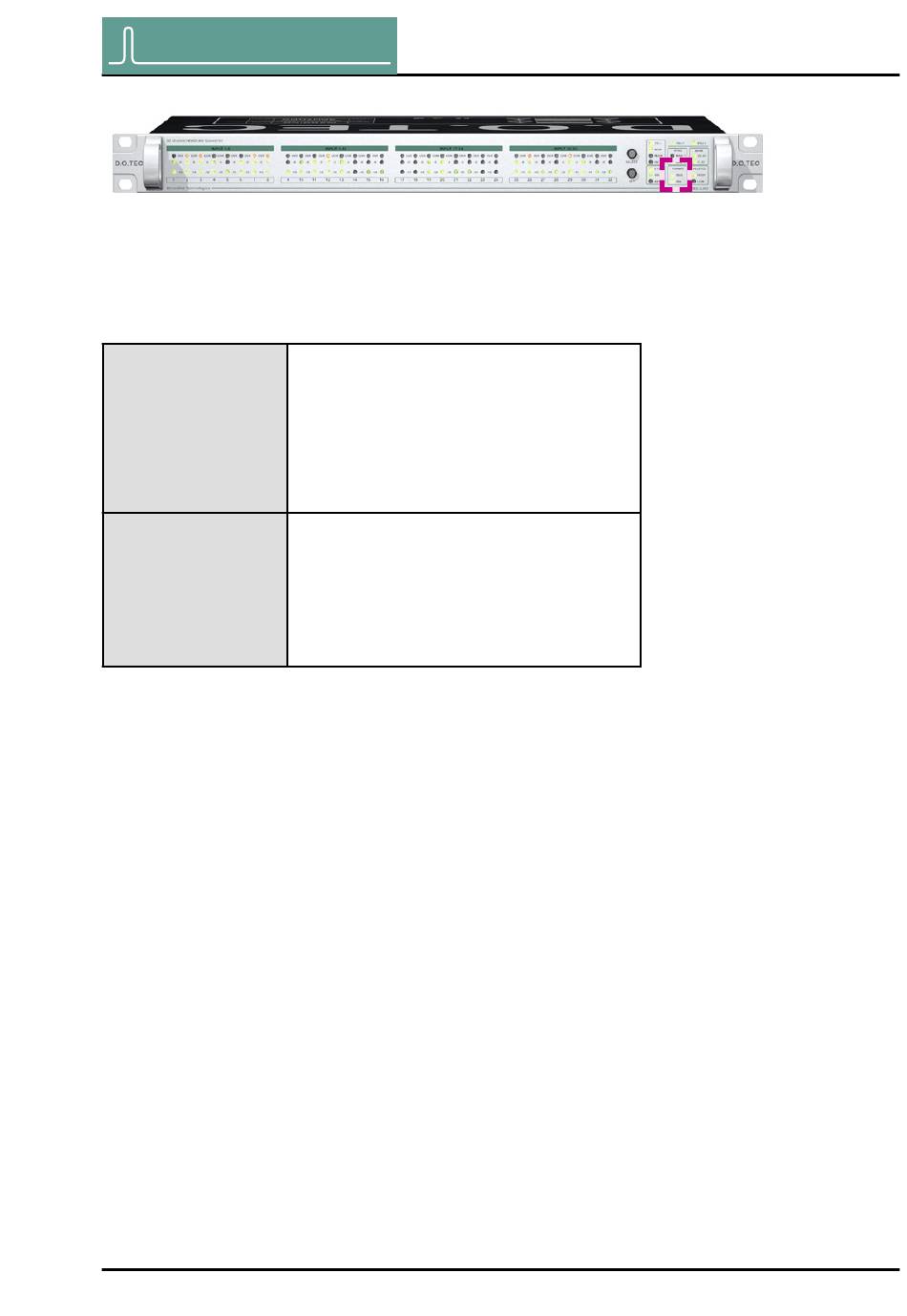

output format
The format of the MADI output signal can be defi ned - allowing for
format conversion of the MADI signal. The output signal status is
indicated by two LEDs.
56 ch
96k
© 2013 DirectOut GmbH
®
lEd (green): indicates the
channel format (64 ch or 56 ch)
of the MAdi output signal.
LED ON = MADI output is
set to 56 (28) channel mode.
LED OFF = MADI output is
set to 64 (32) channel mode.
lEd (yellow): indicates the frame
format @2 fs (48k frame or 96k frame)
of the MAdi output signal.
LED ON = MADI output is set to 96k Frame
LED OFF = MADI output is set to 48k Frame
96k Frame is available with 2 FS only.
®
D.O.TEC
ANDIAMO 2.AD Hardware Guide - Version 1.0
CHAPTER 4: Operation
page 25 of 44
