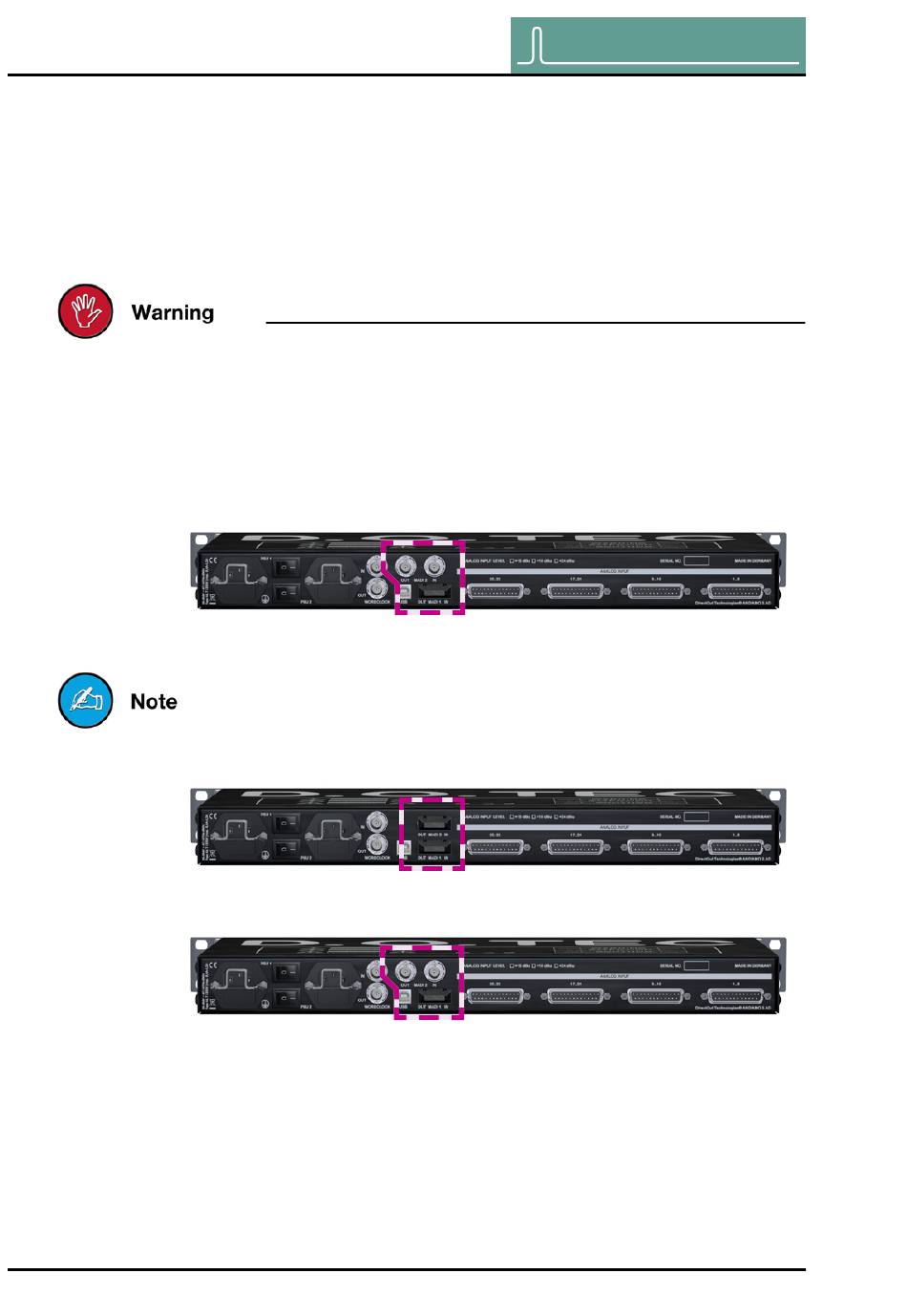

CHAPTER 3: Installation
ANDIAMO 2.AD - SC /SC version (optical / optical)
ANDIAMO 2.AD - BNC / SC version (coaxial / optical)
page 14 of 44
ChAPtER 3: installation
installing the device
1.
Open the packaging and check that the contents have been
delivered complete and undamaged.
2.
Fix the device in a 19'' frame with four screws, or place it on
a non-slip horizontal surface.
warning
Avoid damage from condensation by waiting for the device to adapt
to the environmental temperature. Proper operation can only be
guaranteed between temperatures of 5º C and 45º C and a maxi-
mum relative humidity of 80%, non-condensing.
Ensure that the unit has suffi cient air circulation for cooling.
3.
Remove the protective cap from the optical MADI port(s)
before use.
Retain the protective cap if the optical port is unused. This will pro-
tect against soiling which can lead to malfunction.
4.
Connect signal cable for the MADI signals.
®
D.O.TEC
ANDIAMO 2.AD Hardware Guide - Version 1.0
DirectOut Technologies
© 2013 DirectOut GmbH
®
