Bezel Connector and LEDs
3
3-2
FD ACT
10
100
1000
ENET

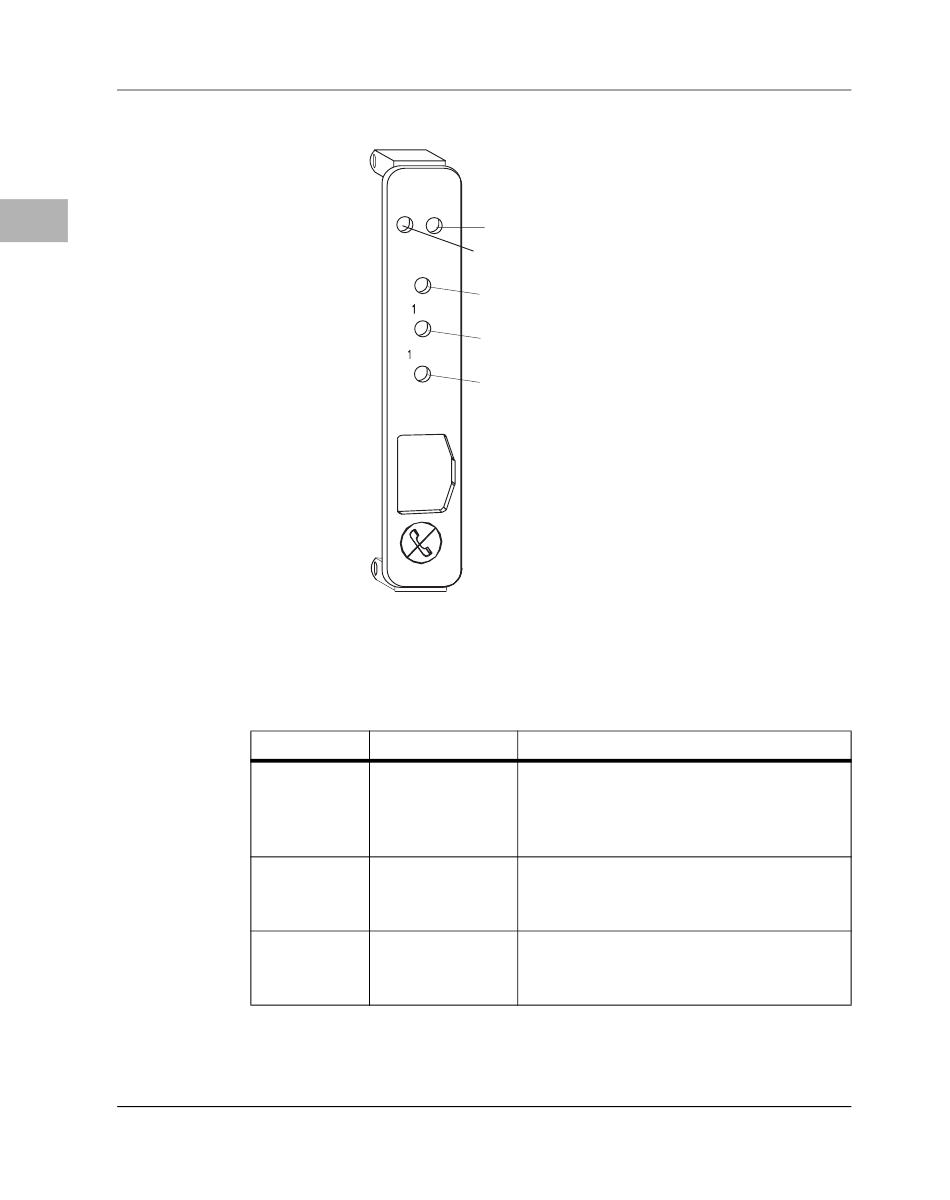

Figure 3-1. Bezel Connector and LEDs

Table 3-1. Bezel Connector and LEDs

Label Component
ACT Activity status
LED
FD Duplex status
LED
10 10 Mb/s
Activity Status LED
Duplex Status LED
10 Mb/s Link/Speed LED
100 Mb/s Link/Speed LED
1000 Mb/s Link/Speed LED
Description
An amber LED. ON indicates receive
(RX) and transmit (TX) network activity
is occurring. OFF indicates no network
activity.
An green LED. ON indicates that full
duplex mode is enabled and OFF indicates
that half duplex mode is enabled.
A green LED. ON indicates 10 Mb/s mode
is selected and a CD signal has been
detected.
Gigabit Ethernet/82543 PMC Installation and Use
