Functional Components

2
Functional Components

Intel 82543GC Ethernet LAN Controller

2-2
Automatic polarity correction
IEEE 802.3u auto-negotiation with next-page support for automatic
speed and duplex configuration
Front panel light emitting diode (LED) status indicators

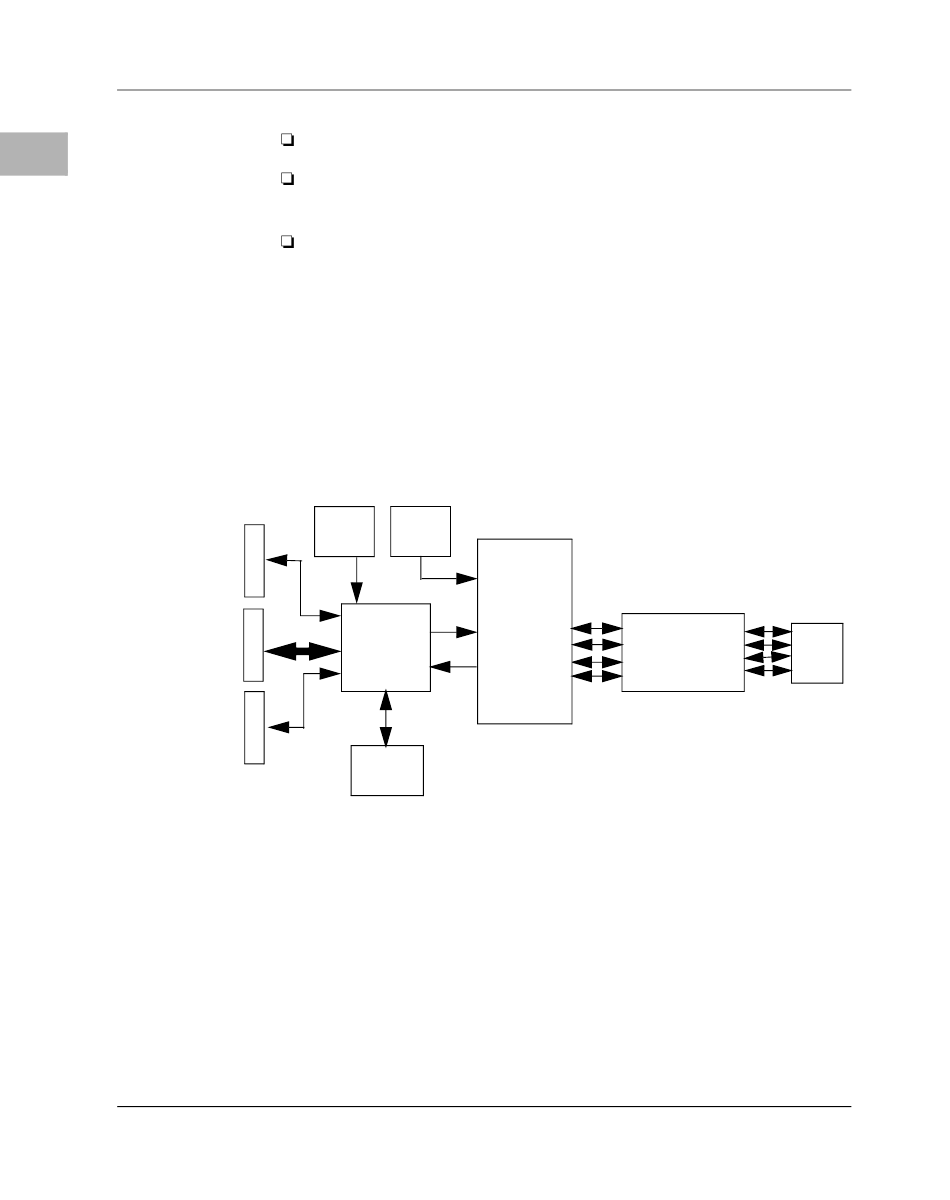

Figure 2-1 shows a functional block diagram of the Gigabit
Ethernet/82543 PMC Module. As the diagram shows, the key functional
components are the Intel 82543GC Ethernet LAN Controller, the Marvell
Alaska TM 88E1000 Gigabit Ethernet Transceiver chip, and serial
electrically erasable programmable read-only memory (EEPROM).
Clock Clock
J1
Intel
PCI Bus
82543GC
J2
Ethernet
Controller
J3
Serial
EEPROM

Figure 2-1. Functional Block Diagram

The Intel 82543GC Ethernet LAN Controller is a PCI bus controller that
supports IEEE 802.3 10 Mb/s, IEEE 802.3u 100 Mb/s, and IEEE 802.3z
and 802.3ab 1000 Mb/s data transfer rates. The controller is capable of
operating at bus speeds of 33 or 66 MHz, using bus widths of 32 or 64 bits.
Marvell
TM
Alaska
88E1000
10/100/1000-
Gigabit
Mb/s Magnetics,
Ethernet
Network Port,
Transceiver
and Switch
Gigabit Ethernet/82543 PMC Installation and Use
Cable (4 Pair)
RJ-45
