Installation and Removal
1

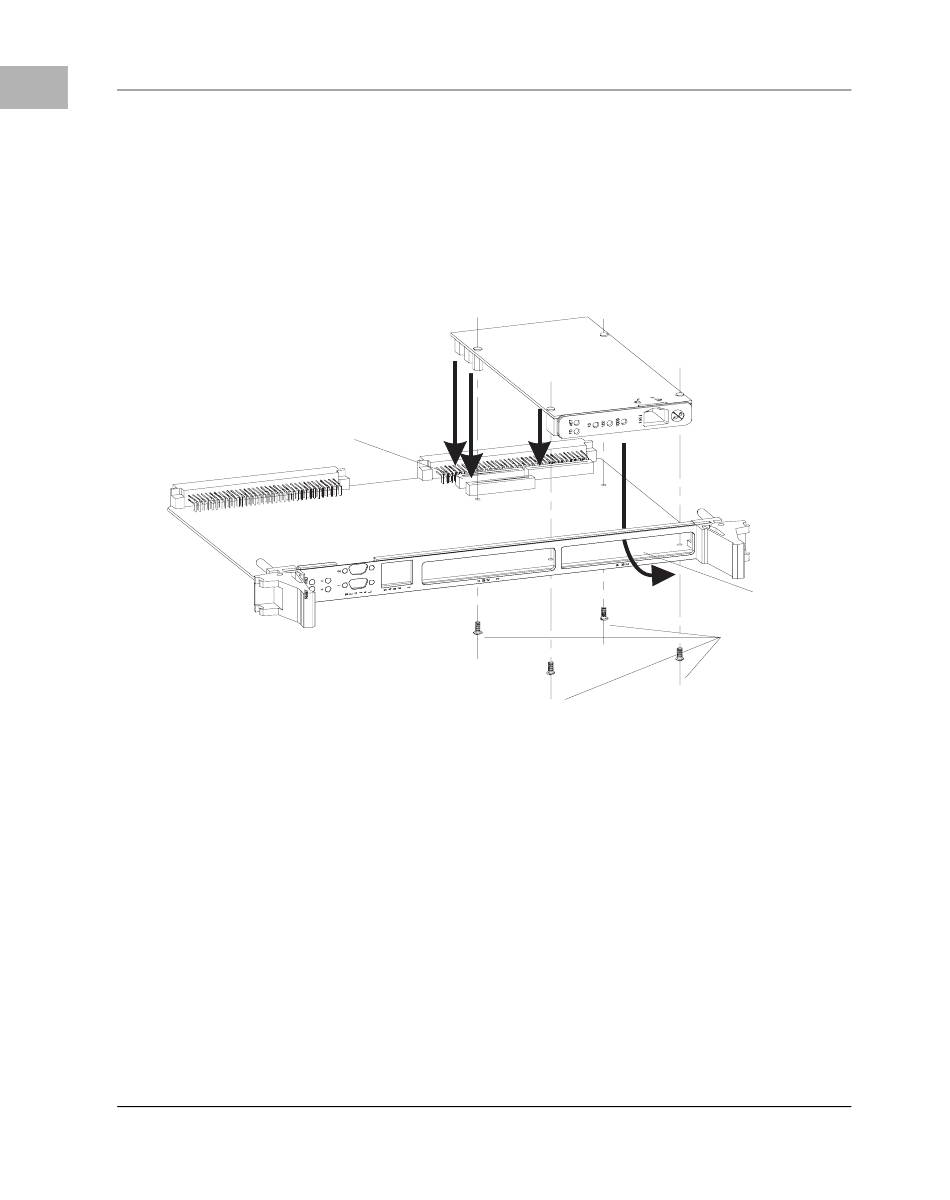

Figure 1-3. Installing the Gigabit Ethernet/82543 PMC Module on Host Board

1-12
equipment attached to the rear transition board may occur.
Therefore, only install and use the PMC module together with the
Embedded Communications Computing's carrier card.
1. Attach an ESD strap to your wrist. Attach the other end of the ESD
strap to the chassis as a ground. The ESD strap must be secured to
your wrist and to ground throughout the procedure.
PMC Connectors
2. Perform an operating system shutdown. Turn the AC or DC power
off and remove the AC cord or DC power lines from the system.
Remove the chassis or system cover(s) as necessary to gain access
to the PMC module or host board.
3. Carefully remove the host board (either SBC or carrier card) from
its card slot and place it on a clean and adequately protected working
surface (preferably an ESD mat) with the backplane connectors
facing you.
4. Remove PMC slot filler panels from front panel of the carrier card.
Gigabit Ethernet/82543 PMC Installation and Use
Front Panel PMC cutout
Screws
