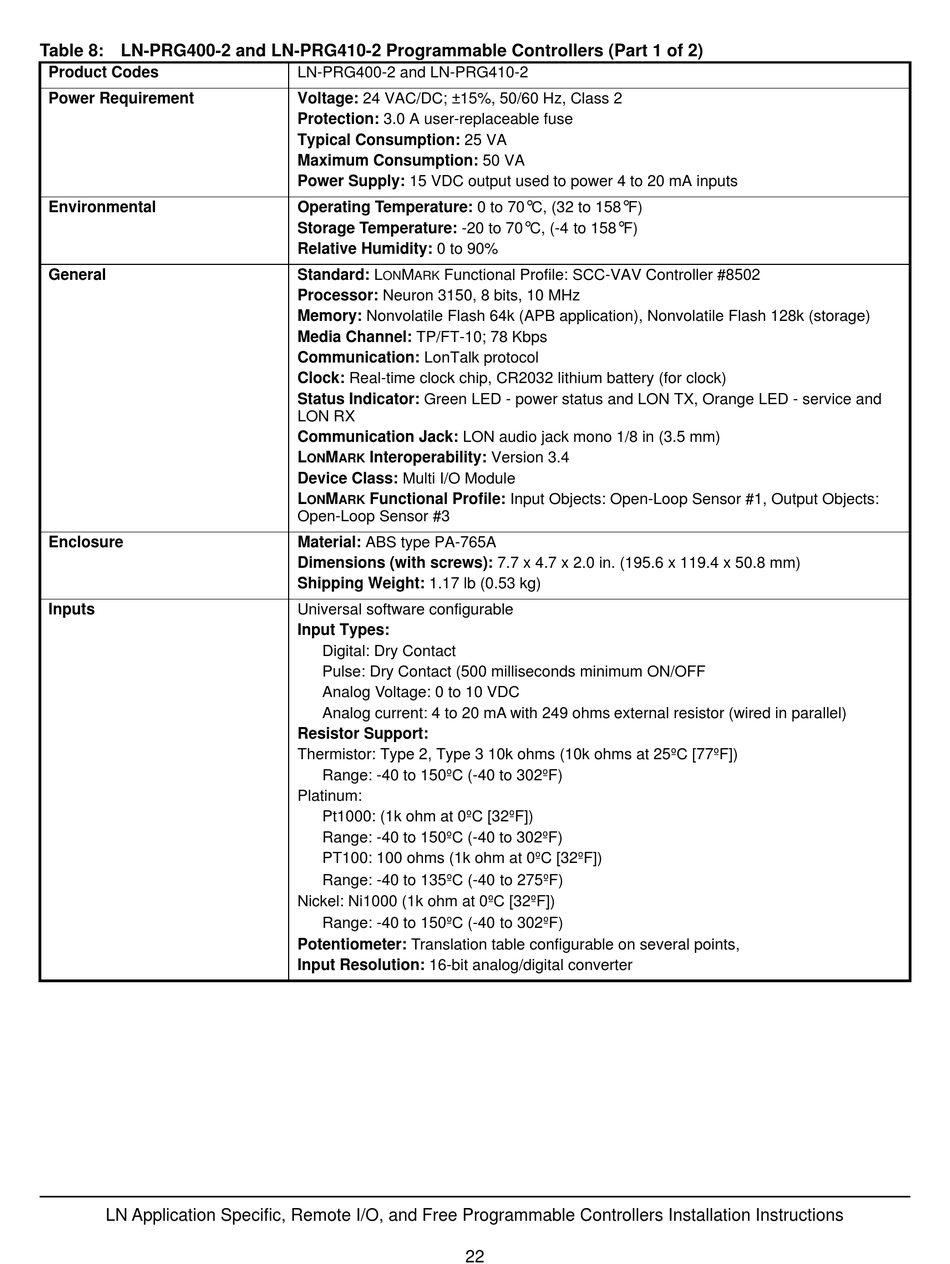

Table 8: LN-PRG400-2 and LN-PRG410-2 Programmable Controllers (Part 1 of 2)
Product Codes
Power Requirement
Environmental
General
Enclosure
Inputs
LN Application Specific, Remote I/O, and Free Programmable Controllers Installation Instructions
LN-PRG400-2 and LN-PRG410-2
Voltage: 24 VAC/DC; ±15%, 50/60 Hz, Class 2
Protection: 3.0 A user-replaceable fuse
Typical Consumption: 25 VA
Maximum Consumption: 50 VA
Power Supply: 15 VDC output used to power 4 to 20 mA inputs
Operating Temperature: 0 to 70
Storage Temperature: -20 to 70
Relative Humidity: 0 to 90%
Standard: L M Functional Profile: SCC-VAV Controller #8502
ON ARK
Processor: Neuron 3150, 8 bits, 10 MHz
Memory: Nonvolatile Flash 64k (APB application), Nonvolatile Flash 128k (storage)
Media Channel: TP/FT-10; 78 Kbps
Communication: LonTalk protocol
Clock: Real-time clock chip, CR2032 lithium battery (for clock)
Status Indicator: Green LED - power status and LON TX, Orange LED - service and
LON RX
Communication Jack: LON audio jack mono 1/8 in (3.5 mm)
L M Interoperability: Version 3.4
ON ARK
Device Class: Multi I/O Module
L M Functional Profile: Input Objects: Open-Loop Sensor #1, Output Objects:
ON ARK
Open-Loop Sensor #3
Material: ABS type PA-765A
Dimensions (with screws): 7.7 x 4.7 x 2.0 in. (195.6 x 119.4 x 50.8 mm)
Shipping Weight: 1.17 lb (0.53 kg)
Universal software configurable
Input Types:
Digital: Dry Contact
Pulse: Dry Contact (500 milliseconds minimum ON/OFF
Analog Voltage: 0 to 10 VDC
Analog current: 4 to 20 mA with 249 ohmsexternal resistor (wired in parallel)
Resistor Support:
Thermistor: Type 2, Type 3 10k ohms (10k ohms at 25ºC [77ºF])
Range: -40 to 150ºC (-40 to 302ºF)
Platinum:
Pt1000: (1k ohm at 0ºC [32ºF])
Range: -40 to 150ºC (-40 to 302ºF)
PT100: 100 ohms (1k ohm at 0ºC [32ºF])
Range: -40 to 135ºC (-40 to 275ºF)
Nickel: Ni1000 (1k ohm at 0ºC [32ºF])
Range: -40 to 150ºC (-40 to 302ºF)
Potentiometer: Translation table configurable on several points,
Input Resolution: 16-bit analog/digital converter
22
° °
C, (32 to 158 F)
° °
C, (-4 to 158 F)
