LN-Display
Installation Instructions
LN-DSWSC1-0, LN-DSWSC2-0
Applications
The LN-Display controller has multifunction LCD
display. The controller can operate with LN Series
controllers or other multi-vendor open and
interoperable L
W
® controllers, and can display
ON
ORKS
up to 250 network variables.
The controller is based on L
peer-to-peer communication between controllers. The
Display is available in two casings: surface and flush
mount.
North American Emissions Compliance
United States
This equipment has been tested and found to
comply with the limits for a Class A digital device
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when this equipment is
operated in a commercial environment. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is
likely to cause harmful interference, in which case
the user will be required to correct the interference
at his/her own expense.
Canada
This Class (A) digital apparatus meets all
requirements of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la Classe (A) respecte
toutes les exigences du Règlement sur le matériel
brouilleur du Canada.
Installation
Dimensions

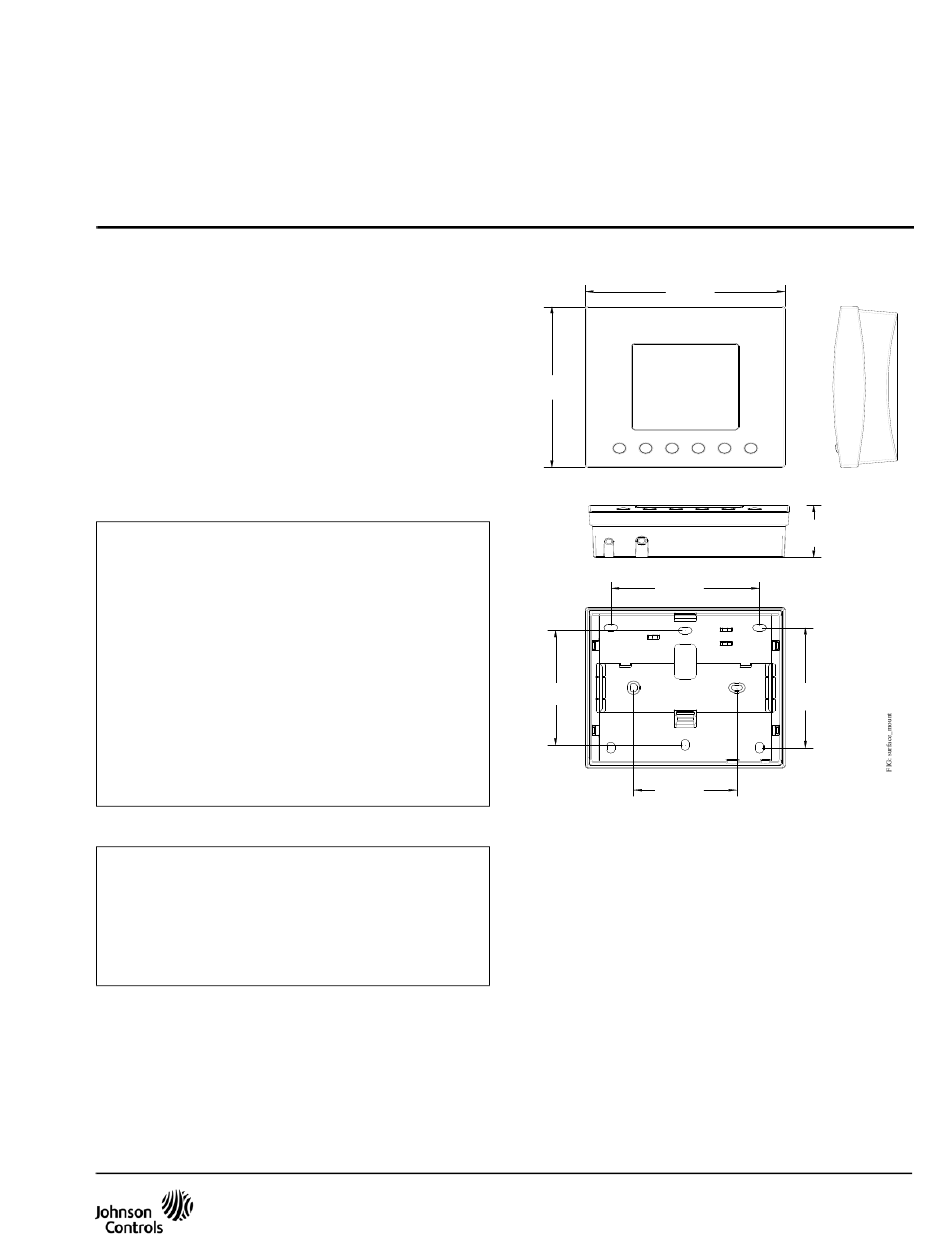

Figure 1 shows the LN-Display surface mount casing
dimensions.
W
technology for
ON
ORKS
FRONT VIEW
4.5687 in.
(116 mm)
4.5685
(116 mm)
BOTTOM VIEW
BACK VIEW
3.3959 in.
(86.25 mm)
3.2500 in.
(82.55 mm)
2.3620 in.
(59.22 mm)
Figure 1: Surface Mount Casing
Dimensions, in. (mm)
Figure 2 shows the flush mount casing dimensions.
LN-Display Installation Instructions
Code No. LIT-1201904
Issued April 24, 2014
Supersedes June 21, 2012
SIDE VIEW
1.4754 in.
(37.47 mm)
3.4100 in.
(86.61 mm)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LN-DSWSC1-0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Johnson Controls LN-DSWSC1-0

  • Page 1 LN-Display Installation Instructions Code No. LIT-1201904 LN-DSWSC1-0, LN-DSWSC2-0 Issued April 24, 2014 Supersedes June 21, 2012 Applications The LN-Display controller has multifunction LCD FRONT VIEW SIDE VIEW 4.5687 in. display. The controller can operate with LN Series (116 mm) controllers or other multi-vendor open and interoperable L ®...
  • Page 2 6.0000 in. (152.4 mm) SIDE VIEW FRONT VIEW 6.0000 in. (152.4 mm) 0.1813 in. (4.605 mm) 0.0800 in. 1.4754 in. BOTTOM VIEW (2.032 mm) (37.475 mm) Ø0.1540 5.4500 in. (138.43 mm) (3.91 mm) BACK VIEW 1.1543 in. (29.31 mm) 1.0000 in. (25.4 mm) 5.4500 in.
  • Page 3 North American Electrical Box 8. Reattach the front panel to the base plate by pressing gently on the Display until the panel clicks To mount the North American Electrical Box: into place. 1. Remove the Display panel from the device by European Electrical Box gently pressing on the panel and pulling the front Follow the steps in the North American Electrical Box...
  • Page 4: Location Considerations

    6. Connect the power and network communication 7. Connect power and network communication wires. wires. See the Wiring section for more information. 8. Reattach the front panel to the base plate by 7. Reattach the front panel to the base plate by pressing gently on the display until the panel clicks pressing gently on the Display until the panel clicks into place.
  • Page 5: Communications Wiring

    The minimum cable section for power wiring is Communications Wiring 18 AWG. We recommended using the heaviest gauge The approved cable type for LON communications is wire based on a maximum of 14 AWG and a minimum Level IV 22 AWG (0.65 mm) UNSHIELDED. You can of 18 AWG.
  • Page 6: Setup And Adjustments

    Services (LNS®) network management tool, such as specifications, replace the unit. For a replacement, LN-Builder. contact the nearest Johnson Controls® representative. To obtain the necessary files: 1. Run the installation setup to install the device plug-in and the latest version of the .xif and .apb files onto your computer.
  • Page 7: Troubleshooting

    Watchdog time out. The application is corrupted. 1 second On, Call your Johnson Controls representative to report the problem. 1 second Off The Status LED is located on the bottom right of the LCD display. It emits an orange light when the device is ON.
  • Page 8: Technical Specifications

    The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these specifications, contact the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication or misuse of its products.
