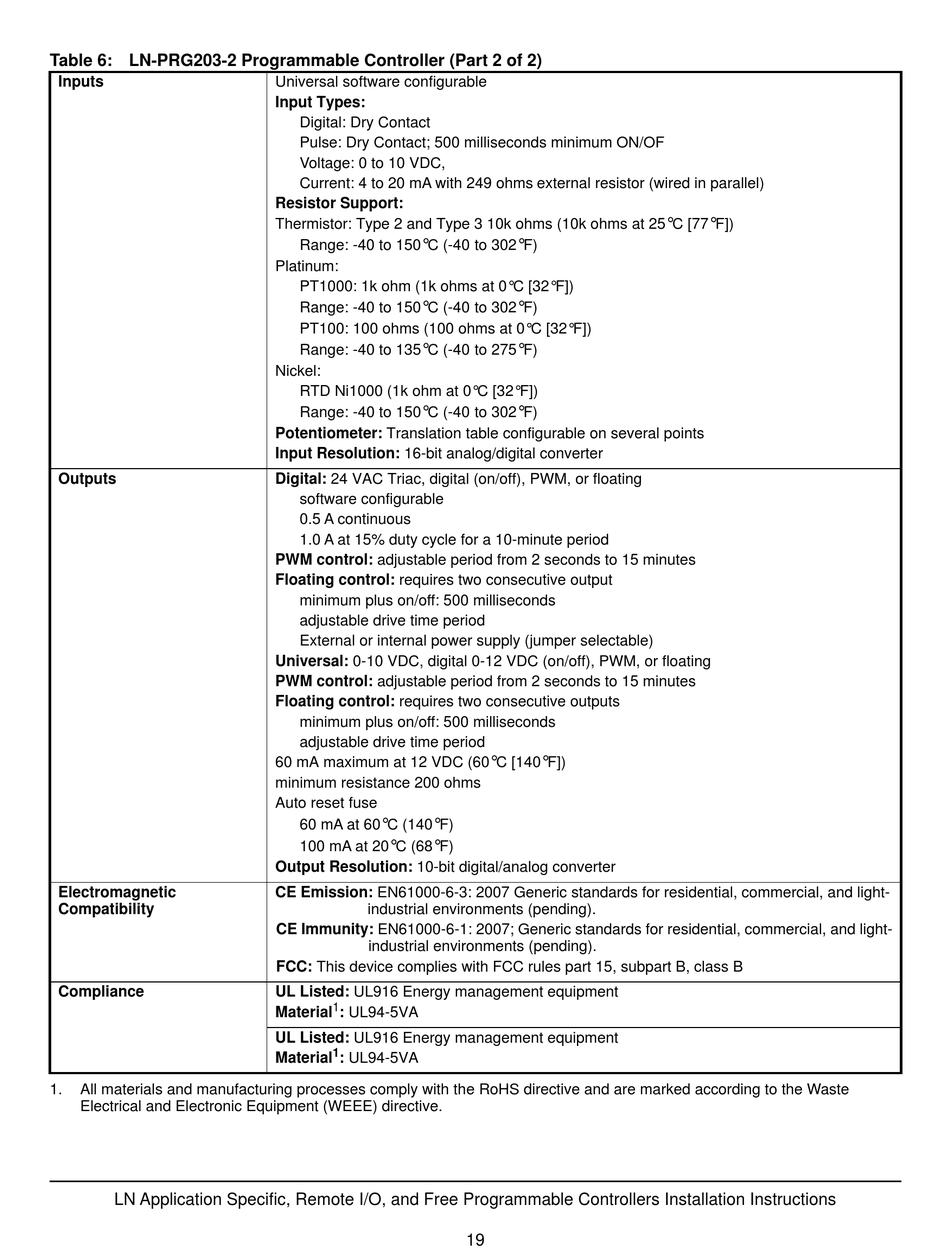

Table 6: LN-PRG203-2 Programmable Controller (Part 2 of 2)
Inputs
Outputs
Electromagnetic
Compatibility
Compliance
1. All materials and manufacturing processes comply with the RoHS directive and are marked according to the Waste
Electrical and Electronic Equipment (WEEE) directive.
LN Application Specific, Remote I/O, and Free Programmable Controllers Installation Instructions
Universal software configurable
Input Types:
Digital: Dry Contact
Pulse: Dry Contact; 500 milliseconds minimum ON/OF
Voltage: 0 to 10 VDC,
Current: 4 to 20 mA with 249 ohmsexternal resistor (wired in parallel)
Resistor Support:
Thermistor: Type 2 and Type 3 10k ohms (10k ohms at 25
°
Range: -40 to 150 C (-40 to 302
Platinum:
PT1000: 1k ohm (1k ohms at 0°C [32°F])
°
Range: -40 to 150 C (-40 to 302
PT100: 100 ohms (100 ohms at 0°C [32°F])
°
Range: -40 to 135 C (-40 to 275
Nickel:
RTD Ni1000 (1k ohm at 0°C [32°F])
°
Range: -40 to 150 C (-40 to 302
Potentiometer: Translation table configurable on several points
Input Resolution: 16-bit analog/digital converter
Digital: 24 VAC Triac, digital (on/off), PWM, or floating
software configurable
0.5 A continuous
1.0 A at 15% duty cycle for a 10-minute period
PWM control: adjustable period from 2 seconds to 15 minutes
Floating control: requires two consecutive output
minimum plus on/off: 500 milliseconds
adjustable drive time period
External or internal power supply (jumper selectable)
Universal: 0-10 VDC, digital 0-12 VDC (on/off), PWM, or floating
PWM control: adjustable period from 2 seconds to 15 minutes
Floating control: requires two consecutive outputs
minimum plus on/off: 500 milliseconds
adjustable drive time period
60 mA maximum at 12 VDC (60
minimum resistance 200 ohms
Auto reset fuse
° °
60 mA at 60 C (140 F)
° °
100 mA at 20 C (68 F)
Output Resolution: 10-bit digital/analog converter
CE Emission: EN61000-6-3: 2007 Generic standards for residential, commercial, and light-
industrial environments (pending).
CE Immunity: EN61000-6-1: 2007; Generic standards for residential, commercial, and light-
industrial environments (pending).
FCC: This device complies with FCC rules part 15, subpart B, class B
UL Listed: UL916 Energy management equipment
1
Material : UL94-5VA
UL Listed: UL916 Energy management equipment
1
Material : UL94-5VA
°
F)
°
F)
°
F)
°
F)
° °
C [140 F])
19
° °
C [77 F])
