68 8010co chassis installation
Figure 37

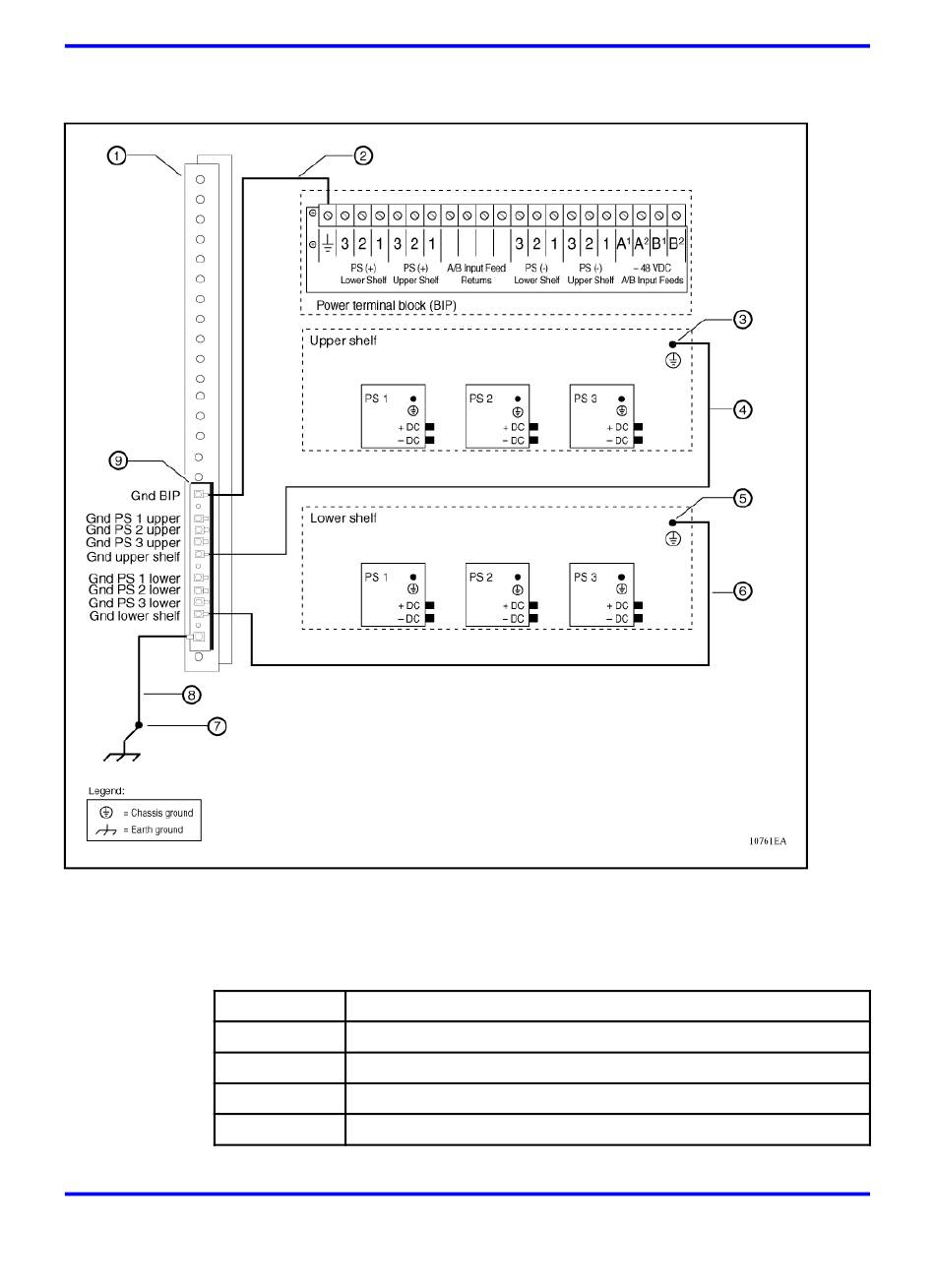

Chassis and 8004DC power supply grounding example
The following table describes the reference items shown in
"Chassis and 8004DC power supply grounding example" (page
Table 7
Item description for chassis and 8004DC power supply grounding
Item
1
2
3
4
Copyright © 2008 Nortel Networks
.
Description
Cabinet frame or equipment rack
AWG 6 ground lead (provided with BIP)
Upper shelf chassis ground stud
Upper shelf ground lead (not provided)
Nortel Ethernet Routing Switch 8600
Installation — Chassis
NN46205-303 02.01 Standard
30 May 2008
Figure 37
68).
