48 8010, 8006, and 8003 chassis installation
3
Copyright © 2008 Nortel Networks
.

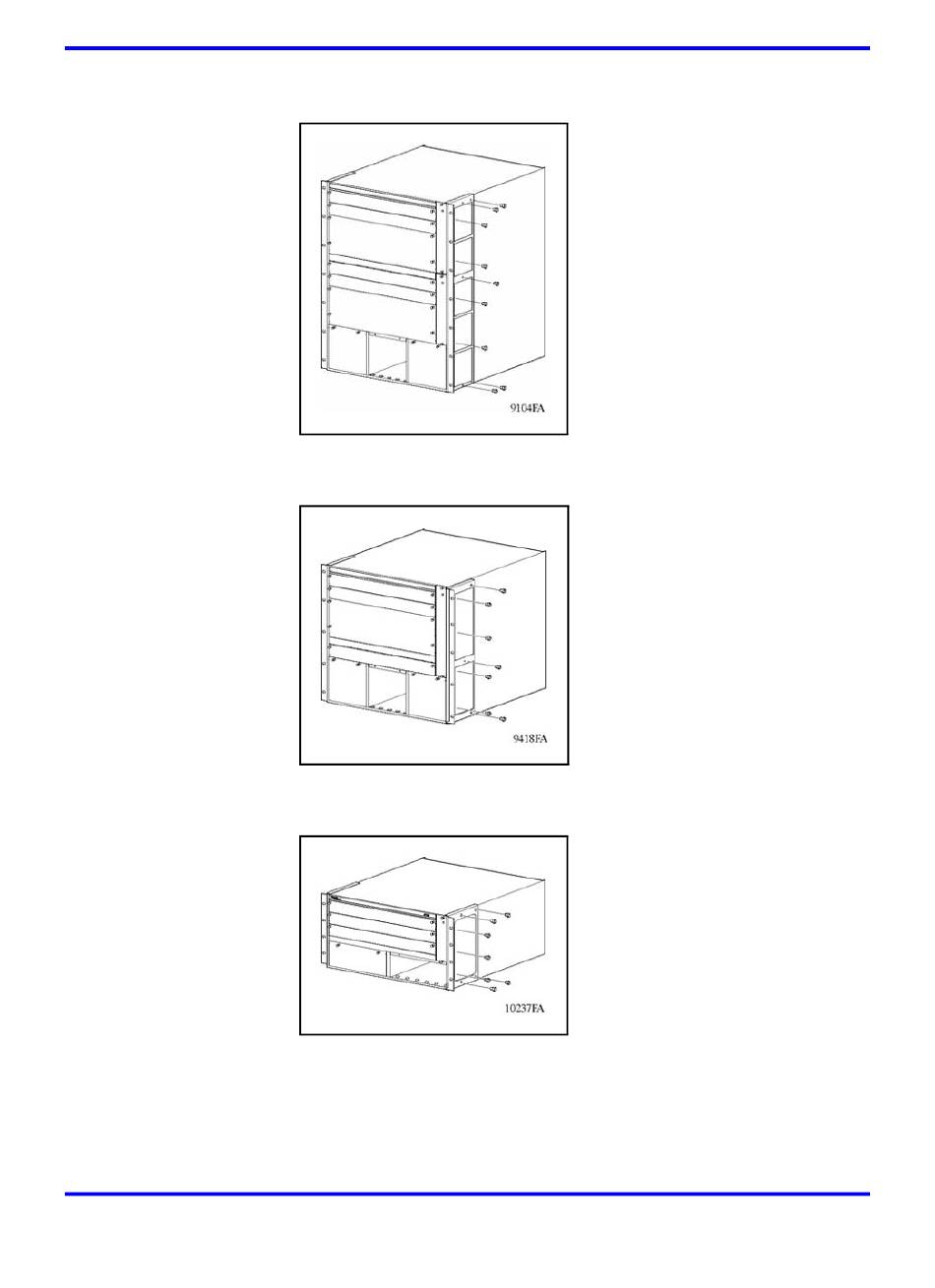

Figure 13
Attaching the rack-mounting brackets to the 8010 chassis
Figure 14
Attaching the rack-mounting brackets to the 8006 chassis
Figure 15
Attaching the rack-mounting brackets to the 8003 chassis
Measure the appropriate number of rack units of free vertical
space inside the rack and mark the spot.
For more information about the number of rack units to allocate
for each chassis, see
Nortel Ethernet Routing Switch 8600
Installation — Chassis
NN46205-303 02.01 Standard
30 May 2008
"Procedure job aid" (page 51).
