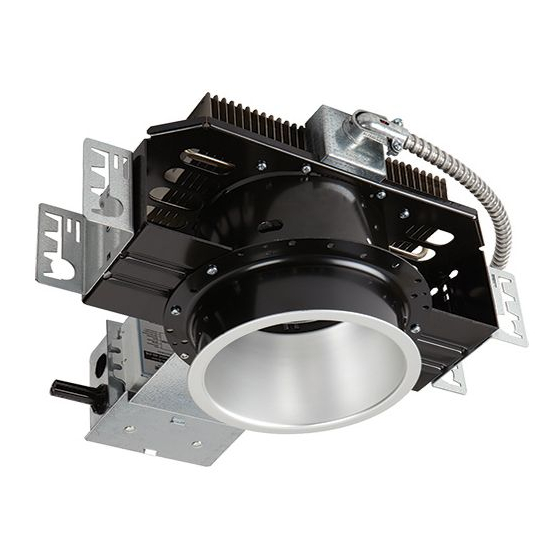

Cree ESSENTIA ESA-ADR-414 Installation Instructions

Cree ESSENTIA ESA-ADR-414 Installation Instructions

4-inch downlight and 6, 8-inch wall wash

Advertisement

Quick Links

IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
To reduce the risk of electrical shock, turn off power supply before installation or
servicing.
2.
This luminaire must be installed in accordance with the NEC or your local electrical
code. If you are not familiar with these codes and requirements, consult a qualified
electrician.
3.
This fixture must be supported by main runners or other building structure that is capable
of supporting fixture weight.
4.
These fixtures are thermally protected. Do not install insulation within 3 inches (76 mm)
of fixture sides or junction box nor above fixture in such a manner as to entrap heat.
5.
Blinking LED may indicate fixture is too close to insulation.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
TO INSTALL:

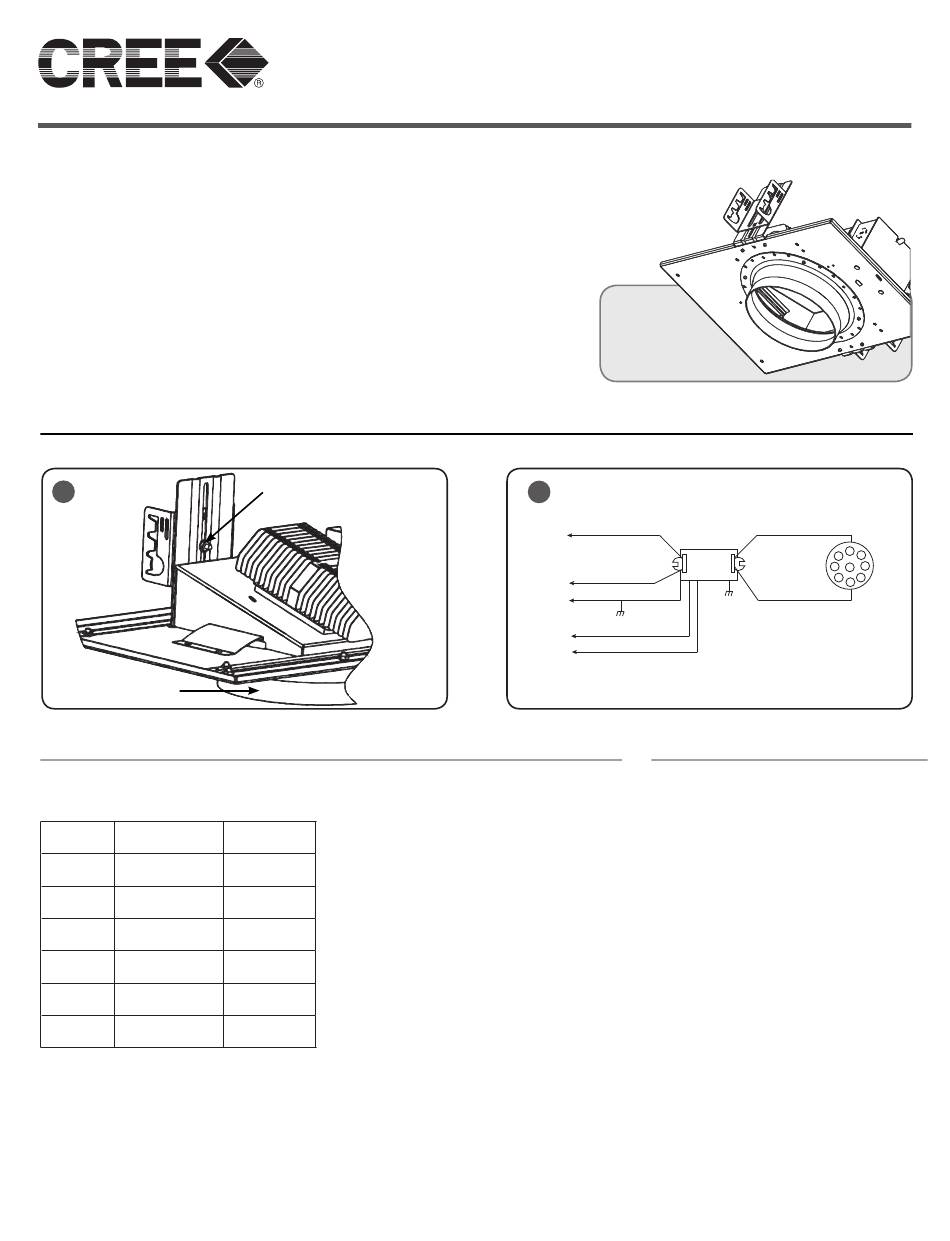

1
Plaster Ring
LUMINAIRE INSTALLATION
STEP 1:
Cut appropriate sized hole in ceiling
Luminaire
Ceiling Cutout
Type
Size
4 in round
4-3/4 in.
downlight
4 in square
5x5 in.
downlight
6 in round
7 in.
wall wash
6 in square
6-1/2 x 6-1/2 in.
wall wash
8 in round
8-3/4 in.
wall wash
8 in square
8-1/2 x 8-1/2 in.
wall wash
STEP 2:
Be sure to orientate the Wall Wash
housing correctly, as indicated by the
"Point Arrow At Wall" label.
STEP 3:
Thread rigid conduit, bar stock, wire or
C-channel (supplied by others) through
quick-mount brackets at the sides of the
fixture.
1 of 2
Adjustment Nut
on Quick Mount
Bracket
STEP 4:
Attach mounting means to structure or
other adequate support.
Luminaire
STEP 5:
Weight
Adjust mounting height by loosening
adjustment nuts on Quick Mount Brackets,
10 lbs.
then position bracket so that the bottom
of the plaster ring is flush with the bottom
10 lbs.
of the opening of the finished ceiling. (See
Figure 1)
11 lbs.
STEP 6:
11 lbs.
Tighten adjustment nut(s).
STEP 7:
13 lbs.
Remove junction box cover and bring in
appropriate power supply to the junction
13 lbs.
box using one of the knock-outs.
STEP 8:
Wire fixture per "Wiring Instructions"
section.
NOTE: Fixture is intended to be wired to
a specific voltage. Make sure that supply
voltage matches voltage on electrical
label next to the junction box. Connecting
fixture to voltage other than that specified
on the label may result in fixture damage
and/or improper fixture operation.
4-INCH DOWNLIGHT AND 6, 8-INCH WALL WASH
Includes: ESA-ADR/ADS-414, ESA-ADR/ADS-614/828
2
Hot (black)
To line
Voltage
Neutral (white)
Ground (green)
Dim + (violet)
To Dimming
Dim - (violet)
Control
WIRING INSTRUCTIONS
When wiring a non-dimming luminaire:
1. Connect supply ground wire to
2. Connect supply line conductor to
3. Connect supply neutral conductor to
When wiring a luminaire for dimming
with the BetaLED driver
(0-10V DC low voltage dimming
control) See Figure 2.
ESSENTIA®
INSTALLATION INSTRUCTIONS
+V
LED
Driver
-V
fixture ground (green).
fixture hot (black).
fixture neutral (white).
KI071X01R2
LED
Light
Engine
