Cree ESSENTIA AE Series Installation Instructions

When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To avoid the possibility of electrical shock turn off power supply before installation or servicing.
2. This luminaire must be installed in accordance with the NEC or your local electrical code. If you are not familiar with these
codes and requirements, consult a qualified electrician.
3. Essentia by Cree Track fixtures are UL
®
with Essentia by Cree) "T" and "TU" Series track systems only.
4. MIN. 90°C SUPPLY CONDUCTORS.
5. Wait until fixture has cooled down before installing or servicing the fixture.
6. Please read and understand all instructions thoroughly before installing any part of the Track system.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
NOTES:
1. All Essentia Track sections are manufactured with a Polarity Groove.
®
2. All Essentia Track fixtures are manufactured with Indicator Arrows designed to point toward the Polarity Groove once
®
installed. See Figures 1 and 2.
3. All Essentia Track fixtures are supplied with a Contact Support to convert fixture from Single Circuit installation to Two Circuit
®
Installation. See Figures 3.
DIMMING INFORMATION:
For a list of approved dimmers visit lighting.cree.com.

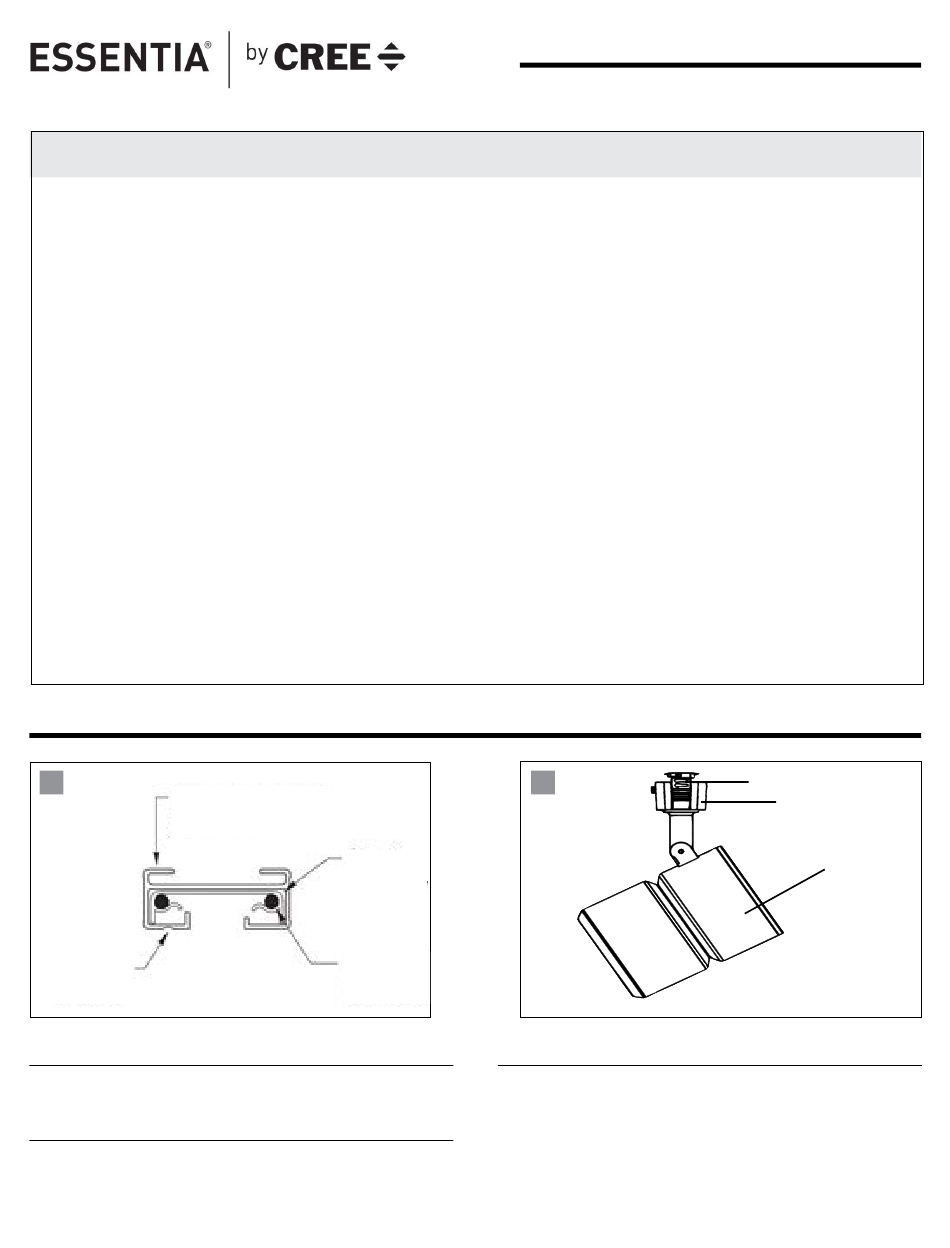

FIXTURE INSTALLATION – SINGLE CIRCUIT TRACK
1
Aluminum Track
Extrusion
Polarity
Groove
STEP 1
• Insert Brass Contact on top of Track Adaptor into the Track Channel.
See Figures 1 and 3.
STEP 2
• Rotate the Track Adaptor 90° so that the Indicator Arrows point
toward the Polarity Groove once installed. See Figure 2. Pull Adaptor
Latch down as you rotate Track Adaptor in order for Latch to clear
track edge and allow it to snap into place in the track.
1 of 2

IMPORTANT SAFEGUARDS

Classified for use with Essentia by Cree "CT" track systems, and Juno
®
Plastic
Insulator
Copper
Conductors
LED TRACK-BEVELED CYLINDER
2
STEP 3
• To remove or relocate track fixture location, pull Adaptor Latch down,
rotate the Track Adaptor 90° away from the Polarity Groove and
remove.
INSTALLATION INSTRUCTIONS
S-CT-BVLCYL-10L
(not affiliated
®
Indicator Arrows
Track Adapter
Luminaire
LPN00334X0001A0_A
