Cree CR14 Installation Instructions

Cr series with cree upoe, led architectural troffers, 1x4, 2x4, 2x2 luminaires

Advertisement

IMPORTANT SAFEGUARDS

When using electrical equipment, basic safety precautions
should always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2.
This luminaire must be installed in accordance with
the NEC or your local electrical code. If you are not
familiar with these codes and requirements, consult a
qualified electrician.
Ce produit doit être installé conformément à NEC ou
votre code électrique local. Si vous n'êtes pas familier
avec ces codes et ces exigences, veuillez contacter un
électricien qualifié.
3.
Suitable for damp locations.
Convient aux emplacements humides.
4.
Access above ceiling required. Do not install insulation
within 3" (76mm) of any part of the luminaire.
Accès requis au-dessus du plafond. Ne pas mettre
l'isolant à moins de 76 mm (3 po) de toute partie du
luminaire.
5.
Suitable for suspended ceilings.
SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE
The CR Series of recessed troffers is for non-insulated ceiling applications using T-Bar ceiling grid and drywall grid adaptors.
Designed for use with UPOE Ethernet switch with output voltage less than 60 Vdc.

TO INSTALL:

1
1 of 2

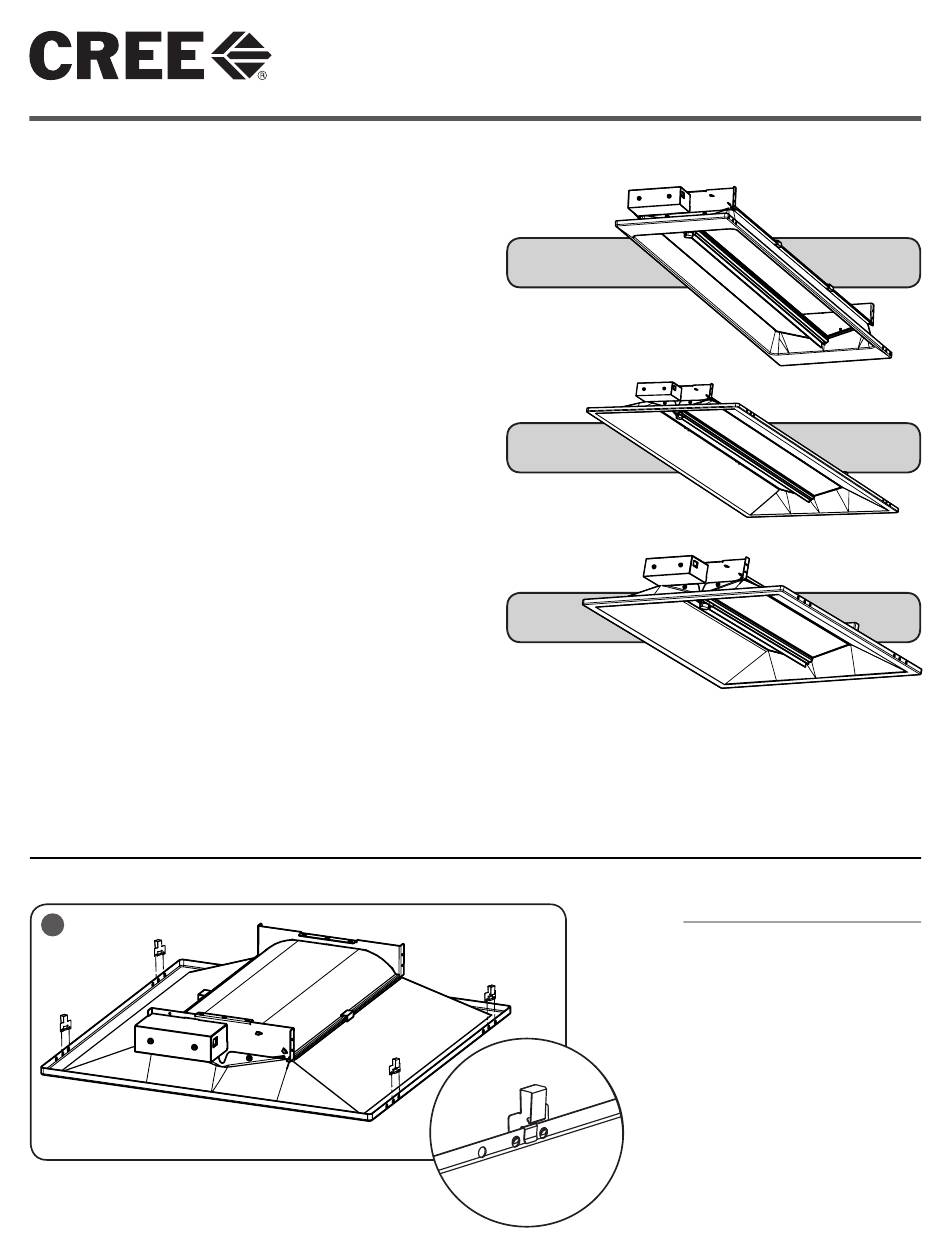

CR Series with Cree UPOE
CR14™, CR24™, CR22™ LED Architectural Troffers
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
CR14
CR24
CR22

LUMINAIRE INSTALLATION

STEP 1:

Unpack the CR troffer from its
shipping container.

STEP 2:

Install the (4) T-Bar clips included
with the luminaire (located in
pre-pack fastened to luminaire
junction box). See Figure 1.
1x4, 2x4, 2x2 Luminaires
LPN00293X0001A0_A
