Technical data • Individual components
Warning!
Do not remove mounting screws from the heat sink, as it is connected to the
processor and chipset by a thermal coupling. If this connection is broken, the
PPC700 must be sent for repair. Removal of the mounting screws, which can be
determined by a broken seal, voids all warranty.
During operation, surface temperatures of the heat sink may reach 70°C (warning
"hot surface").
Dimensions
Nominal size range
To 6 mm
Over 6 to 30 mm
Over 30 to 120 mm
Over 120 to 400
Over 400 to 1000
11.5
162
423
General tolerance acc. to
DIN ISO 2768 medium
± 0.1 mm
± 0.2 mm
± 0.3 mm
± 0.5 mm
± 0.8 mm
372
272

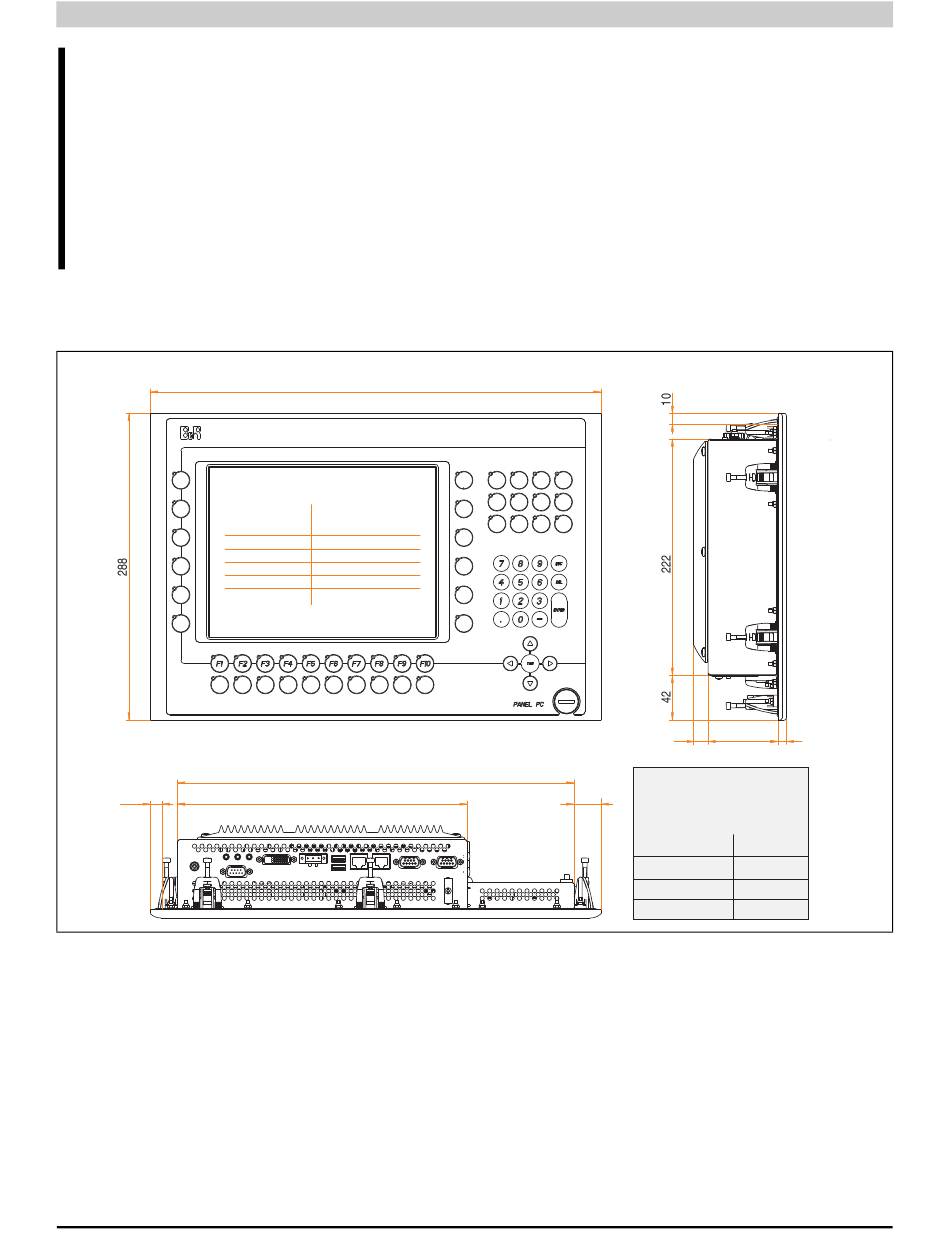

Figure 83: Dimensions - 5PC782.1043-00
Panel PC 700 with 945GME N270 CPU board User's Manual V 1.16
" " A 65.5
Information:
25.5
The " " measurement depends on A
the PPC700 heat sink!
PPC700 heat sink Specification
model number in mm
5AC700.HS01-00 12.8
5AC700.HS01-01 12.8
5AC700.HS01-02 28
8
