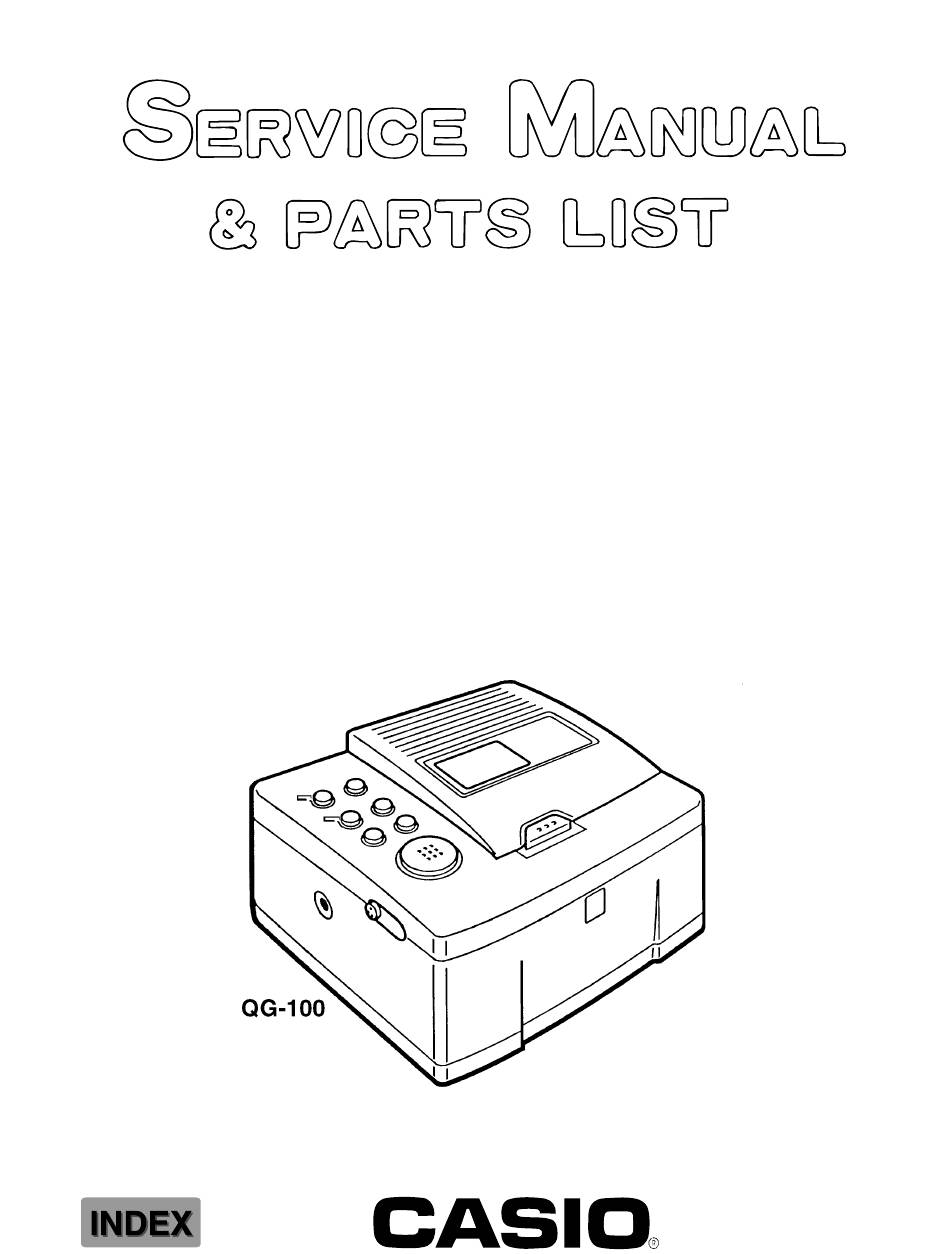

  • Page 1 (without price) QG-100 (ZX-568) JULY 1996...

  • Page 2: Table Of Contents

    CONTENTS 1. SPECIFICATIONS ........................1 2. CLEANING THE PRINTER ......................1 3. BLOCK DIAGRAM ........................2 4. SCHEMATIC DIAGRAMS 4-1. Wiring Diagram ........................3 4-2. Main PCB Z568-1 (1/2) ....................... 4 4-3. Main PCB Z568-1 (2/2) ....................... 5 4-4. Power PCB Z568-S1 ......................6 4-5.

  • Page 3: Specifications

    For best printing results, use the following procedure to clean the print head and rollers with alcohol. Also note that tape adhesive tends to accumulate on the sides of the tape outlet after long use of the QG-100. When this happens, use an alcohol-moistened cotton swab to clean off the adhesive. 1 Open the printer’s cover.

  • Page 4: Block Diagram

    3. BLOCK DIAGRAM — 2 —...

  • Page 5: Schematic Diagrams

    4. SCHEMATIC DIAGRAMS 4-1. Wiring Diagram — 3 —...

  • Page 6: Main Pcb Z568-1 (1/2)

    4-2. Main PCB Z568-1 (1/2) — 4 —...

  • Page 7: Main Pcb Z568-1 (2/2)

    4-3. Main PCB Z568-1(2/2) — 5 —...

  • Page 8: Power Pcb Z568-S1

    4-4. Power PCB Z568-S1 — 6 —...

  • Page 9: Sensor Pcb Z568-2

    4-5. Sensor PCB Z568-2 6 mm 9 mm 12 mm 18 mm 18 mm (R) 24 mm 36 mm 46 mm no tape Z568 (PORT-PCU) Tape width TAP1: P74 (89P) ON = L TAP2: P75 (90P) TAP3: P76 (91P) → →...

  • Page 10: Cam Sensor Pcb Z568-S2

    4-6. Cam sensor PCB Z568-S2 4-8. Key Matrix Z568-E4 CUTTER SENSOR HOME POSITION SENSOR 4-7. (1/2) Paper, Ribbon sensor PCB Z568-S3 (Z568-S3 Ass’y) PRINT (AD2) light PAPER SENSOR RIBBON SENSOR dark ON2171.CS ON2171.CS 4-7.(2/2) Jam sensor PCB Z568-S3 (Z568-S4 Ass’y) CONTRAST ON2170-R (LF)

  • Page 11: Circuit Explanation

    5. CIRCUIT EXPLANATION 5-1. LSI PIN FUNCTION CPU (MN1020004-1): LSI1 Pin No. Name I / O Function 1~24 A0~A23 Address bus Read signal to program ROM(LSI3),S-RAM(LSI4) & gate array(LSI2) /WEH Write signal to S-RAM(LSI4),RS-RAM(LSI5,6) & gate array(LSI2) 28~31 PO0~PO3 Setting for head rank 33~35 PO5~PO7 Control signal for LED...
  • Page 12 GATE ARRAY (MN7A076KYL): LSI2 (Internal analog circuit of LSI2 is not used) Pin No. Name I / O Function — Digital ground for LSI2 2~15 A10~A23 Address bus Chip select to static RAM(LSI4) CE3R Chip enable to PS-RAM(LSI5) CE3G Chip enable to PS-RAM(LSI6) RFSH Refresh signal to PS-RAM(LSI5,6) PSOE...

  • Page 13: Circuit Explanation

    5-2. CIRCUIT EXPLANATION FLOW OF PICTURE DATA (Refer to 3. BLOCK DIAGRAM) 1. The picture data from QV camera (digital serial data) are converted into compressed parallel data (8 bits) by CPU (LSI1), then its data are accumulated in the S-RAM (LSI4). 2.

  • Page 14: Setting The Thermal Head

    6. SETTING THE THERMAL HEAD SETTING THE THERMAL HEAD RANK Solder the pads (RNK1 ~ RNK4) on PCB Z568-2 according to the head rank number indicated on the tip of FPC from the thermal head. Refer to the next table. HEAD RANK No.
  • Page 15 SETTING THE THERMAL HEAD POSITION 1 Remove the printer unit referring to 9. DIS- ASSEMBLY. 2 Remove 2 screws, then remove scissors sub ass'y. (Refer to the right figure) 3 Adjust the clearance of C part of in the head holder ass'y to 1.35 mm by turning the head shaft Z568 using screw driver (-) and clearance gauge.

  • Page 16: Sensor Position, Printing Specification & Operation Check

    SB-62 Cable • Printer power may turn on automatically when you connect the adaptor and plug into a wall socket. If this happens, be sure to turn off the digital camera and the QG-100 before connecting the SB- 62 cable.

  • Page 17: Sensor Position

    • Printing may stop momentarily while you are outputting a series of prints or after you have used the QG-100 continually for a long time. This is a normal operation that the QG-100 performs to protect against overheating, and does not indicate malfunction. Normal printing should resume automatically.
  • Page 18 Replacing the Cover if it Comes Off If the cover comes off, replace it as shown in the illustration nearby. Take care to avoid damaging the tabs and hinges when installing the cover. Important! Observe the following precautions whenever there is no tape cartridge loaded in the printer.

  • Page 19: Operation Check

    (TAP1~6) appear. (Refer to the right figure) These switches detect the tape width, length and coloring. In the case of short color tape, refer to the lower table. Normally, these tapes are used for QG-100. TAPE DETECTION SWITCH 18mm 36mm 46mm TAP1...
  • Page 20 2. Insert this jig to the 3pin jack of QG- 100, then turn on QG-100 power while pressing + and - button at the same time. Then, LED1 shines (green). 3. Remove this jig. 4. Turn on QV camera power.
  • Page 21 7. HEAD RANK, THERMISTOR TEMPERATURE, TAPE WIDTH & CONTRST CHECK Set any color tape cartridge into QG-100, then press - button. CHECK ITEM QV CAMERA'S DISPLAY 1 HEAD RANK For example, 2 THERMISTOR TEMPATURE 2 28 3 TAPE WIDTH No tape cartridge...
  • Page 22 9. HALF TONE PATTERN PRINTING CHECK Set the tape cartridge(46 mm, color tape) to QG-100, then press PRINT button. A half-tone pattern picture will be printed as shown bellow. Check the printed picture. An extreme abnormal picture (uneven, stirred and striped picture) is bad.

  • Page 23: Troubleshooting

    8. TROUBLESHOOTING • Power Supply POWER indicator does not light when you press ON. Possible Cause Recommended Action AC adaptor is not plugged in properly. Check AC adaptor connections. • Printing Tape does not come out when PRINT key is pressed. Possible Cause Recommended Action Printer cover is not closed.
  • Page 24 2.Press in SB-62 cable plugs as far as they will 3.Turn on digital camera and QG-100 power in the sequence under • Data Communications Digital camera error display, no response from QG-100 keys, cannot display digital camera images. Possible Cause Recommended Action Improper cable connections.
  • Page 25 PRINT key Starts print operation. Adjusts contrast. * The POWER indicator flashes orange for a few seconds while the QG-100 checks the digital camera’s status. The following describe key operations in combination with SHIFT. The operations listed below are performed when the SHIFT indicator is lit.
  • Page 26 The digital camera power may not turn off when you operate its POWER switch if the camera is not connected correctly to the QG-100 or if you perform an improper operation while they are connected. If this happens, use one of the following procedures to correct the problem.

  • Page 27: Disassembly

    9. DISASSEMBLY 1 Turn over the unit then remove 3 screws. 4 Remove ferrite core from shield plate. Ferrite core 2 Disconnect FPC and FFC joiner from con- 5 Turn over the printer then remove the FPC nector. black protector plate. Black plate FFC joiner 3 Remove 5 screws pointed by arrows then...
  • Page 28 7 Disconnect the 4 connectors pointed by arrows. 8 Remove 4 screws pointed by arrows. 9 Separate cassette case and mechanical chassis of printer unit. Cassette case Mechanical chassis — 26 —...

  • Page 29: Parts List

    A341150-1 QG-100 Common 6417 7950 Shield case B-Z568 A341151-1 QG-100 Common 6418 6420 Tape F-Z568 A442209-1 QG-100 Common The following electronic parts will be not supplied from CASIO. Chip capacitor MCH185A431JK QG-100 Common C2,C4~6, Chip capacitor GRM39F104Z25PT QG-100 Common C9,13,18,...
  • Page 30 QG-100 Common 6418 7060 Z568-E4 ass'y A341180B*1 QG-100 Common 6417 8380 Adhesive tape A-Z568 A441831-1 QG-100 Common The following electronic parts will be not supplied from CASIO. Chip resistor MCR10EZHJ103 QG-100 Common Z568-S1 UNIT 2114 5523 Monolithic IC MC34063ARM1 QG-100 Common...
  • Page 31 Item Code No. Parts Name Specification Version Chip resistor MCR10EZHJ123 QG-100 Common R2,12 Chip resistor MCR10EZHJ103 QG-100 Common R3,20 Chip resistor MCR18EZHJ0R56 QG-100 Common Chip resistor MCR10EZHF3601 QG-100 Common Chip resistor MCR10EZHF1201 QG-100 Common Chip resistor MCR10EZHJ473 QG-100 Common Chip resistor...

  • Page 32: Exploded View & Disassembly View 11-1. Exploded View (Z568-1 Ass'y & Components)

    11. EXPLODED VIEW & DISASSEMBLY VIEW 11-1. EXPLODED VIEW (Z568-1 ASS'Y & COMPONENTS) — 30 —...

  • Page 33: Printer Unit

    PARTS LIST 10-2: PRINTER UNIT Item Code No. Parts Name Specification Version PRINTER UNIT 6417 7660 Return reel Z568 A341158-1 QG-100 Common 6417 7701 Plate Z568 A441828A-1 QG-100 Common 6417 7680 LV. adjuster Z568 A441724-1 QG-100 Common 6417 8010 Label C-Z568 A441531-3...

  • Page 34: Disassembly View (Printer Unit)

    11-2. DISASSEMBLY VIEW (PRINTER UNIT (1/2)) — 32 —...
  • Page 35 DISASSEMBLY VIEW (PRINTER UNIT (2/2)) — 33 —...

  • Page 36: Chassis Unit

    PARTS LIST 10-3: CHASSIS UNIT Item Code No. Parts Name Specification Version CHASSIS UNIT 6417 8260 Gear E-Z568 A441767-1 QG-100 Common 6417 8240 HS. shaft Z568 A441756-1 QG-100 Common 6417 7990 Head plate Z568 A341230-1 QG-100 Common 6417 7790 Tape holder Z568 A240692-1 QG-100 Common 6417 8091 H.

  • Page 37: Disassembly View (Chassis Unit)

    11-3. DISASSEMBLY VIEW (CHASSIS UNIT (1/2)) — 35 —...
  • Page 38 DISASSEMBLY VIEW (CHASSIS UNIT (2/2)) — 36 —...

  • Page 39: Chassis Ass'y

    PARTS LIST 10-4: CHASSIS ASS'Y Item Code No. Parts Name Specification Version CHASSIS ASS'Y 6415 5340 Gear F-Z561 A440606-1 QG-100 Common 6417 8060 Gear A-Z568 A441682-1 QG-100 Common 6417 8070 Gear B-Z568 A441683-1 QG-100 Common 6417 8080 Gear C-Z568 A441684-1...

  • Page 40: Disassembly View (Chassis Ass'y)

    11-4. DISASSEMBLY VIEW (CHASSIS ASS'Y (1/2)) — 38 —...
  • Page 41 DISASSEMBLY VIEW (CHASSIS ASS'Y (2/2)) — 39 —...

  • Page 42: Head Holder Ass'y

    PARTS LIST 10-5: HEAD HOLDER ASS'Y Item Code No. Parts Name Specification Version HEAD HOLDER ASS'Y 6417 8310 Tape A-Z568 A441779-1 QG-100 Common 6417 8450 Tape B-Z568 A441887-1 QG-100 Common 6417 8460 Tape C-Z568 A441888-1 QG-100 Common 6417 8480 Tape D-Z568 A441936-1...

  • Page 43: Disassembly View (Head Holder Ass'y)

    11-5. DISASSEMBLY VIEW (HEAD HOLDER ASS'Y (1/2)) — 41 —...
  • Page 44 DISASSEMBLY VIEW (HEAD HOLDER ASS'Y (2/2)) — 42 —...

  • Page 45: Platen Ass'y

    PARTS LIST 10-6: PLATEN ASS'Y Item Code No. Parts Name Specification Version PLATEN ASS'Y 6417 7860 Platen roller Z568 A341090-1 QG-100 Common 6417 7901 Roller holder Z568 A341112A-1 QG-100 Common 6417 8230 Platen bearing Z568 A441727-1 QG-100 Common 6417 8250 Main bearing Z568 A441766-1 QG-100 Common 6417 7471 RA.

  • Page 46: Disassembly View (Platen Ass'y)

    11-6. DISASSEMBLY VIEW (PLATEN ASS'Y) — 44 —...

  • Page 47: Cassette Case Ass'y

    QG-100 Common CN204 3501 7553 Connector B6B-ZR-SM3-TF QG-100 Common CN205 3725 2800 FFC joiner B-Z568 A441811-1 QG-100 Common The follwing electronic parts will be not supplied by CASIO. Chip capacitor GRM39B102K50PT QG-100 Common Chip capacitor GRM39F104Z25PT QG-100 Common C13,14 Chip capacitor...

  • Page 48: Disassembly View (Cassette Case Ass'y)

    11-7. DISASSEMBLY VIEW (CASSEETTE CASE ASS'Y) — 46 —...

  • Page 49: Motor Chassis Ass'y

    Item Code No. Parts Name Specification Version MOTOR CHASSIS ASS'Y 6417 8040 Scissors gear A-Z568 A441680-1 QG-100 Common 6417 8200 Scissors gear B-Z568 A441698-1 QG-100 Common 6400 9750 Cut washer B-L240 A412353-2 QG-100 Common 6417 7400 M. chassis sub ass'y...

  • Page 50: Disassembly View (Motor Chassis Ass'y)

    11-8. DISASSEMBLY ASS'Y (MOTOR CHASSIS ASS'Y) — 48 —...
