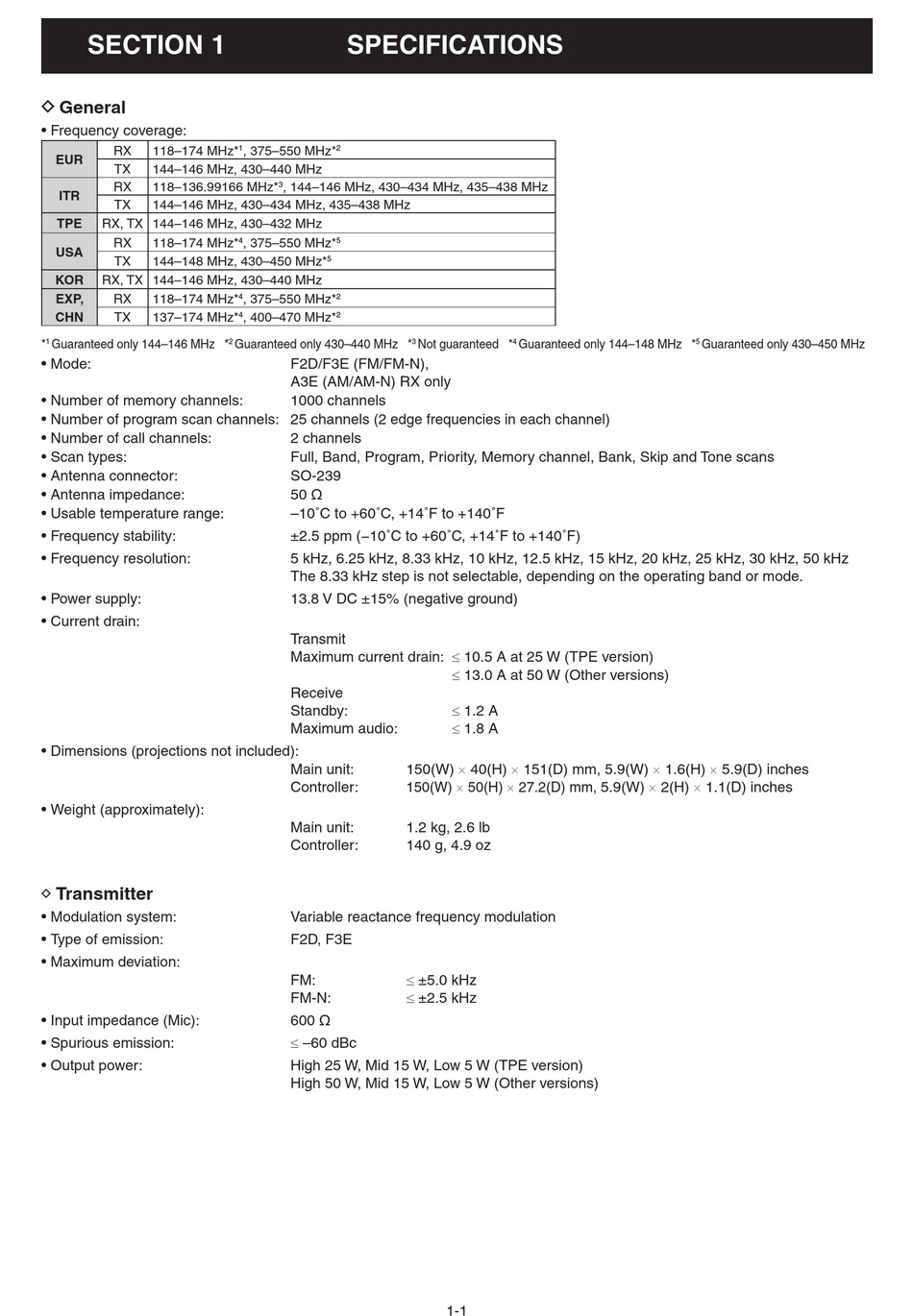

Specifications - Icom IC-2730A Service Manual

SECTION 1.
D General
• Frequency coverage:
RX 118–174 MHz*
EUR
TX 144–146 MHz, 430–440 MHz
RX 118–136.99166 MHz*
ITR
TX 144–146 MHz, 430–434 MHz, 435–438 MHz
TPE RX, TX 144–146 MHz, 430–432 MHz
RX 118–174 MHz*
USA
TX 144–148 MHz, 430–450 MHz*
RX, TX 144–146 MHz, 430–440 MHz
KOR
EXP, RX 118–174 MHz*
CHN TX 137–174 MHz*
* 1 Guaranteed only 144–146 MHz *
• Mode:
• Number of memory channels:
• Number of program scan channels: 25 channels (2 edge frequencies in each channel)
• Number of call channels:
• Scan types:
• Antenna connector:
• Antenna impedance:
• Usable temperature range:
• Frequency stability:
• Frequency resolution:
• Power supply:
• Current drain:
• Dimensions (projections not included):
• Weight (approximately):
Transmitter
D
• Modulation system:
• Type of emission:
• Maximum deviation:
• Input impedance (Mic):
• Spurious emission:
• Output power:

SPECIFICATIONS

1 , 375–550 MHz* 2
3 , 144–146 MHz, 430–434 MHz, 435–438 MHz
4 5
, 375–550 MHz*
5
4 , 375–550 MHz* 2
4 , 400–470 MHz* 2
2 Guaranteed only 430–440 MHz *
F2D/F3E (FM/FM-N),
A3E (AM/AM-N) RX only
1000 channels
2 channels
Full, Band, Program, Priority, Memory channel, Bank, Skip and Tone scans
SO-239
50 ø
–10˚C to +60˚C, +14˚F to +140˚F
±2.5 ppm (−10˚C to +60˚C, +14˚F to +140˚F)
5 kHz, 6.25 kHz, 8.33 kHz, 10 kHz, 12.5 kHz, 15 kHz, 20 kHz, 25 kHz, 30 kHz, 50 kHz
The 8.33 kHz step is not selectable, depending on the operating band or mode.
13.8 V DC ±15% (negative ground)
Transmit
Maximum current drain:  10.5 A at 25 W (TPE version)
Receive
Standby:
Maximum audio:
Main unit:
Controller:
Main unit:
Controller:
Variable reactance frequency modulation
F2D, F3E
FM:
FM-N:
600 ø
 –60 dBc
High 25 W, Mid 15 W, Low 5 W (TPE version)
High 50 W, Mid 15 W, Low 5 W (Other versions)
3 Not guaranteed * 4 Guaranteed only 144–148 MHz *
 13.0 A at 50 W (Other versions)
 1.2 A
 1.8 A
150(W)  40(H)  151(D) mm, 5.9(W)  1.6(H)  5.9(D) inches
150(W)  50(H)  27.2(D) mm, 5.9(W)  2(H)  1.1(D) inches
1.2 kg, 2.6 lb
140 g, 4.9 oz
 ±5.0 kHz
 ±2.5 kHz
1-1
5 Guaranteed only 430–450 MHz
