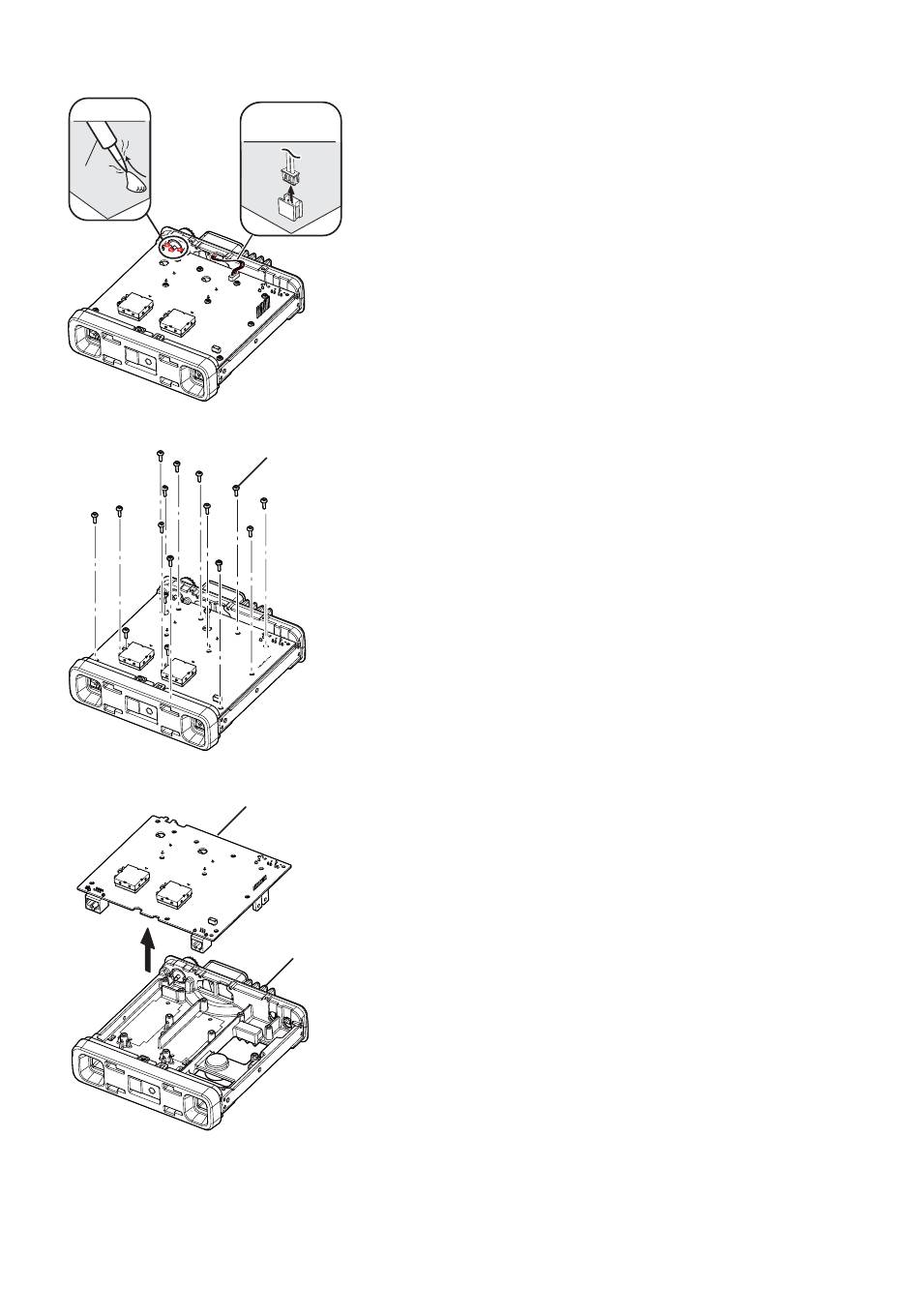

6) Unsolder three points at the antenna connector.
7) Disconnect the cooling fan cable.
UNSOLDER
Solder
remover
8) Remove total of 17 screws from the MAIN UNIT.
9) Remove the MAIN UNIT from the chassis.
COOLING FAN
CABLE
Screws ×17
MAIN UNIT
CHASSIS
