5-1 PREPARATION (Continued)
Select an adjustment item using [MONI]/[LOW], and then set the adjustment value as specifi ed using [DIAL].

• ENTERING THE ADJUSTMENT MODE

1) Connect the JIG cable to [MIC] on the main unit. (See page 5-1.)
2) While holding down both [MAIN BAND], turn ON the power.
2) Hold down both [MAIN BAND].
3) Push [ ] to turn ON the power.

• KEY ASSIGNMENTS FOR THE ADJUSTMENT MODE

Adjustment frequency.
Adjustment value.

• QUITTING THE ADJUSTMENT MODE

1) Remove the JIG cable from [MIC].
2) Turn OFF the power, and then turn ON again.

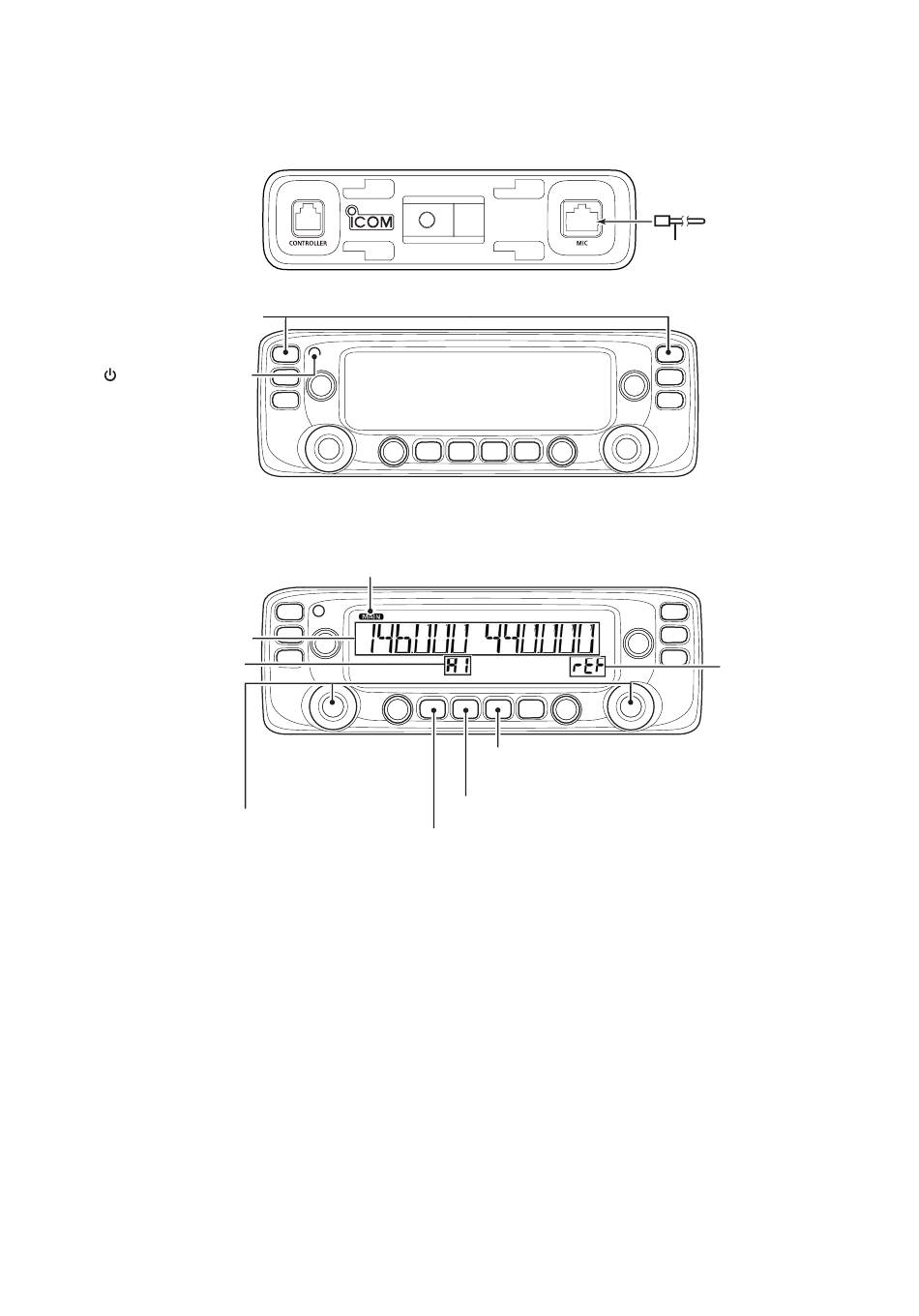

Main unit (front view)
Indicates that the item is currently adjusted on this side of frequency.
[DIAL]
Adjusts the value for the item.
(For the manual adjustments)
[MW]
• Stores the set value. (For the manual adjustments)
• Adjusts the value for the item. (For the automatic adjustments)
[LOW DTMF]
Selects the previous adjustment item.
[DUP MONI]
Selects the next adjustment item.
5-2
1) Connect the JIG cable to [MIC].
JIG cable
Adjustment item name.
