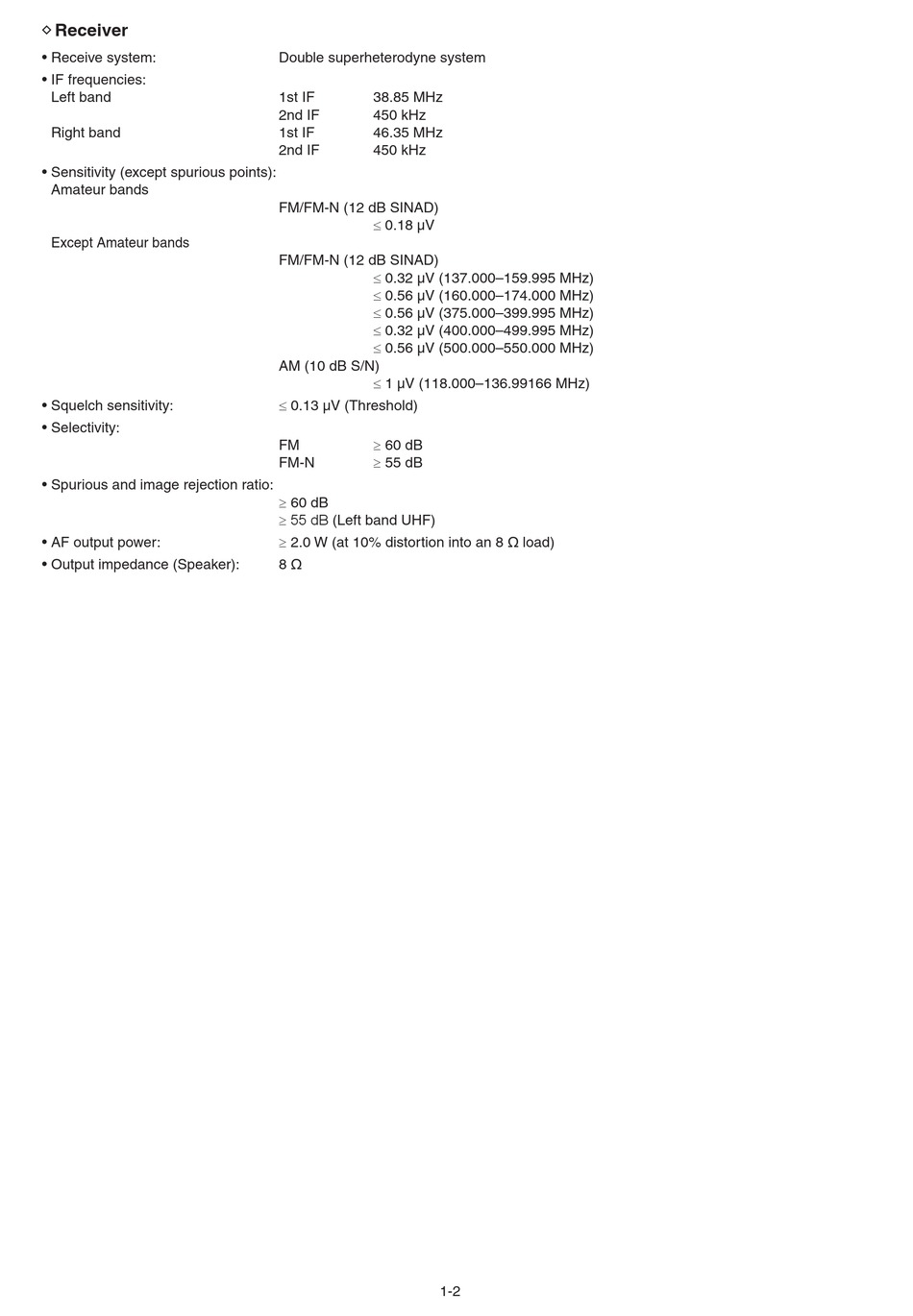

Receiver
D
• Receive system:
• IF frequencies:
Left band
Right band
• Sensitivity (except spurious points):
Amateur bands
Except Amateur bands
• Squelch sensitivity:
• Selectivity:
• Spurious and image rejection ratio:
• AF output power:
• Output impedance (Speaker):
Double superheterodyne system
1st IF 38.85 MHz
2nd IF 450 kHz
1st IF 46.35 MHz
2nd IF 450 kHz
FM/FM-N (12 dB SINAD)
 0.18 µV
FM/FM-N (12 dB SINAD)
 0.32 µV (137.000–159.995 MHz)
 0.56 µV (160.000–174.000 MHz)
 0.56 µV (375.000–399.995 MHz)
 0.32 µV (400.000–499.995 MHz)
 0.56 µV (500.000–550.000 MHz)
AM (10 dB S/N)
 1 µV (118.000–136.99166 MHz)
 0.13 µV (Threshold)
 60 dB
FM
 55 dB
FM-N
 60 dB
 55 dB (Left band UHF)
 2.0 W (at 10% distortion into an 8 ø load)
8 ø
1-2
