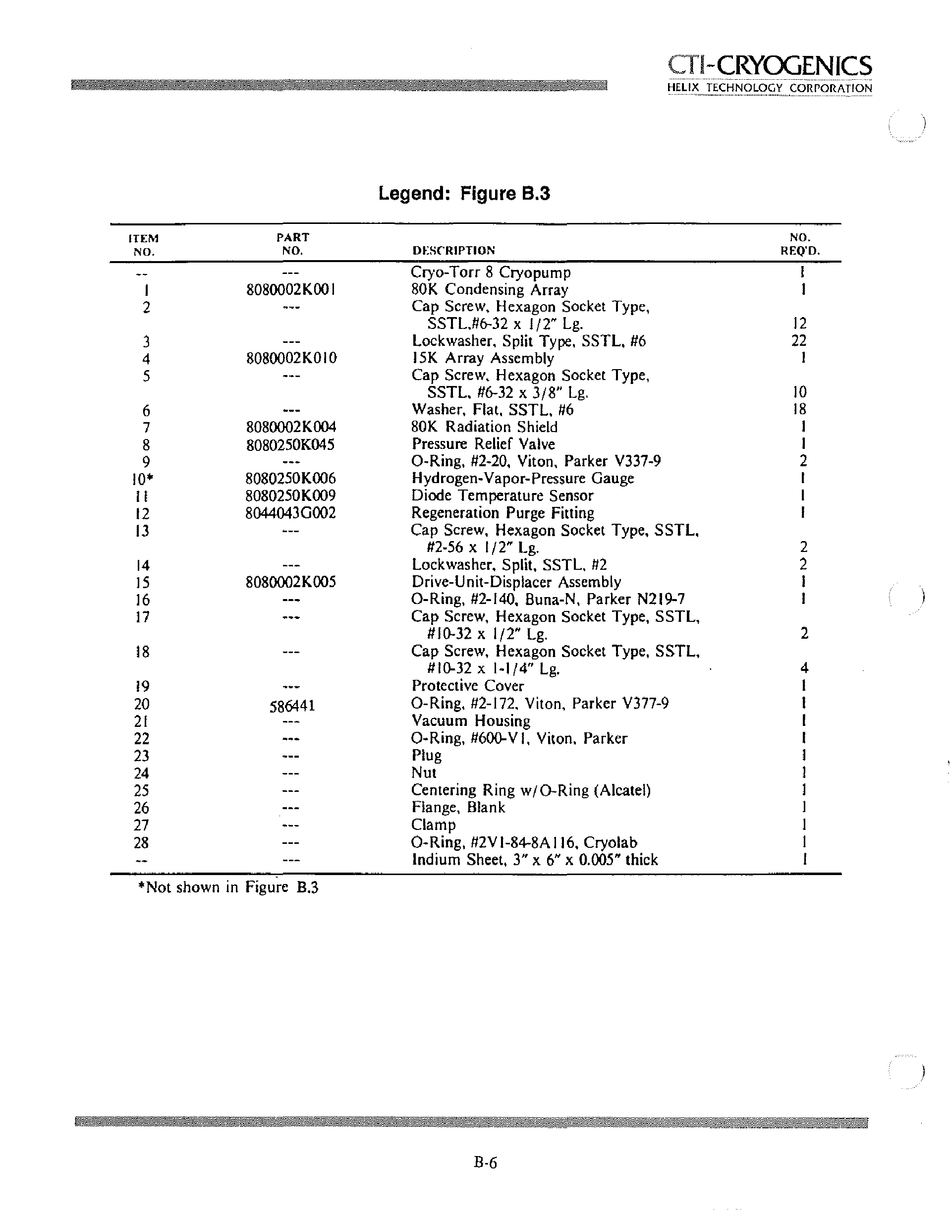

Legend: Figure B.3
ITEM
PART NO.
NO.
NO. DESCRIPTION REO·D.
C
f)' 0-
Torr 8 Cryopump I
I
8080002KOO I 80K Condensing Array I
2
Cap Screw. Hexagon Socket Type.
SSTL.#&-32 x 1/2" Lg. 12
3
Lockwasher. Split Type. SSTL. #6 22
4
8080002K010 15K Array Assembly I
5
Cap Screw. Hexagon Socket Type.
SSTL. #&-32 x 3/8" Lg.
10
6
Washer. Flat. SSTL. #6
18
7
8080002KOO4 80K Radiation Shield I
8 8080250K045
Pressure Relief Valve I
9
a-Ring. #2-20. Viton. Parker V337-9 2
10'
8080250K006
Hydrogen-Vapor-Pressure Gauge I
II
8080250K009
Diode Temperature Sensor I
12
8044043G002 Regeneration Purge Fitting I
13
Cap Screw. Hexagon Socket Type. SSTL.
#2-56 x 1/2" Lg.
2
14
Lockwasher. Split. SSTL. #2 2
15
8080002KOO5 Drive-Unit-Displacer Assembly I
16
a-Ring. #2-140. Buna-N. Parker N219-7 I
17
Cap Screw. Hexagon Socket Type. SSTL.
#1(}'32 x 1/2" Lg. 2
18
Cap Screw. Hexagon Socket Type. SSTL.
#1(}'32 x 1-1/4" Lg. 4
19
Protective Cover I
20
586441
a-Ring. #2-172. Viton. Parker V377-9 I
21
Vacuum Housing I
22 a-Ring. #600-VI. Viton. Parker I
23
Plug
I
24
Nut I
25
Centering Ring w/O-Ring (Alcate!) I
26
Flange. Blank I
27
Clamp I
28 a-Ring. #2VI-84-8AI16. Cryolab
I
Indium Sheet. 3" x 6"
X
0.005" thick
I
'Not shown in Figure B.3
•
j[j
I H¥!&11
:::
B-6
