CTI-CRYCXJENICS
-,,----
------~--
- -
-,,-
--- -
------

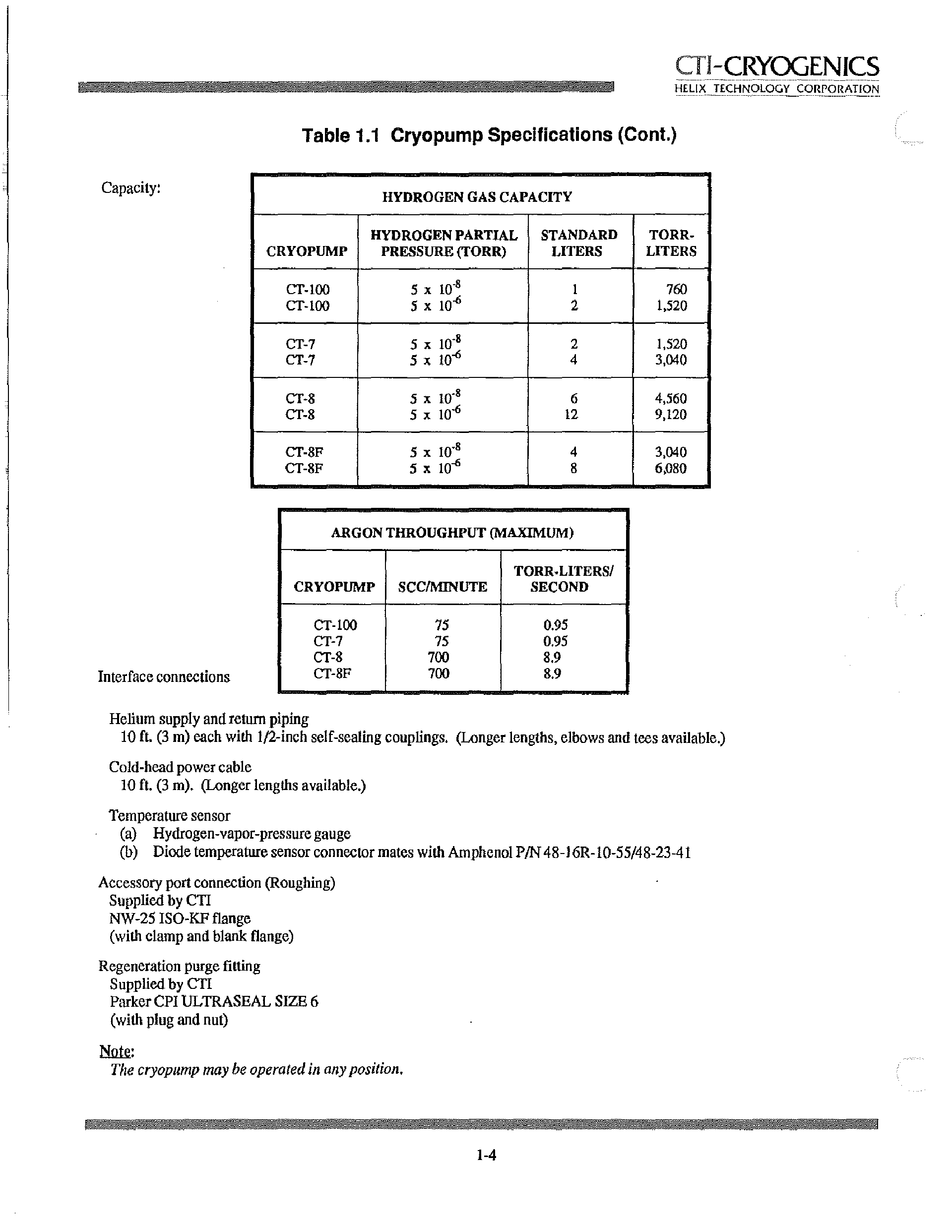

Table 1.1 Cryopump Specifications (Cont.)
Capacity:
HYDROGEN GAS CAPACITY
HYDROGEN PARTIAL STANDARD TORR·
CRYOPUMP PRESSURE (TORR) LITERS LITERS
CT-IOO
5
x 10- 8
1 7ffJ
CT-IOO
5 x 10-6
2
1,520
CT-7
5
x 10- 8
2 1,520
CT-7
5
x 10-6
4 3,040
CT-8
5
x 10,8
6
4,560
CT-8
5 x 10-6
12 9,120
CT-8F
5
x 10,8
4 3,040
CT-8F
5
x 10-6
8 6,080
ARGON THROUGHPUT (MAXIMUM)
TORR·LITERS!
CRYOPUMP SCCIMINUTE SECOND
CT-IOO 75
0,95
CT-7 75 0.95
CT-8 700 8.9
Interface connections
CT-8F 700 8.9
Helium supply and reJum piping
10 ft. (3 m) each with 1/2-inch self-sealing couplings. (Longer lengths, elbows and tees available.)
Cold-head power cable
10 ft. (3 m). (Longer lengths available.)
Temperature sensor
(a) Hydrogen-vapor-pressure gauge
(b)
Diode temperature sensor connector mates with Amphenol
PIN
48-J6R-1O-55/48-23-4 I
Accessory port connection (Roughing)
Supplied by
CTI
NW-25 ISO-KF flange
(with clamp and blank flange)
Regeneration purge fitting
Supplied by CTI
Parker CPI ULTRASEAL SIZE 6
(with plug and nut)
Mok:
The cryopump may be operated in any position.
1-4
