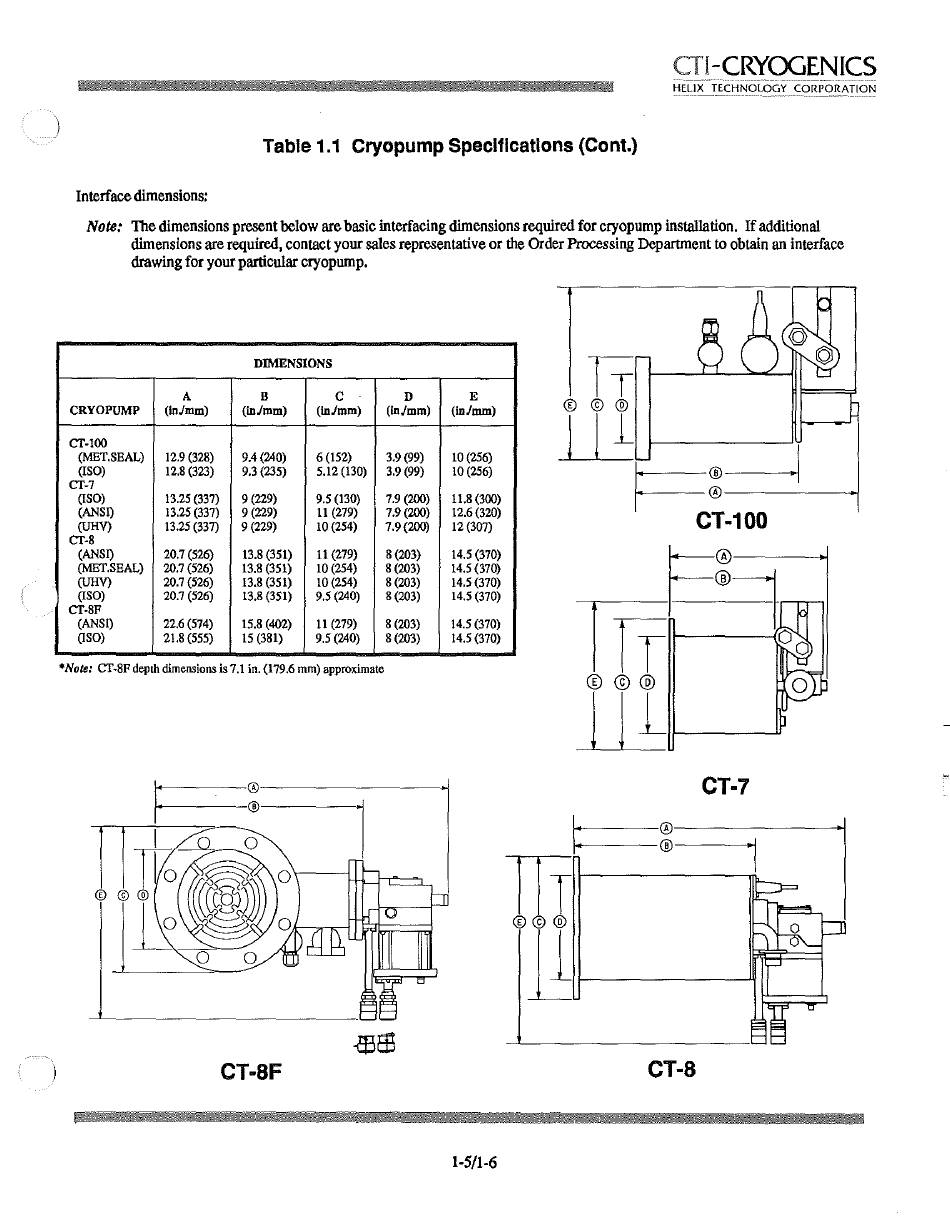

Table 1.1 Cryopump Specifications (Cant.)
Interface dimensions:
Note:
The dimensions present below are basic interfacing dimensions required for cryopump installation. If additional
dimensions are required, contact your sales representative or the Order Processing Department
to
obtain an interface
drawing for your particular cryopump.
DIMENSIONS
A B
C D
E
CRYOPUMP
(lnJmm) (lnJmm) (lnJmm) (lnJmm) (inJmm)
cr-100
(MET.SEAL)
12.9 (328)
9.4 (240)
6 (152)
3.9 (99) 10(256)
(ISO) 12.8 (323) 9.3 (235) 5.12 (130) 3.9 (99) 10 (256)
cr-7
(ISO) 13.25 (337) 9 (229) 9.5 (130) 7.9 (200) 11.8 (300)
(ANSI) 13.25 (337) 9 (229) 11 (279) 7.9 (200) 12.6(320)
(UHV)
13.25 (337) 9 (229) 10 (254) 7.9(200) 12 (307)
cr-8
(ANSI) 20.7 (526) 13.8 (351) 11 (279) 8 (203) 14.5 (370)
(MET.SEAL) 20.7 (526)
13.8 (351)
10 (254)
8 (203) 14.5 (370)
(UHV)
20.7 (526) 13.8 (351) 10 (254) 8 (203) 14.5 (370)
(ISO) 20.7 (526) 13.8 (351) 9.5 (240) 8 (203) 14.5 (370)
cr-SF
(ANSI) 22.6 (574) 15.8 (402) 11 (279) 8 (203) 14.5 (370)
(ISO) 21.8 (555) 15 (381)
9.5 (240) 8 (203) 14.5 (370)
+Nore: CT·8F depth dimensions is 7.1 in. (179.6 mm) approximate
CT-7
I:
®
®
' I
TIT
®©@
li
-rea;
CT·8F
CT-8
1-5/1-6
