- Page 1 ‘ XLS-810160 & XLS-810240 Tape Libraries Site Planning Guide Document No. 501804 Rev. 07-01-19...
-
Page 2: Revision History
Qualstar reserves the right to modify the design or specification without notice. This specification may not be construed as a contractual obligation except as specifically agreed to by Qualstar in writing at the time of order. -
Page 3: Electromagnetic Compatibility
Notices Qualstar products are covered by one or more of the following patents: 6,271,982; 6,560,061; and 7,181,313. Other patents pending. Qualstar equipment is manufactured from new parts, or new and used parts. In some cases, Qualstar equipment may not be new and may have been previously installed. Regardless, Qualstar’s warranty terms apply unless the equipment is specifically identified by Qualstar as... -
Page 4: Technical Support
Qualstar is committed to the implementation of RoHS (Restriction of the use of certain hazardous substances in electrical and electronic equipment) in accordance with the European Directive. The compliance date is July 1, 2006, at which time Qualstar will certify that its tape library products are compliant with the RoHS standard. -
Page 5: Table Of Contents
1.1.1 XLS-810160/810240 ........1-2 1.1.2 Media Expansion Module (MEM). - Page 6 Table of Contents Notes: 501804 Rev. 07-01-19...
-
Page 7: About This Manual
About This Manual This document provides information needed to prepare a site for the Qualstar XLS Library. It includes the following information: • Considerations for unloading and moving the library. For more information, see Chapter 2, “Unloading and Moving the Library.”... -
Page 8: Xls-810160/810240
1-1, the XLS-810160/810240 accommodates up to 10 tape drives, up to 245 cartridges, and up to two, 10-slot I/O ports. As an option, one Media Expansion Modules (MEM) can be installed on the left side of the XLS-810160/810240. See Section 1.1.2 on page 1-3 for more information. -
Page 9: Media Expansion Module (Mem)

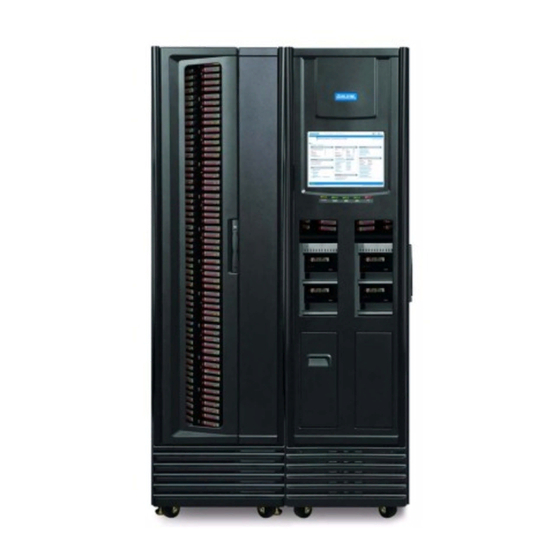

Figure 1-2 the Media Expansion Module (MEM) includes a rotating motor-driven carousel containing cartridge slots. The XLS-85000 (MEM2) can store up to 535 cartridges. The XLS-810160/810240 can be expanded by adding one XLS-85000 MEM to its left side. Door Carousel... - Page 10 1.1 About the XLS Figure 1-3 LRM with one MEM2 501804 Rev. 07-01-19...
-
Page 11: Unloading And Moving The Library
Unloading and Moving the Library Before scheduling delivery of the library, carefully consider the following: • How the library—including the XLS, a Media Expansion Module (MEM), or an expansion pod—will be unloaded from the truck. See Section 2.1. • How the equipment will be moved within the facility to its final location. See Section 2.2. -
Page 12: Door Clearance
2.2 Moving the Library the equipment. If the pallet or original packaging material is not available, please contact Qualstar Corporation to order replacements and recieve instruction on the repacking procedure. 2.2.1 Door Clearance Be sure to check all doors, corridors, and elevators along the route for adequate clearance. -
Page 13: Installing The Library
3-9. Floor Space and Floor Loading This section lists the floor space, floor loading, and service access requirements for the following hardware: • XLS-810160 or XLS-810240, including an expansion pod. See Section 3.1.1 on page 3-2. • XLS-85000 Media Expansion Module (MEM2). See Section 3.1.2 on page... -
Page 14: Xls-810160/810240
This section provides information about the dimensions and floor space requirements of the XLS-810160/810240. XLS-810160/810240 Dimensions Figure 3-1 shows the dimensions of the XLS-810160/810240 base unit in inches and centimeters. 78.0 in (199 cm) 36 in (91 cm) 24 in (61 cm) Figure 3-1 External dimensions of the XLS-810160/810240 501804 Rev. - Page 15 Table 3-2 Weight and maximum floor loading for the XLS-810160/810240 Site Planning for Expansion Pods The XLS-810160/810240 can be expanded by adding one expansion pod on the left side. If you plan to install expansion pods (whether during the initial installation or in the future), consider the recommended installation order: Install the base unit.
-
Page 16: Media Expansion Module (Mem)
Figure 3-2 shows the service access requirements for an XLS-810160/810240, assuming that an expansion pod is installed. Figure 3-2 Service access requirements for the XLS-810160/810240, including expansion pod 3.1.2 Media Expansion Module (MEM) Both LRMs can be expanded by adding one XLS-85000 MEM2 on the left side. If you plan... - Page 17 Installing the Library MEM Dimensions Figure 3-3 shows the dimensions of the XLS-85000 MEM2 in inches and centimeters. 78 in (199 cm) 35 in (89 cm) 23 in (59 cm) Figure 3-3 External dimensions of the XLS-85000 MEM2 XLS Library Site Planning Guide...
- Page 18 3.1 Floor Space and Floor Loading Service Access Requirements for a MEM Figure 3-4 shows the service access requirements for a XLS-85000 MEM2, assuming that the door is open 34.8 in (88.4 cm) 11.6 in (29.5 cm) Figure 3-4 Service access requirements for a XLS-85000 MEM2 501804 Rev.
-
Page 19: Environmental Specifications
Installing the Library Environmental Specifications Before installing the XLS, confirm that the intended location conforms to the environmental specifications listed in Table 3-3. Parameter Operating Non-operating +5°C to +32°C –20°C to +60°C Ambient temperature (–4°F to +140°F) (+41°F to +90°F) 1°C/minute, 10°C/hour Temperature gradient 1°C/minute, 20°C/hour... -
Page 20: Power Cords
The XLS end of all non redundent power input module power cords is terminated in a mating 20-amp, 3-pin locking connector. Table 3-5 lists the detachable six-foot (or two-meter) power cords available. Qualstar Country Volts/Amps Power Cord Description Part Number 100–125V... -
Page 21: Power Consumption
If your system has a large number of tape drives, connect it to a 208- to 240-volt source to reduce the peak AC input current. The integral circuit breaker will trip at 20 amps. In general, Qualstar recommends 220-volt input power. Using a 220-volt source will prevent input power from being an issue during upgrades. - Page 22 3.4 Cooling Requirements Notes: 3-10 501804 Rev. 07-01-19...
-
Page 23: Installation Check List
SCSI or Fibre Channel cables, and configure the logical libraries. After the XLS order is placed, Qualstar builds the library to the requested specifications and preinstalls the drive bays, cartridge slots, I/O ports, Host Bus Adapters (HBAs), and the power supplies. - Page 24 XLS if an unexpected power failure occurs. However, the battery module does not provide adequate power to protect the tape drives. Uninterruptible power supply For this reason, Qualstar recommends that you connect Customer (UPS) and UPS cable the XLS to an external UPS.
