This Quick Start Guide is designed to be used with either the Q80 Base Library or Expansion Module. It will explain how
to unpack the units and install them in a standard 19 inch rack.
Required Tools:
Utility Knife or Scissors
Tape measure
Pencil
No. 2 Phillips screwdriver
Cut and
Remove
Remove
Remove
511023 Rev. 2
R

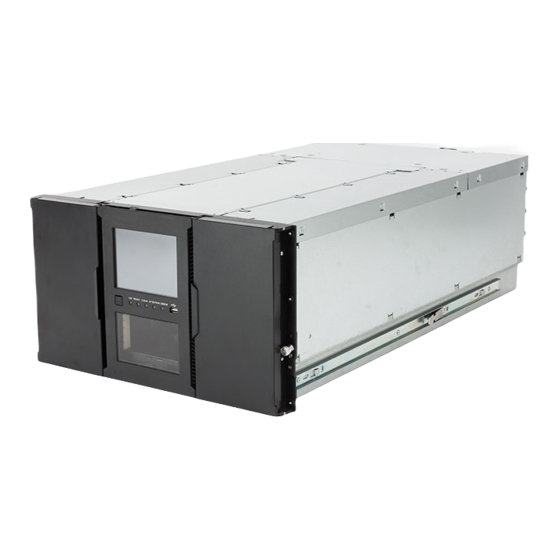

Q80 Quick Start Guide
Unpacking the Library
Warning: Due to the weight of the library, at least two
people are required to lift the unit.

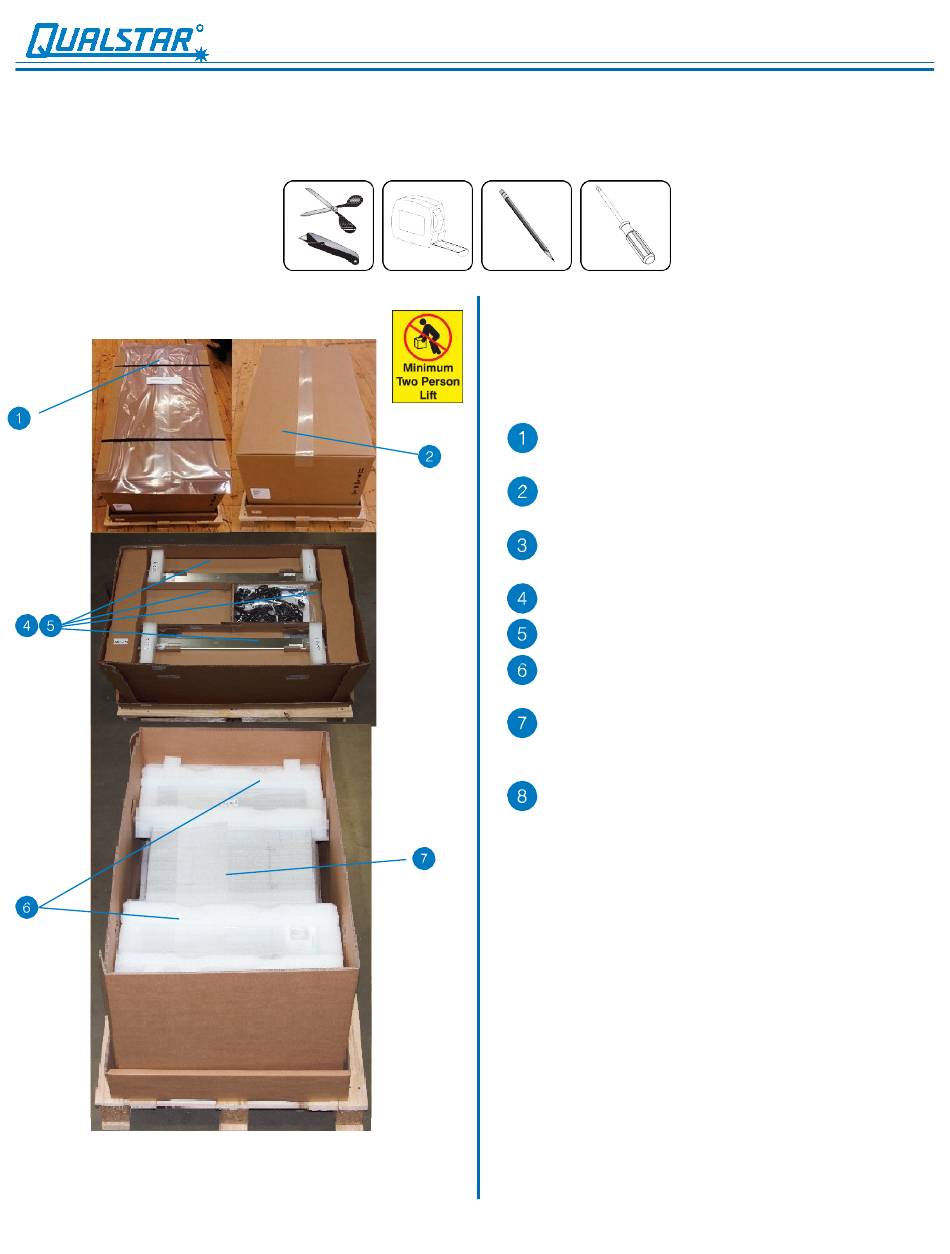

Cut and remove the bands on the outside of the
container.
Lift off
Lift up the outer cardboard box – it is not secured
to the pallet.
Remove the inner cardboard sleeve surrounding
the module.
Remove the rack rails.
Remove the accessory kit box.
Remove the foam pieces from the top of the
module.
With assistance, lift the module out of the bottom
foam nest, remove the wrapping from the module
and then place the module on the work surface.
Remove any packaging materials and tape.
Lift and
Remove
The Q80 comes with a rack kit for easy installation and
securing of the library into a 19-inch (EIA-310) rack.
Important: Two-post telco-style or other racks less than
29 inches in depth will NOT support this unit.
