GSS PHDQ 1000 ASI DF Assembly Instructions Manual

Professional hdtv digital qam
Hide thumbs Also See for PHDQ 1000 ASI DF:
Table of Contents

Advertisement

Quick Links

Download this manual
GSS
Grundig SAT Systems GmbH
Beuthener Strasse 43
D-90471 Nuremberg
HDTV Digital QAM
PHDQ 1000 ASI D
Phone:
+49 (0) 911 / 703 8877
Fax:
+49 (0) 911 / 703 9210
E-mail:
info@gss.de
Internet:
http://www.gss.de/en
CLASS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHDQ 1000 ASI DF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GSS PHDQ 1000 ASI DF

Summary of Contents for GSS PHDQ 1000 ASI DF

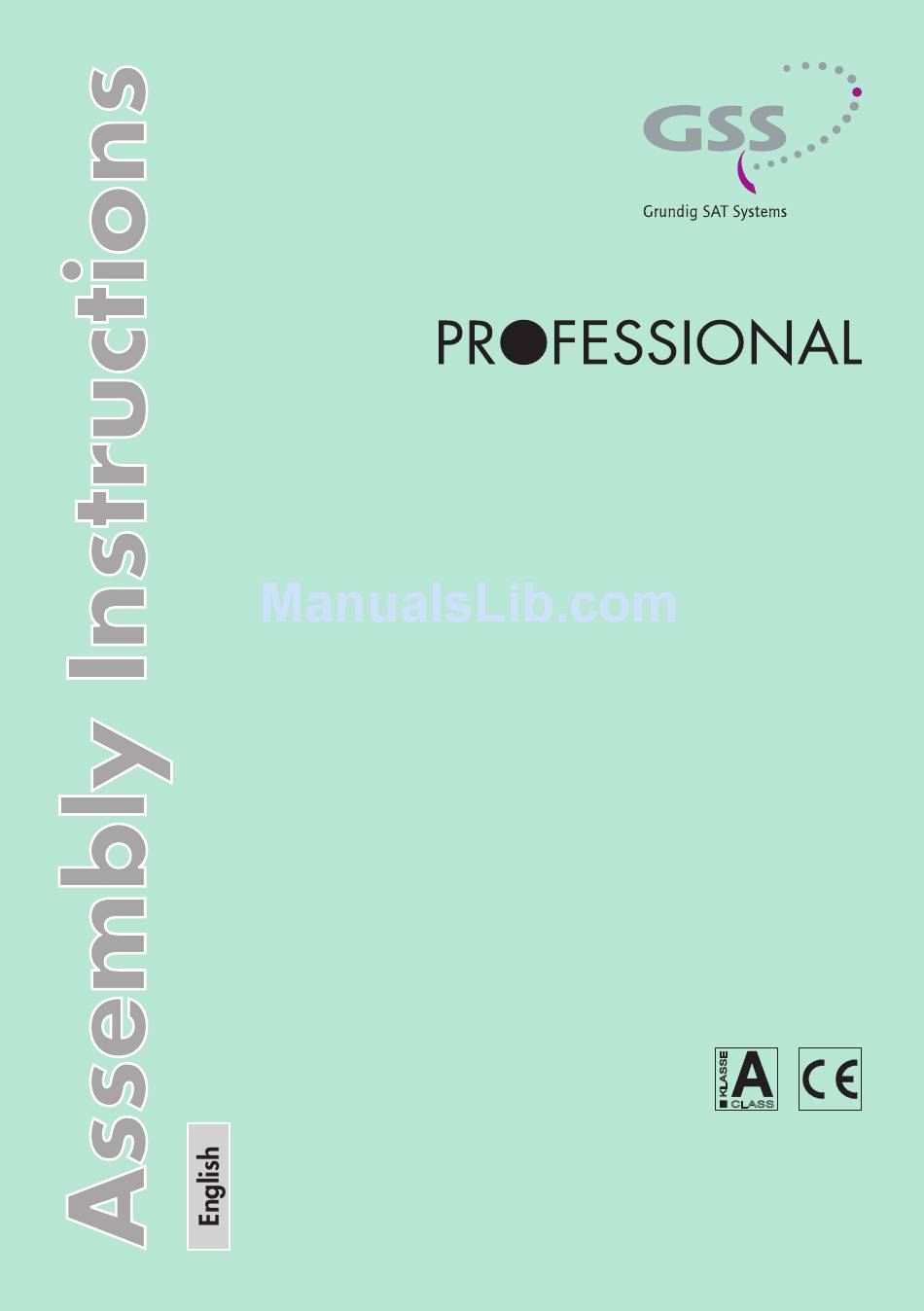

  • Page 1 HDTV Digital QAM PHDQ 1000 ASI D CLASS Phone: +49 (0) 911 / 703 8877 Grundig SAT Systems GmbH Fax: +49 (0) 911 / 703 9210 Beuthener Strasse 43 E-mail: info@gss.de D-90471 Nuremberg Internet: http://www.gss.de/en...

  • Page 2: Table Of Contents

    o n t e n t s 1 Safety regulations and notes ................ 4 2 General information ..................5 Packing contents ................5 Meaning of the symbols used ............5 Technical data ................5 Description ...................6 Input signal path "INROUTE" .............7 Output signal path "OUTROUTE" ..........8 General ..................9 Software query................9 How the TPS module works ............10...
  • Page 3 ASI options ................23 Channel strip .................24 Channel / Frequen cy setting ............24 Output channel ..............25 Output frequency ..............25 Switching the modulator off or on ..........26 Output levels of the channel strips ..........26 LNB oscillator frequency / control voltage .........27 Input symbol rate ..............28 DVB mode ................28 Input frequency ..............29 Testing the signal to noise ratio ..........30...

  • Page 4: Safety Regulations And Notes

    • Test the software versions of the head-end station and the cassette and update them if necessary. The current software versions can be found at "www.gss.de/en". Take action to prevent static discharge when working on the device! Electronic devices should never be disposed of in the household rubbish. In...

  • Page 5: General Information

    e n e r a l i n f o r m a t i o n 2.1 P aC k i n g C o n t e n t s 1 Cassette PHDQ 1000 ASI D 2 RF cables 2 Cable termi nals 4 Contact washers 1 Brief assembly instructions...
  • Page 6 RF output Channels: ................S21 … C69 Frequency range: ..........42.0 MHz … 860.0 MHz Output level: ................97 dBμV Output impedance: ................. 75 Ω Connections SAT inputs: ................2 F sockets RF output: ................1 IEC socket ASI input: ..............1 BNC socket, 75 Ω ASI output: ..............1 BNC socket, 75 Ω...
  • Page 7 "inroute" n P u t s i g n a l Pat h "a+asi = 1 b+asi = 2" e n u s e t t i n g The transport streams of the receiving stage "TS A" and of the ASI input "TS ASI" generate the transport stream 1. The transport streams of the receiv- ing stage "TS B"...
  • Page 8 "outroute" u t P u t s i g n a l Pat h "asi => asi" e n u s e t t i n g Transport stream 1 is made available via modulator "A", transport stream 2 via modulator "B" and the transport stream from the ASI input "TS ASI" via the ASI output.

  • Page 9: General

    You can find the current operating software for the control unit and the cassette, the software "BE-Flash" and the current assembly instructions on the website "www.gss.de/en". The cassette is intended for use in the PROFI-LINE head-end stations. 2.5 s...
  • Page 10 2.6 h tPs t h e m o d u l e wo r ks After decoding QPSK- or 8PSK-modulated signals, the demodulated data stream can be accessed via the integrated TPS module. This data stream, also called transport stream, contains several stations in all their components (video, audio, data and service information), which can be changed using the TPS module.
  • Page 11 2.7 e " " x P l a n at i o n t h e t e r m s ym b o l r at e Modulation schemes such as QPSK and QAM transmit multiple bits simultane- ously. These are referred to as symbols. In addition to the user data flow which transmits video and audio information, error correction bits are transferred.
  • Page 12 s s e m b l y 3.1 i n s ta l l i n g t h e C a s s e t t e – Ensure the head-end station is mounted so it will not be able to vibrate. Avoid, for example, mounting the head-end station onto a lift shaft or any other wall or floor construction that vibrates in a similar way.
  • Page 13 3.2 emC r e g u l at i o n s To comply with the current EMC regulations, it is necessary to connect the lines leading in and out of the head-end station using cable terminals. When mounting the cassette in a head-end station which is installed in a 19" cabinet, make sure the connections leading in and out for the 19"...
  • Page 14 The operating software of the cassette can be updated via the 9-pin D-SUB socket "RS 232" using a PC or notebook and the software "BE-Flash". You can find the current operating software on the website "www.gss.de/en". 3.4 C o n n e C t i n g...
  • Page 15 3.4 r Ca e t r o f i t t i n g m o d u l e The cassette is equipped with a common interface. It allows you to connect a CA module for various scrambling systems and service providers. Scrambled channels can only be descrambled with a CA module suitable for the scram- bling system and the corresponding smart card.

  • Page 16: Station Filter

    C o n t r o l P a n e l g l a n C e 4.1 m e n u i t e m s Programme the cassette using the buttons on the control unit of the head-end station.
  • Page 17 r o g r a m m i n g 5.1 P r e Pa r at i o n • Connect the test receiver to the RF output or the test output of the head-end station. • Set the output channel / output frequency of the cassette (see page 24) and adjust the TV test receiver to this channel.
  • Page 18 5.3 P ro g r a m m i n g Pro C e d u r e Bedienhinweise Operating Hints BE–Remote V 44 Ein / On "blättert" Menüs vorwärts. scrolls forward through the menu. please wait … "blättert" Menüs rückwärts. scrolls backward through the menu.
  • Page 19 0 … -10 dB off / abcd 4A/B ◀ ▶ ◀ ▶ DiSEqC details page 27 a = T (Ton/sound) / D (Diseq) 10600 MHz b = A,B / 0…15 (0…F hex) c = H / V (horizontal / vertical) d = h / l (high / low) 4A/B SYMBOL...
  • Page 20 The information displayed is dependent on the CA module used. 4A/B ◀ ▶ normal / inverse 256-QAM normal 4 … 256 4A/B STUFFING ◀ ▶ SR=6900 (6325) 4A/B FAILURE Single Carrier Null Packets … Single Carrier 4A/B TS/ONID ◀ ▶ 0x0001,0100 on / off 4A/B...
  • Page 21 5.4 P r o g r a m m i n g t h e C a s s e t t e —> Pressing the button for longer than 2 seconds cancels the programming procedure. This takes you back to the programme item "Selecting the cassette"...
  • Page 22 n P u t s i g n a l Pat h In this menu you define the signal path of the input transport streams. Menu setting "A+ASI = 1 B+ASI = 2" (page 7). Menu setting "A+B+ASI = 1 ASI = 2" (page 7). Menu setting "A+ASI = 1 A+ASI = 2"...
  • Page 23 asi t r a n s f e r r at e In this menu you set the transfer rate for the ASI component connected. For this setting please take the required information from the documentation (technical data) of the ASI component to be connected. Bx 4 ASI RATE 108000 KBits...
  • Page 24 —> Setting "burst" The data packets of the user data are collected to a great data packet in the transport stream. • Press the button. —> The "Channel strip" – "LINE" menu is activated. h a n n e l s t r i P Bx 4 LINE...
  • Page 25 Bx 4A OUTPUT Freq. • Use to select channel setting "Channel" or frequency setting "Freq.". • Press the button. —> The "Output channel" or "Output frequency" – "OUTPUT" menu is activated. u t P u t C h a n n e l In this menu you set the output channel of the channel strip.

  • Page 26: Final Procedures

    w i tC h i n g t h e m o d u l ato r o f f • To switch off the modulator place the cursor under "on" using the button and switch "off" the modulator of the channel strip using the buttons.
  • Page 27 lnb os C i l l ato r f r e q u e n C y C o n t r o l vo ltag e In this menu set the oscillator frequency of the LNB used and, if necessary, a LNB control voltage.
  • Page 28 —> The control voltage only serves to control multiswitches and is not suitable for power supply of upstreamed components (maximum load 65mA). —> GSS Multiswitches must be triggered by the following DiSEqC co- mands: Input group A —> DiSEqC command D0 Input group B —>...
  • Page 29 • Use the button to place the cursor under "DVB-S" and set the required DVB-S2-mode with the buttons • Press the button. —> The "Input frequency" – "FREQ" menu is activated. n P u t f r e q u e n C y If three dots "...
  • Page 30 es t i n g t h e s i g n a l n o i s e r at i o In this menu you can estimate the quality of the input signal. Bx 4A (+ 11.3) OK 15.3 dB Current signal to noise ratio This value shows the difference between the quality of the input signal...
  • Page 31 • Press the button. —> The "Station filter" – "PROGRAM" menu is activated. tat i o n f i lt e r The default setting for the station filter is "off". In this menu you define the sta- tions received to be transmitted. If stations are activated the output symbol rate increases.
  • Page 32 —> "Setting the station filter" menu of channel strip "B" Bx 4B PROGRAM – 01/10 Filter ..▶ • Press the button. —> All stations from the channel strip will be read, and then displayed with name and station type. —>...
  • Page 33 • Use the buttons to call up the stations in sequential order, then use to activate (indicated by " + ") or to remove them (" – "). Factory default: All stations are deactivated. • Press the button. • Set the station filters of channel strip "B" and "ASI" in the same way as channel strip "A".
  • Page 34 —> The setting of the channel strips "A" and "B" is identical and follows the description above. • Press the button. —> The "QAM modulation" – "QAM" menu is activated when the channel strips "A" without a CA module installed and "B" are pro- grammed.
  • Page 35 e t t i n g s t u f f i n g Bx 4A STUFFING SR=6900 (6325) Zahl 1 Zahl 2 Number 1 Number 2 SR=6900 (= "Number 1"): Active output symbol rate (6325) (= "Number 2"): The current measured output symbol rate. If the station filter is activated, this value is lower than the value of the "Number 1".
  • Page 36 • Press the button. —> The "Substitute signal in the case of an incorrect input signal" – "FAILURE" menu is activated. u b s t i t u t e s i g n a l t h e C a s e i n C o r r e C t i n P u t s i g n a l...
  • Page 37 —> By pressing the button you return to the hexadecimal number setting. • Press the button. —> The "Network Information Table" – " " menu is activated. (nit) e t wo r k n f o r m at i o n a b l e Bx 4A =>...
  • Page 38 e t wo r k o P e r ato r i d e n t i f i C at i o n In this menu, you can change the network/operator identification (CAT-ID – Conditional Access Table - Identification), for example of the visAvision trans- ponder (Eutelsat 8°...
  • Page 39 Pid e l e t i n g In this menu a PID of the transport stream can be deleted. Bx 4A DROP PID 0x0000 • Use the buttons to place the cursor under the respective digit of the hexadecimal number of the PID to be deleted ("0x0000") and set the hexa- decimal number using •...
  • Page 40 aC to ry r es e t In this menu you can reset all settings to the factory defaults. FACTORY Bx 4 FACTORY ▶ Defaults => STORE => M speichern / store • Press the button. —> The factory defaults are invoked. —>...
  • Page 41 Ca P e r at i o n w i t h m o d u l e In order for this function of the CA module to be possible, stations capable of being descrambled by the CA module you are using and your smart card must be selected in the "Setting the station filter"...
  • Page 42 • Press the button to activate the menu of the CA module. Bx 4A 01/03 MENU Information *) —> The display shows e.g.: Bx 4A 01/03 MENU Information Meaning of the indicators: "Bx 4A" Slot 4, channel strip "A" "01/03" The first of three menu items is activated.
  • Page 43 e t t i n g t h e s tat i o n f i lt e r In this menu you select the stations wished from the encoded data stream, which are to be decoded. Bx 4A TV 04/09 .
  • Page 44 i n a l P r o C e d u r e s After installing the head-end station, upgrading accessories or installing cas- settes it is necessary to tighten all cable connections, cable terminals and cover screws in order to maintain compliance with current EMC regulations securely. •...
  • Page 45 h a n n e l a n d f r e q u e n C y t a b l e s Advice for a frequency grid (8 MHz) in the Band I/III 42.00 82.00 146.00 186.00 226.00 266.00 50.00 114.00...
  • Page 46 Declaration of CE conformity - 46 - PHDQ 1000 ASI D...
  • Page 47 Service: Phone: +49 (0) 911 / 703 2221 Fax: +49 (0) 911 / 703 2326 Email: service@gss.de Alterations reserved. Technical data E. & O.E. © GSS GmbH V31/08052013...
