  5. TANDBERG Television iPlex N20001
  6. Installation manual

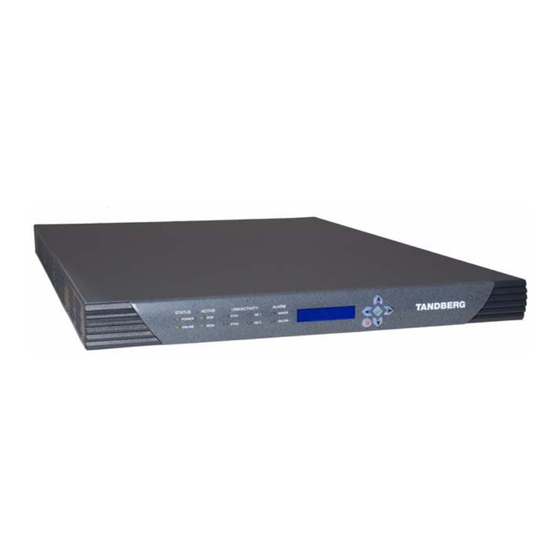

Ericsson TANDBERG Television iPlex N20001 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

112-0113-02 Rev A
INSTALLATION AND HARDWARE
SPECIFICATION GUIDE
iPlex
Software Version 5.0
iPlex
www.tandbergtv.com

Advertisement

Table of Contents
loading

Related Manuals for Ericsson TANDBERG Television iPlex N20001

Summary of Contents for Ericsson TANDBERG Television iPlex N20001

  • Page 1: Cover, Notices, And Disclaimers

    112-0113-02 Rev A INSTALLATION AND HARDWARE SPECIFICATION GUIDE iPlex Software Version 5.0 iPlex www.tandbergtv.com...
  • Page 2 May, 2009 Published By TANDBERG® Television 455 DeGuigne Drive Sunnyvale, CA 94085-3890 Copyright © 1998-2007 by TANDBERG Television. All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means with- out the written permission of the publisher.
  • Page 3 Safety: UL 60950 Third Edition, CSA-C22.2 No. 950-95, EN60950, IEC 950, CB Certificate, AS/ Agency NZ 3260, TS 001, Laser Safety: 21CRF1040 Compliance Emissions: FCC Part 15 Class A, CISPR 22 Class A, EN55022 Class A, AS/NZ 3548 and Cautions Immunity: EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000- 4-11, EN61000-3-2, EN61000-3-3, EN300-386-2 Telcordia: GR-63-CORE, GR-1089-CORE, SR-3580 NEBS Level 3...
  • Page 4 • Dimensions (H x W x D): 23.50 x 17.40 x 1.75 in (59.69 x 44.20 x 4.45 cm) System • Rack Mount: 1 Rack Unit: Standard 19 inch EIA rack Specifications • Weight: 24.5 lbs (11.14 kg) fully-configured • Shipping Weight: 39 lbs. (17.69 kg) •...
  • Page 5 iPlex Model N20001 Product Information Marketing Code Description N011006 ASI Input N011007 ASI Output N011014 ATM OC-3 MM N011031 ATM OC-3 SM N011045 ATM DS-3 N011046 ATN E3 N011032 MPEG-2 SD Encoder N012026 MPEG-4 AVC SD Encoder N012027 MPEG-4 AVC PIP Encoder N012008 MPEG-4 AVC SD UltraCompression Encoder, Composite and SDI input only...
  • Page 6 Directive 2002/95 EC Poly-bromi- Poly-bromi- RoHS nated nated Compliant Hexavalant Mercury biphenyls Cadmium diphenyl ethers Part Name Lead (Pb) Chromium (Hg) (PBB) (PBDE) (Cd) (Cr(VI)) 2002/95 EC RoHS Backplane 1 option card 1 2 option card 2 /keypad /display RoHS ( ) included by the IC manufacturer and exempt in EU RoHS. Indicates that this toxic or hazardous substance contained in all of the homogeneous mate- rials for this part is below the limit requirement in SJ/T11363-2006 Indicates that this toxic or hazardous substance contained in at least one of the homoge-...
  • Page 7 products, the hazardous material content is limited to lead (Pb) in some solders. This is extremely stable in normal use and the EFUP is taken as 50 years, by comparison with the EFUP given for Digital Exchange/Switching Platform in equipment In Appendix A of “General Rule Of Environ- ment-friendly Use Period Of Electronic Information Products.”...

  • Page 9: Table Of Contents

    iPlex Installation and Hardware Specifications Guide Contents Cover, Notices, and Disclaimers ........1 Contents .
  • Page 10 iPlex Installation and Hardware Specifications Guide Front Bezel ............35 Front Bezel LEDs .
  • Page 11 iPlex Installation and Hardware Specifications Guide Dependencies ..........74 Management PC .
  • Page 12 iPlex Installation and Hardware Specifications Guide...

  • Page 13: Chapter 1: Introducing Tandberg Television Iplex

    Chapter 1 Introducing TANDBERG Television iPlex...

  • Page 14: Introducing The Installation & Hardware Specification Guide

    iPlex Installation and Hardware Specification Guide Introducing the Installation & Hardware Specifi- cation Guide Use this guide to help you understand how to install the iPlex hardware and soft- ware. Topics discussed in this guide include: • How to contact technical support. •...

  • Page 15: Contacting Tandberg Television Customer Support

    iPlex Installation and Hardware Specification Guide Contacting TANDBERG Television Customer Support For information on TANDBERG Television support hours and how to contact TANDBERG Television support, please refer to the literature that came with your support contract. To contact TANDBERG Television about the purchase a sup- port contract, please refer to the contact information below.

  • Page 16: Tandberg Television Iplex Overview

    iPlex Installation and Hardware Specification Guide TANDBERG Television iPlex Overview TANDBERG Television’s iPlex is the industry’s smallest form factor and highest density networking device with advanced content manipulation techniques that enable efficient bandwidth-saving delivery of the highest quality video and audio, regardless of the content’s point of origin or format.

  • Page 17: Switch Control Module (Scm) And Media Control Module (Mcm)

    iPlex Installation and Hardware Specification Guide a serial interface console port for local system access to the command line inter- face (CLI), and an alarm port. STA TU AC TIV E POW ER LIN K AC TIV E ONL INE ETH 1 AL AR M GE 1...
  • Page 18 iPlex Installation and Hardware Specification Guide iPlex Submodules The iPlex submodules are mezzanine cards mounted on the carrier card. The fol- lowing submodules are available: • ASI Input: Contains two ASI input ports. • ASI Output: Contains two ASI output ports •...
  • Page 19 iPlex Installation and Hardware Specification Guide - ATM DS3 (44.736 Mb/s) on coaxial cable. - ATM E3 (34.368 Mb/s) on coaxial cable. All ATM interfaces are capable of classical IP over ATM (CIP), RFC 2684 bridge mode, and native ATM over AAL-5 operation, all in PVC mode. The OC-3 interfaces support the full VPI/VCI range of 0-255/0-4095 and offer traffic shaping features;...
  • Page 20 iPlex Installation and Hardware Specification Guide signals, the 37-pin micro-D connector allows for up to four stereo pairs, with an option clock output for synchronization. The remaining channels are only avail- able as embedded audio in the HD or SD Encoders. NOTE The audio cables used in the MPEG-2 Encoder Plus and in the MPEG-4 AVC Encoder are compatible with this module.
  • Page 21 iPlex Installation and Hardware Specification Guide R e al - Ti m e MP E G- 4 AV C U l t r a c om p r e s si o n ( S i n gl e - s l o t ) Transcoder In addition to the dual-slot MPEG-4 AVC Ultracompression Transcoder described above, there is a single-slot MPEG-4 AVC Ultracompression Transcoder...

  • Page 22: Installation And Management Overview

    iPlex Installation and Hardware Specification Guide Installation and Management Overview This section provides an overview of the iPlex installation and management. Install the iPlex Hardware 1 Unpack the unit from its shipping container. 2 Rack-mount the unit. 3 Install the submodules and components. This step is not necessary for the initial purchase because the iPlex hardware is shipped with all of the submodules and components installed.
  • Page 23 iPlex Installation and Hardware Specification Guide • CLI: serial port, telnet, or SSH (secure) Refer to the Command Line Interface Reference Guide for detailed information. • SNMP: v2 or v3 (secure) Refer to the Network Management & Monitoring Reference Guide for detailed information.
  • Page 24 iPlex Installation and Hardware Specification Guide...

  • Page 25: Chapter 2: Hardware Specification And Installation

    Chapter 2 Hardware Specification and Installation...

  • Page 26: Hardware

    iPlex Installation and Hardware Specification Guide Hardware This chapter outlines TANDBERG Television’s iPlex hardware specifications and component installation instructions. iPlex Specifications Mechanical Dimensions (HxWxD): 23.50 x 17.40 x 1.75 inches (59.69 x 44.20 x 4.45 cm) Rack Mount: 1 Rack Units: Standard 19 inch EIA rack Weight: 24.5 lbs.

  • Page 27: Unpacking The Iplex Chassis

    iPlex Installation and Hardware Specification Guide • Equipment installed in accordance with local earthquake guidelines, with the rack or cabinet configured to have a low center of gravity Unpacking the iPlex Chassis Do not unpack the iPlex until you are ready to install the equipment. Keep the chassis in the shipping container if the site installation is not ready.

  • Page 28: Installing The Iplex Chassis

    iPlex Installation and Hardware Specification Guide 2 Confirm the contents of the accessory kit have been received, as follows: 6 foot AC Power cord ■ 19" Rack Mounting brackets and chassis mounting screws ■ iPlex CD ROM package ■ iPlex Quick Start Guide ■...
  • Page 29 iPlex Installation and Hardware Specification Guide To attach the chassis in a rack with the front panel in the forward position, attach the brackets as shown in the figure below. STA TUS ACT IVE POW ER LIN K ACT ONL INE ETH 1 ALA RM GE 1...
  • Page 30 iPlex Installation and Hardware Specification Guide • To attach a mid-mounted chassis, attach the rack-mount screws as shown in the figure below. STA TUS AC TIV E POW ER LIN K AC TIV E ONL INE ETH 1 ALA RM GE 1 MAJ OR ETH 2...

  • Page 31: Dc Power And Grounding Requirements

    iPlex Installation and Hardware Specification Guide ATTENTION! It is important to maintain proper air circulation through the iPlex chassis. Failure to maintain proper air flow and adequate air space can cause the iPlex to overheat and fail. Since the iPlex airflow is from side-to-side it is recommended that you maintain a minimum 6- inch (15 cm) clearance on both sides between the chassis air intake and air exhaust on the sides and a cabinet wall or other barrier.

  • Page 32: Grounding The Chassis

    iPlex Installation and Hardware Specification Guide The power sources must be correctly grounded and the power connections must comply with the specifications listed in the following table. Power Setup Requirements Power The iPlex has a maximum power dissipation of 300 Watts. The total power required per system depends on the number of packs installed and the services delivered.

  • Page 33: Attaching Power Cables To The Chassis

    iPlex Installation and Hardware Specification Guide Attaching Power Cables to the WARNING: DANGER! Chassis Before connecting cables to the power terminal block, verify they are not connected to a live power source and follow local practices for electrical safety. To attach the power cables, do the following: 1 1.
  • Page 34 iPlex Installation and Hardware Specification Guide DC Power Receptacle on Chassis 7 Ensure that the power cables are correctly paired and tighten the terminal screws. 8 Following local practices, test for foreign voltage, continuity, and polarity at the terminal block and across the power cabling (should be zero). 9 Label the power wires with + and –.

  • Page 35: Iplex Chassis Basic Components

    iPlex Installation and Hardware Specification Guide iPlex Chassis Basic Components The basic components of the TANDBERG Television iPlex chassis are shown in the illustrations as follows. Front Bezel The iPlex front bezel consists of an LCD display and keypad for entering machine ID and IP addresses, and a series of LEDs that display system status.

  • Page 36: Rear Panel

    iPlex Installation and Hardware Specification Guide There are four directional cursor buttons, an Enter button (green check mark), and a cancel button (red ‘x’). The buttons function as follows: • Up/Down In the menu screen, these buttons are used to move the cursor to different menu items.

  • Page 37: Alarm Pinouts

    iPlex Installation and Hardware Specification Guide Alarm Pinouts The following table provides the pin assignments for the Alarm Port Connector. Pin No. Connection TANDBERG Television debug use – leave open Critical Alarm output—normally open Critical Alarm output—common Status input 1—anode Status input 1—cathode TANDBERG Television debug use –...

  • Page 38: Chassis Submodules And Components

    iPlex Installation and Hardware Specification Guide Chassis Submodules and Components The sections that follow describe in detail the physical and functional features of the submodules that can be installed in the iPlex. ASI Input/Output Submodules ASI (Asynchronous Serial The ASI Input/Output submodule components seen from the front are as fol- Interface) One of DVB’s physical lows: BNC, and activity LEDs.

  • Page 39: Asiout Submodule

    iPlex Installation and Hardware Specification Guide Indicators RDY—Ready Green LED ACT—Active Green LED State Power Off LED test for approximately 8 seconds, following power up and board configu- ration. ASI In Port disabled Flash- ASI In Port enabled, no ASI In traffic ASI In Port enabled, ASI In traffic Flash rate proportional to MPEG TS packet rate...

  • Page 40: Mpeg Encoders

    iPlex Installation and Hardware Specification Guide State Power Off LED test for approximately 8 seconds, following power up and board configu- ration. ASI Out Port disabled Flash- ASI Out Port enabled, no ASI Out traf- ASI Out Port enabled, ASI Out traffic Flash rate proportional to MPEG TS packet rate MPEG Encoders...
  • Page 41 iPlex Installation and Hardware Specification Guide The RTME Plus components seen from the front are as follows: Audio Connec- tor, S-Video In (chrominance “C”) or Composite Video In (V2), activity LEDs TIP The Advanced Encoder can (ready and active), and S-Video In (luminance “L”) or Composite Video In (V1) or be distinguished from the RTME Plus by the presence of green SDI.

  • Page 42: Real-Time Mpeg-4 Avc Encoder

    iPlex Installation and Hardware Specification Guide Indicators RDY—Ready Green LED ACT—Active Green LED State Power Off or Not Initialized MPEG Encoder enabled, no video present on selected input: C2/C or C1/Y/SDI MPEG Encoder enabled, video present on selected Flashes input: C2/C or C1/Y/SDI Real-Time The Real-Time MPEG-4 AVC Encoder submodule supports two channels of audio.

  • Page 43: Real-Time Mpeg-4 Avc Ultracompression Encoder

    iPlex Installation and Hardware Specification Guide Specifications Mechanical Height: 0.509 inches Width: 2.913 inches Depth: 5.866 inches Connectors: 37 Pin Micro-D Connector, BNC Indicators RDY—Ready Green LED ACT—Active Green LED State Power Off or Not Initialized MPEG Encoder enabled, no video present on selected input: C2/C or C1/Y/SDI MPEG Encoder enabled, video present on selected Flashes...
  • Page 44 iPlex Installation and Hardware Specification Guide HD Interface The HD interface option provides one BNC for uncompressed digital video input, with support for both HD-SDI and SD-SDI, as well as the audio interface (see the illustration). The upper part of the front view is a blank-face panel. Specifications Mechanical Height:...
  • Page 45 iPlex Installation and Hardware Specification Guide Indicators RDY—Ready Green LED ACT—Active Green LED State Power Off or Not Initialized MPEG Encoder enabled, no video present on selected input. MPEG Encoder enabled, video present on selected Flashes input. • SD Interface The SD interface option provides two BNCs for uncompressed analog or digital video input.
  • Page 46 iPlex Installation and Hardware Specification Guide Specifications Mechanical Height: 0.509 inches Width: 5.865 inches Depth: 6.015 inches Connectors: 37 Pin Micro-D Connector, BNC Indicators RDY—Ready Green LED ACT—Active Green LED State Power Off or Not Initialized MPEG Encoder enabled, no video present on selected input.

  • Page 47: Real-Time Mpeg-4 Avc Ultracompression Single-Slot Encoders

    iPlex Installation and Hardware Specification Guide Real-Time In addition to the dual-slot MPEG-4 AVC Ultracompression Encoders described above, there are single-slot MPEG-4 AVC Ultracompression Encoders which fit in MPEG-4 AVC a single PMC slot. The advantages for a single-slot encoder are: Ultracompression •...
  • Page 48 iPlex Installation and Hardware Specification Guide SD Single-slot The Single-slot SD encoder option provides two BNCs for uncompressed analog or digital video input. These two BNCs can be configured in software to be two Encoder composite inputs, one S-Video input, or one SDI input. The SD encoder also includes the audio interface, which is identical to that of the HD encoder.

  • Page 49: Atm Cards

    iPlex Installation and Hardware Specification Guide ATM Cards ATM OC-3/STM-1 The ATM OC-3/STM-1 adapter is available in both multi-mode and single-mode formats. The components seen from the front are as follows: LINE activity LED and STATUS activity LED, receive and transmit SC duplex connector. OC-3/STM-1 Single-mode OC-3/STM-1...

  • Page 50: Atm Ds3/E3

    iPlex Installation and Hardware Specification Guide Specifications Mechanical ATM (Asynchronous Transfer Height: 0.509 inches Mode) A network technology for Width: 2.913 inches both local and wide area networks (LANs and WANs) that Depth: 5.866 inches supports real-time voice and Multi-mode Connector: SC duplex, multi-mode fiber, 62.5/125 micron video as well as data.
  • Page 51 iPlex Installation and Hardware Specification Guide ATM/E3 STATUS LINK ATM E3 ATM/DS3 BNC Connectors for audio, video, or networking STATUS Activity LEDs LINK Specifications Mechanical Height: 0.509 inches Width: 2.913 inches Depth: 5.866 inches Connectors: 37 Pin Micro-D Connector, BNC Indicators LINK—Link Up Green LED STATUS—Active Green LED...

  • Page 52: Dsp Submodules

    iPlex Installation and Hardware Specification Guide DSP Submodules Media Processor The Media Processor, or DSP 4PAC submodule is a high performance, program- mable platform for the video headend platform. Software is licensable from (DSP 4PAC) TANDBERG Television to give the Media Processor a wide range of functionality, Submodule including MPEG-2 to MPEG-4 AVC Transcoding.

  • Page 53: Dsp 6-Pac Transrating Submodule

    iPlex Installation and Hardware Specification Guide DSP 6-PAC The DSP 6-PAC Transrating Submodule provides the per stream video processing capability needed for rate shaping and rate reduction. Each DSP 6PACsubmodule Transrating provides transrating capability for up to six individual video programs: each 6PAC Submodule hosts 6 transrator input ports and 6 transrator output ports.
  • Page 54 iPlex Installation and Hardware Specification Guide The PIP video PID is by default 0x201. If this PID already exists in the input pro- gram, a unique PID is generated for the PIP video stream. Unique PID values are also dynamically generated for any audio channels that are replicated and transcoded.

  • Page 55: Mpeg-4 Avc Ultracompression Single-Slot Transcoder

    iPlex Installation and Hardware Specification Guide Indicators RDY—Ready Green LED ACT—Active Green LED State Power Off or Not Initialized MPEG Encoder enabled, no video present on selected input. MPEG Encoder enabled, video present on selected Flashes input. MPEG-4 AVC In addition to the dual-slot MPEG-4 AVC Ultracompression Transcoder described above, there is a single-slot MPEG-4 AVC Ultracompression Transcoder Ultracompression which fits in a single PMC slot.

  • Page 56: Small Form Factor Pluggable Modules

    iPlex Installation and Hardware Specification Guide Indicators RDY—Ready Green LED ACT—Active Green LED State Power Off or Not Initialized MPEG Encoder enabled, no video present on selected input. MPEG Encoder enabled, video present on selected Flashes input. Small Form Factor Pluggable Modules GE MMF and SMF Small Form Factor Pluggable (SFP) optical transceivers are used by the iPlex to provide optical connections to the network.

  • Page 57: Ge Copper Cable Sfp Module

    iPlex Installation and Hardware Specification Guide GE Copper Cable Small Form Factor Pluggable (SFP) 1000BASE-T copper transceivers are used by the iPlex to provide electrical connections to the network. The 1000BASE-T SFP SFP Module transceiver uses an RJ-45 connector with CAT-5, 5e, or 6 UTP/FTP cable to pro- vide 1000BASE-T full-duplex connectivity between modules and the network up to a distance of 328 feet (100 m).
  • Page 58 iPlex Installation and Hardware Specification Guide • Unshielded twisted pair, CAT-5e or CAT-6 cable with RJ-45 connector • 10/100 Ethernet Unshielded twisted pair, CAT-5 cable with RJ-45 connector Cables • Console Cables Serial null modem cable with DB-9 female connector...

  • Page 59: Installing Hardware

    iPlex Installation and Hardware Specification Guide Installing Hardware Before installing any TANDBERG Television part into the iPlex, visually inspect it for damage that might have occurred during shipment. If you find any omissions or damage, contact the supplier and the carrier that delivered the package. NOTE Regulatory statements and conditions for this product are in the front of this user guide.

  • Page 60: Installing A Submodule Into The Carrier Card

    iPlex Installation and Hardware Specification Guide NOTE You must properly ground yourself when installing or removing iPlex modules. Wear an anti-static wrist-strap and do not touch any com- ponents inside the iPlex chassis, as static electricity may cause irre- versible damage. Installing a Submodule into the Carrier Card To install a submodule, first attach a grounding strap to your wrist.
  • Page 61 iPlex Installation and Hardware Specification Guide 2 In the applicable slot, holding the submodule at an angle with the back toward you, insert the front plate through the slot and carefully align the dual-mating connectors on the carrier card. 3 Align the standoff posts with the matching holes on the carrier card and carefully press the submodule in place.

  • Page 62: Installing A Carrier Card

    iPlex Installation and Hardware Specification Guide 4 Fasten the submodule to the carrier card from the back with four screws. NOTE The submodules in PMC slots 1 to 4 use a countersunk head screw under the ejector pivot points. 5 Reinstall the carrier card in the iPlex chassis. To install a blank plate: If you have an open submodule slot in the carrier card, you must fill it with a blank plate.
  • Page 63 iPlex Installation and Hardware Specification Guide To install a carrier card in an iPlex chassis: 1 Orient the carrier card with the PMC modules facing down. Rest the carrier card leading edges on the alignment tabs in front of the left and right card guides.
  • Page 64 iPlex Installation and Hardware Specification Guide 3 Making certain the card ejectors are rotated to their open position slid the carrier card until it engages with the backplane connectors. 4 With the carrier card engaged with the backplane connectors, rotate the ejectors into the closed position.

  • Page 65: Checking Proper Seating Of Carrier Card

    iPlex Installation and Hardware Specification Guide Checking Proper Seating of Carrier Card WARNING The carrier card is NOT hot swappable. Do not remove or install the carrier card while the iPlex chassis has power or damage may occur. If the carrier card seating is correct, the MCM Active LED will flash orange shortly (<...

  • Page 66: Troubleshooting Submodule Installation

    iPlex Installation and Hardware Specification Guide You may tighten with your fingers or by using a Phillips #1 screw driver. CO NSO 100 /240 VAC~ 6A RED UND ANC Y ALA RM CO NTR Troubleshooting Submodule Installation If a submodule does not respond after inserting it into the carrier card, check the following.

  • Page 67: Installing The Ge Sfp Module

    iPlex Installation and Hardware Specification Guide Installing the GE SFP Module To install the GE SFP module: 1 Orient the SFP module with the module edge connector in the down position. C O N S O 10 0/ 24 0 VA C~ 6A R ED U N D AN C Y...

  • Page 68: Removing A Ge Sfp Module

    iPlex Installation and Hardware Specification Guide Removing a GE SFP Module To remove a GE SFP module: 1 Remove the cable 2 Unlock the bail lock C O N S O 10 0/ 24 0 VA C~ 6A R ED U N D AN C Y G E 1 A LA R M...
  • Page 69 iPlex Installation and Hardware Specification Guide WARNING Battery replacement should be performed by a Customer Service trained technician. Disposal of Batteries WARNING Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
  • Page 70 iPlex Installation and Hardware Specification Guide 3 Locate the battery on the system board. CO NSO 100 /240 VAC~ 6A RED UND ANC Y ALA RM CO NTR 4 Remove the battery from its socket. 5 Dispose of the battery according to local ordinances.
  • Page 71 iPlex Installation and Hardware Specification Guide 6 Remove the new battery from its package, and observe the correct polarity; insert it in the battery socket. 7 Replace the cover on the chassis.
  • Page 72 iPlex Installation and Hardware Specification Guide...

  • Page 73: Chapter 3: Control Station Setup

    Chapter 3 Control Station Setup...

  • Page 74: Setting Up The Iplex Control Station

    iPlex Installation and Hardware Specification Guide Setting Up the iPlex Control Station This chapter will guide you through the steps necessary to set up the Tandberg iPlex control station. Dependencies Before you start to set up the iPlex, make sure that you have the following items: •...
  • Page 75 iPlex Installation and Hardware Specification Guide UP key LEFT key RIGHT CANCEL key ENTER DOWN key LCD display iPlex Front Panel Controls When the front panel is not in menu mode, LCD displays a welcome screen. By default, it displays host name with iPlex software version on the center of first line and IP address on second line.
  • Page 76 iPlex Installation and Hardware Specification Guide Main Menu Choices Press any key but CANCEL at the welcome screen to enter menu mode. When you first enter menu mode, the first line shows the menu title and the second line displays the first menu item. i P l e x m e n u 1 .
  • Page 77 iPlex Installation and Hardware Specification Guide Submenu of “Date and time” menu Even many NTP servers are allowed via web interface, only one NTP server is dis- played and can be edited via front panel interface. 2 . D a t e a n d t i m e 1 .
  • Page 78 iPlex Installation and Hardware Specification Guide Editing the Data When a menu item requires an input from you, the prompt message is displayed on the first line and a '>' character is displayed on the first column of the second Entry Fields line to note that it is the beginning of the data entry field.
  • Page 79 iPlex Installation and Hardware Specification Guide • The 'Clear all' command empties the string. If the cancel key is pressed for a second, the extended cancel key is generated. It is same as the 'Clear all' command. Date Field The date field is comprised of three number fields; month, day and year. The cursor should be placed at the end of each field.

  • Page 80: Reconfiguration Of The Iplex Using The Serial Port

    iPlex Installation and Hardware Specification Guide R e t y p e p a s s w o r d : [ M i s m a t c h ] The CANCEL key doesn't abort the procedure; rather, it brings you to the previ- ous step.
  • Page 81 iPlex Installation and Hardware Specification Guide The initial steps of installation are as follows: • Give the SCM an IP address • Setup the root password • Enable the boot image • Set date and time At Choose an option: Type “1” and press Enter. Type the IP Enter the IP address for the board <192.168.4.41>...
  • Page 82 iPlex Installation and Hardware Specification Guide Option 10 Go to boot from prompt gives you debugging commands. Choose an option: Type “10” and the following prompt will appear. SCM<bootrom>-> Type “help” <CR> help - print online help reset - perform RESET of the CPU bootm - boot application image from memory setenv...

  • Page 83: Iplex Login

    iPlex Installation and Hardware Specification Guide iPlex Login Accessing the Tandberg iPlex happens in one of two ways. You can use the com- mand-line interface (CLI) through HyperTerminal or telnet via the Ethernet inter- face or the iPlex Management Console. The following sections walk you through the logon processes for the CLI and iPlex Management Console (MPMC).

  • Page 84: Iplex Management Console (Ipmc)

    iPlex Installation and Hardware Specification Guide Passwords set by the administrator are as follows: User Name Password Access Rights root Full administrative rights administrator All rights except Add/ Delete users operator Can only view The iPlex allows you to change these default passwords and/or create new logins into the system from Maintenance.

  • Page 85: Menu Links

    iPlex Installation and Hardware Specification Guide cursor changes to a hand, a click will display the statistics page for that component. To view the home page completely, it is necessary to set your monitor resolution to 1280 x 1024. However, the screen is more readable at lower resolutions. Menu Links On the left side of the iPlex home page are five links that give you access to the following pages: Home, Statistics, Configuration, Maintenance, and Diagnostics.

  • Page 86: Configure An Existing Asi In Port As Dvb

    iPlex Installation and Hardware Specification Guide Configure an To see program name information on an incoming Transport Stream, click Ports > ASI In and then the particular ASI In port you want to configure. Select Existing ASI In DVB from the Input Stream Type, enable SDT and NIT, then click the Apply Port as DVB button.

  • Page 87: Creating A Vlan

    iPlex Installation and Hardware Specification Guide Creating a VLAN The VLAN Configuration page allows you to configure a VLAN Setup. After entering values, use the Add button to create a new route or use the Delete button in conjunction with the Delete check box to remove entries. After completing the configuration, click the Apply button.
  • Page 88 iPlex Installation and Hardware Specification Guide...

  • Page 89: Appendix A: Connecting Iplex To The Internet: Firewall Issues

    Appendix A Connecting iPlex to the Internet: Firewall Issues...

  • Page 90: Internet Security Concerns

    iPlex Installation and Hardware Specification Guide Internet Security Concerns The possible risks when a iPlex (or any equipment from any vendor, for that mat- ter) connects directly to the Internet: • Unauthorized access (break-in): unauthorized individuals can take control of the device, modify its configuration, bring it down, etc.

  • Page 91: Denial-Of-Service (Dos)

    iPlex Installation and Hardware Specification Guide NOTE TANDBERG Television generally makes the MIB available only iPlex to customers and prospective customers. However, for security pur- poses, one should not rely on that. Users are strongly urged to use secure community strings for SNMP access. In addition to the measures described in this section, users are strongly urged to deploy firewalls or configure their networks to prevent access from unauthorized third parties.

  • Page 92: Option 1: Isolated Network

    iPlex Installation and Hardware Specification Guide Option 1: Isolated This option is depicted in diagram that follows. The iPlex control port is con- nected to an isolated private network. Network One (or more) control PCs with web browsers, telnet/SSH clients and/or SNMP managers is connected to this isolated private network.

  • Page 93: Option 3: Dmz Port Of A Firewall With Public Addressing

    iPlex Installation and Hardware Specification Guide If access to the iPlex from the Internet is desired, it is a simple matter of configur- ing the NAT Firewall to forward the appropriate ports: • TCP port 80 for Web • TCP port 443 for HTTPS •...

  • Page 94: Conclusion

    iPlex Installation and Hardware Specification Guide NOTE It is strongly recommended that the firewall only allow access to the SSH and HTTPS ports. This option is very similar to the one depicted in the second diagram, but without the need of address translation. It also has the same disadvantages, and the firewall must be configured with an access list of allowed IP addresses, or there is no point in having a firewall at all.

  • Page 95: Index

    iPlex Installation and Hardware Specifications Guide Index warranty and non-Tandberg parts 59 AC and DC power outlets 26 chassis 16 AC power outlet installation requirements 26 AC power outlet requirements 26 Advanced Encoder 42 basic components 35 alarm pinouts 37 home page 84 installation instructions 28 indicators 39...
  • Page 96 iPlex Installation and Hardware Specifications Guide conclusion 94 MPEG-4 AVC Ultracompression Single-slot connected private network 92 Transcoder 55 DMZ port of a firewall with public ad- MPEG-4 AVC Ultracompression Transcod- dressing 93 er 53 isolated network 92 MTRJ cables 57 firewall overview 90 NEBS compliancy 16 home page 84...
  • Page 97 iPlex Installation and Hardware Specifications Guide firewall options 91 types 90 unauthorized access 90 serial null modem cable 58 statistics 85 submodule installation 60 blank plates 62 tech support contact info 15 tech support pre-call checklist 15 DSP video processing submodules 20, types of security risks 90 unauthorized access 90 unpacking packaging 27...
  • Page 98 iPlex Installation and Hardware Specifications Guide Beta Beta...
