Electrical connection
(circular plug-in connector)
Pilot air port
(label: 1)
Exhaust air port
(label: 3)
transparent cap removed:
LED 2
LED 1
Communications
interface
Pressure limiting valve
(for protection against
too high internal pressure
in case of error)

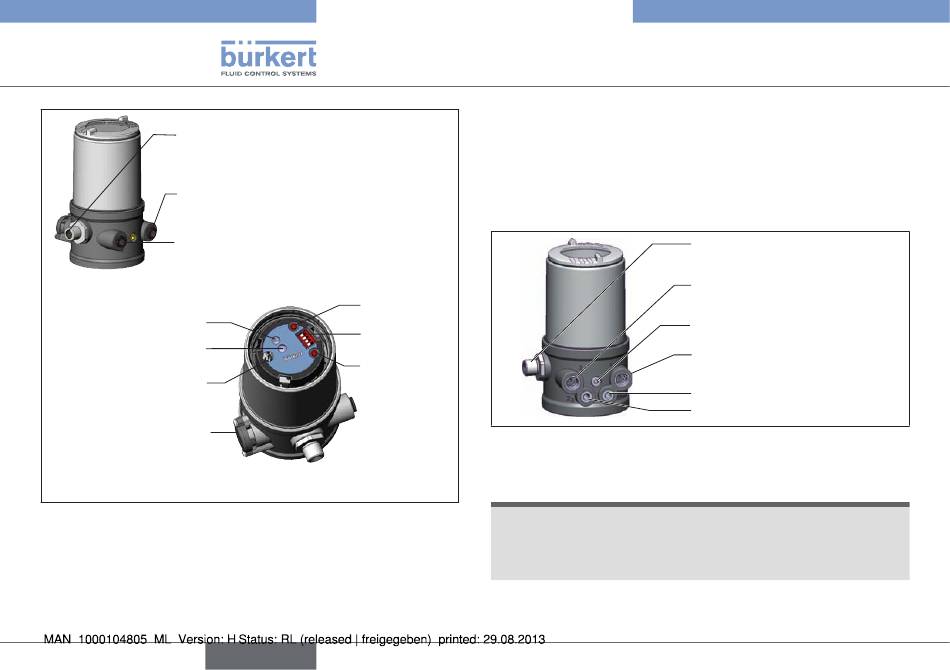

Fig. 2: Structure 2
The position of the actuator is regulated according to the position
set-point value. The nominal position value is specified by an external
standard signal.
8
Key 1
DIP Switches
Key 2
english
Type 8696
System description
5.2. model for control of third-party
devices
A special model enables the positioner Type 8696 to be attached to
third-party devices.
This model has a different pneumatic connection module so that the
pilot air ports can be connected to the outside of the actuator.
Fig. 3: Model for third-party devices
note!
damage or malfunction due to ingress of dirt and moisture!
• To comply with protection class IP65 / IP67, connect the pilot
air outlet (only for CFA or CFB) which is not required to the free
pilot air port of the third-party device or seal with a plug.
Electrical connection
(circular plug-in connector)
Exhaust air port
(label: 3)
Fastening screws (2 x)
Pilot air port
(label: 1)
Pilot air outlet 2
1
Pilot air outlet 2
2
